Replacing the Platen Roller
430

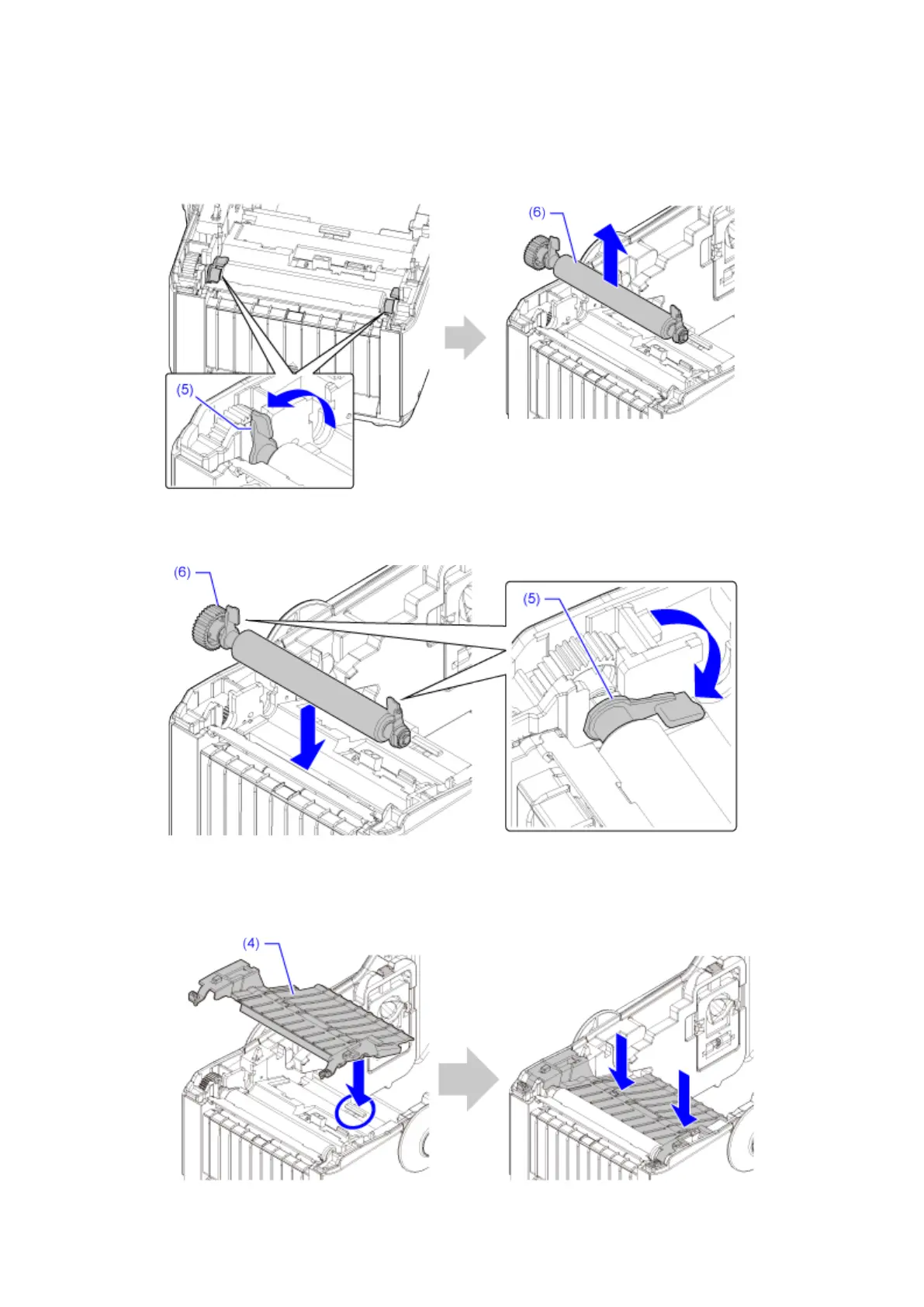

5. Turn the two levers (5) of the platen roller (6) to the front to remove the platen
roller.
6. Install a new platen roller (6) and turn the two levers (5) toward the back.
7. Align the tab on the back of the inner cover (4) with the printer's slots and press it
in until it clicks.
