Installing the Optional Wall Mount Kit
94

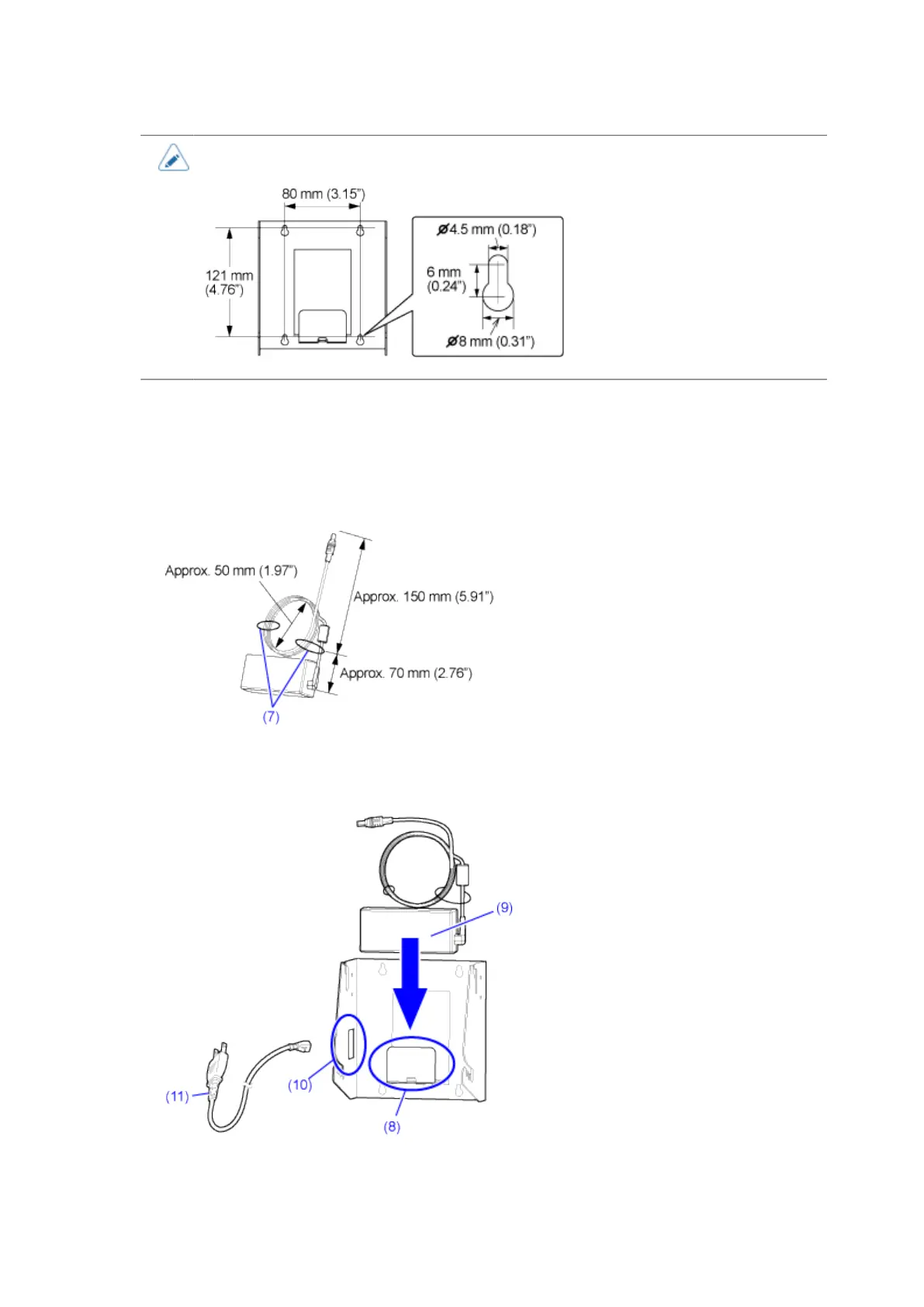

• Dimensions of the bracket mounting holes are as follows:
3. Attach the AC adapter to the mount bracket.
a. Wind the AC adapter cable in a circle with a diameter of about 50 mm (1.97").
b. Adjust the remaining length of the AC adapter cable to about 150 mm (5.91").
c. Bind the cable at two points (7) with cable straps.
d. Place the AC adapter (9) on the adapter holder (8).
e. Insert the AC cable (11) from the opening (10) and connect the AC cable to the AC adapter.
