Stress Echo
8-14 ACUSON Cypress™ Operator’s Manual
3. Complete the patient data and select an option from the Protocol drop-down
menu. (Note that the Contrast protocol is available when the Advanced Trig-
gering option is installed.) Then press the
2D key to display the following
screen.

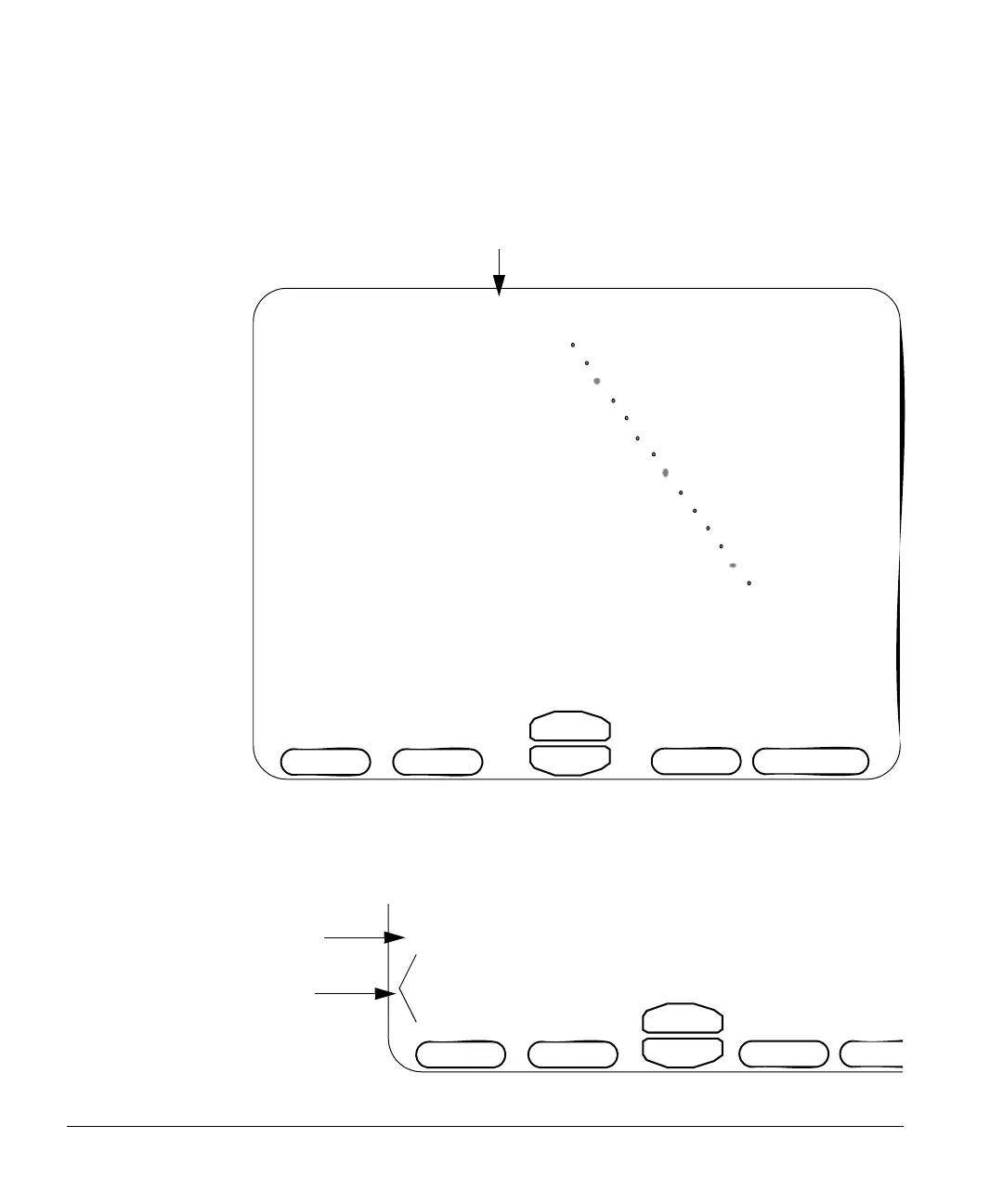

4. Turn the PROTOCOL Soft Window knob to display the Stage and View
labels. Continue turning the knob until either Rest (for 2-Stage and 3-Stage)
or Base (for Pharmacological) is highlighted. The following yellow text will
appear in the lower left portion of the screen, just above the
PROTOCOL soft
window.
MAKE SURE THAT THE CORRECT PROTOCOL NAME IS
DISPLAYED AT THE TOP OF THE 2D SECTOR
Depth
Frequency
Protocol
Gain
Compress
Apex Invert*
3V2c PA Pwr M
MI 0.9 TIs 0.1
Compress 2
GN 5/ /
00fps 16.2cm
Harmonic
2 Stage Exercise
Impost
00:19
Depth
Frequency
Protocol
Apex I
Rest
LAX 0
SAX 0
AP4 0
AP2 0
ACTIVE
STAGE
VIEW
COUNTER
Gain
Compress
