SINUMERIK operating mode
6.2 Networking
ITC V3, ITC V3 PRO
Operating Instructions, 03/2024, A5E42761061-AF
145
• To ensure that the ITC recognizes the new switchover target, the ITC must be restarted
and run up.
• The screen resolution of the observed computer must be adjusted to the conditions of the
ITC. Otherwise the ITC will scale the image that it receives to the display area that it can
manage, resulting in suboptimal display.

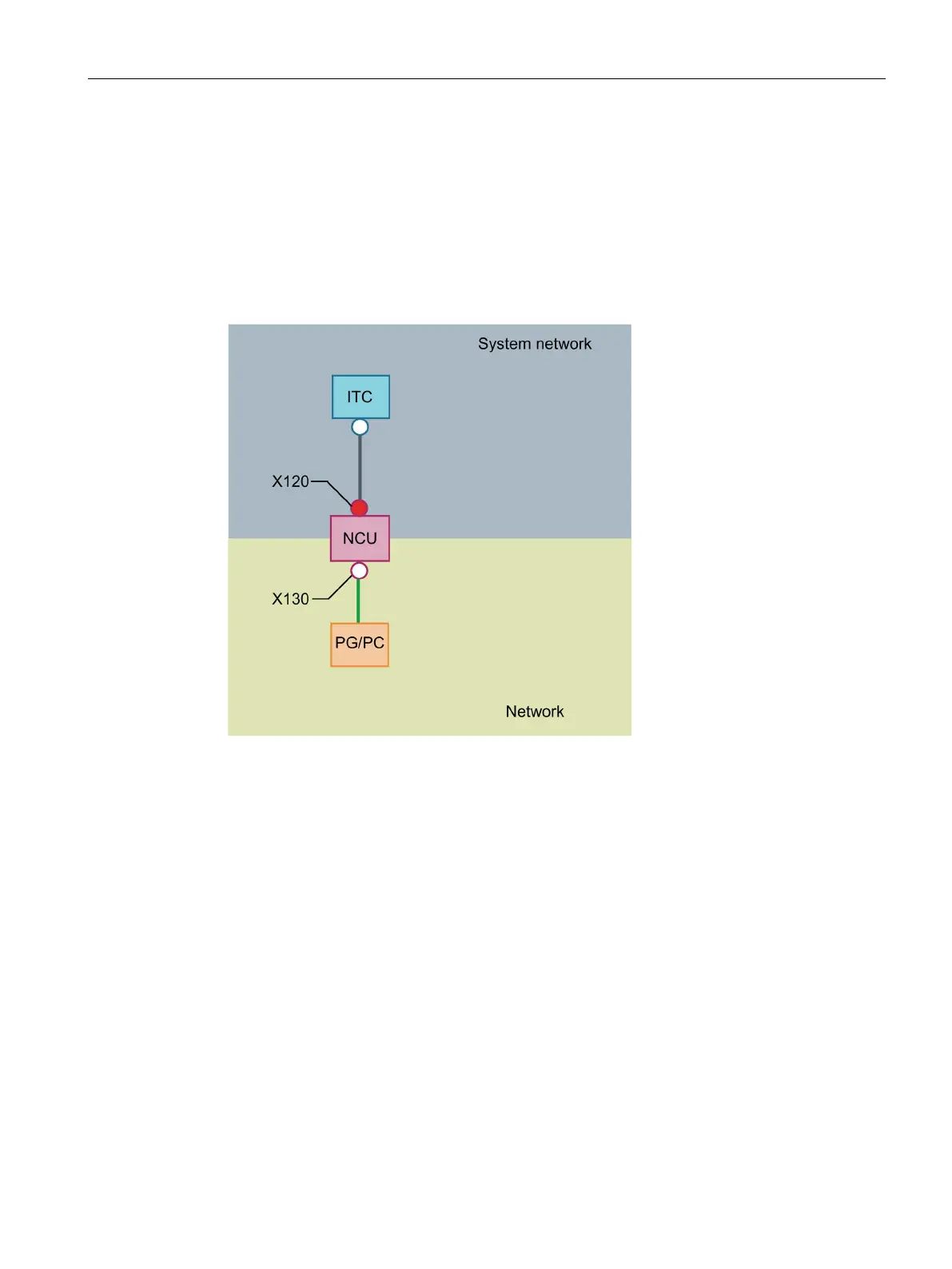

Configuration example
Configuration
The config.ini file is located in the following directory:
NCU:
/user/common/tcu/<ITC name>/common/tcu
IPC (Windows 7 and Windows 10):
C:\ProgramData\Siemens\MotionControl\user\common\tcu\<ITC
name>\common\tcu
The config.ini file must be stored on the boot server (active DHCP).
