Overview
1.3 Layout of the devices
ITC V3, ITC V3 PRO
Operating Instructions, 03/2024, A5E42761061-AF
21

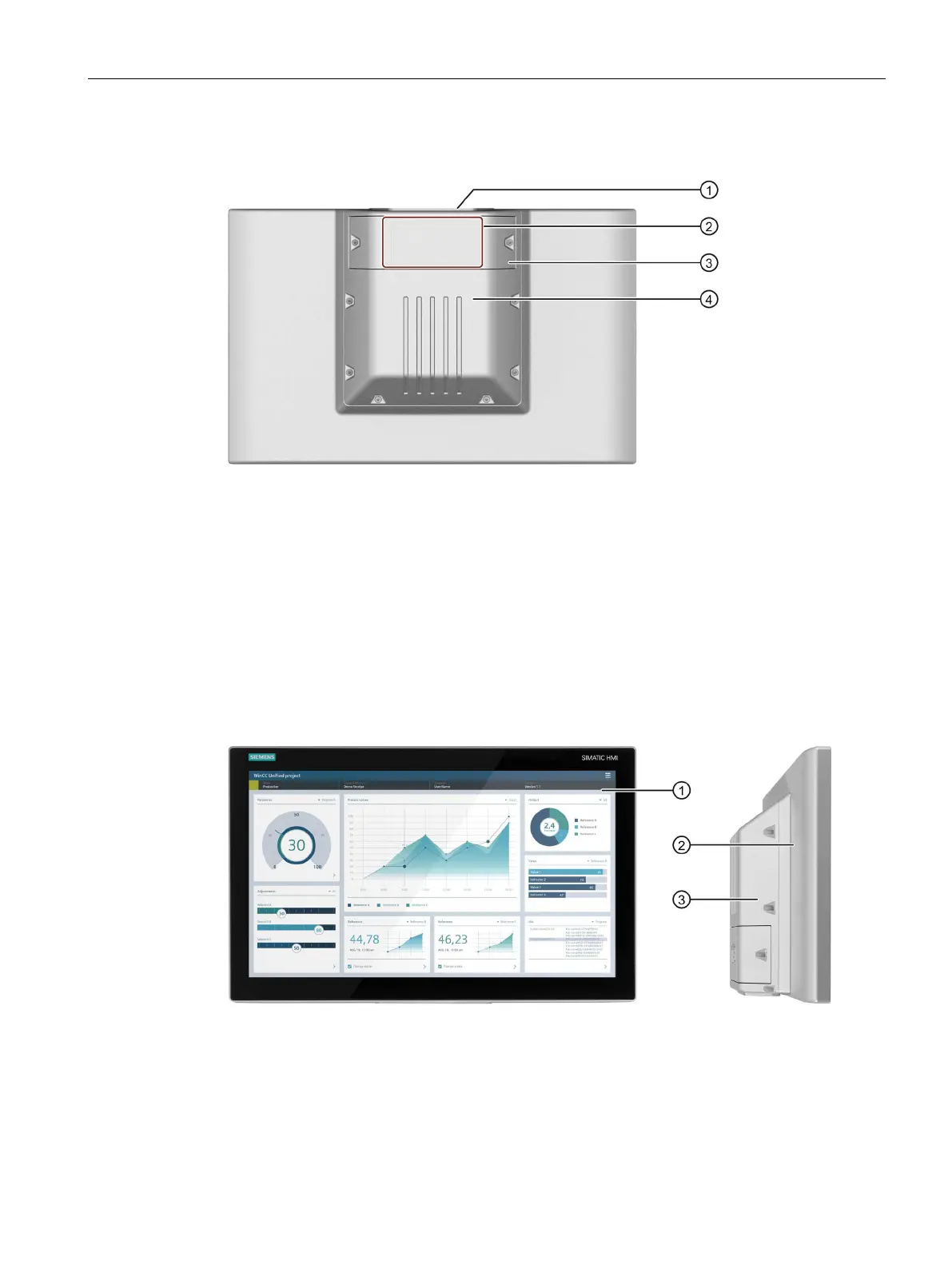

Rear view
①
Mechanical interface for fastening
②
Rating plate
③
Terminal compartment cover
④
Backplane cover
1.3.2.3 PRO devices for pedestal (extendable, flange bottom)
The following figures show the structure of the devices using the example of the
ITC2200 V3 PRO for pedestal (extendable, flange bottom) with Siemens logo.
Front view and side view
①
Display with touch screen
②
Enclosure
③
Backplane cover
