1.3.2.4 PRO devices for support arm (extendable, round tube)

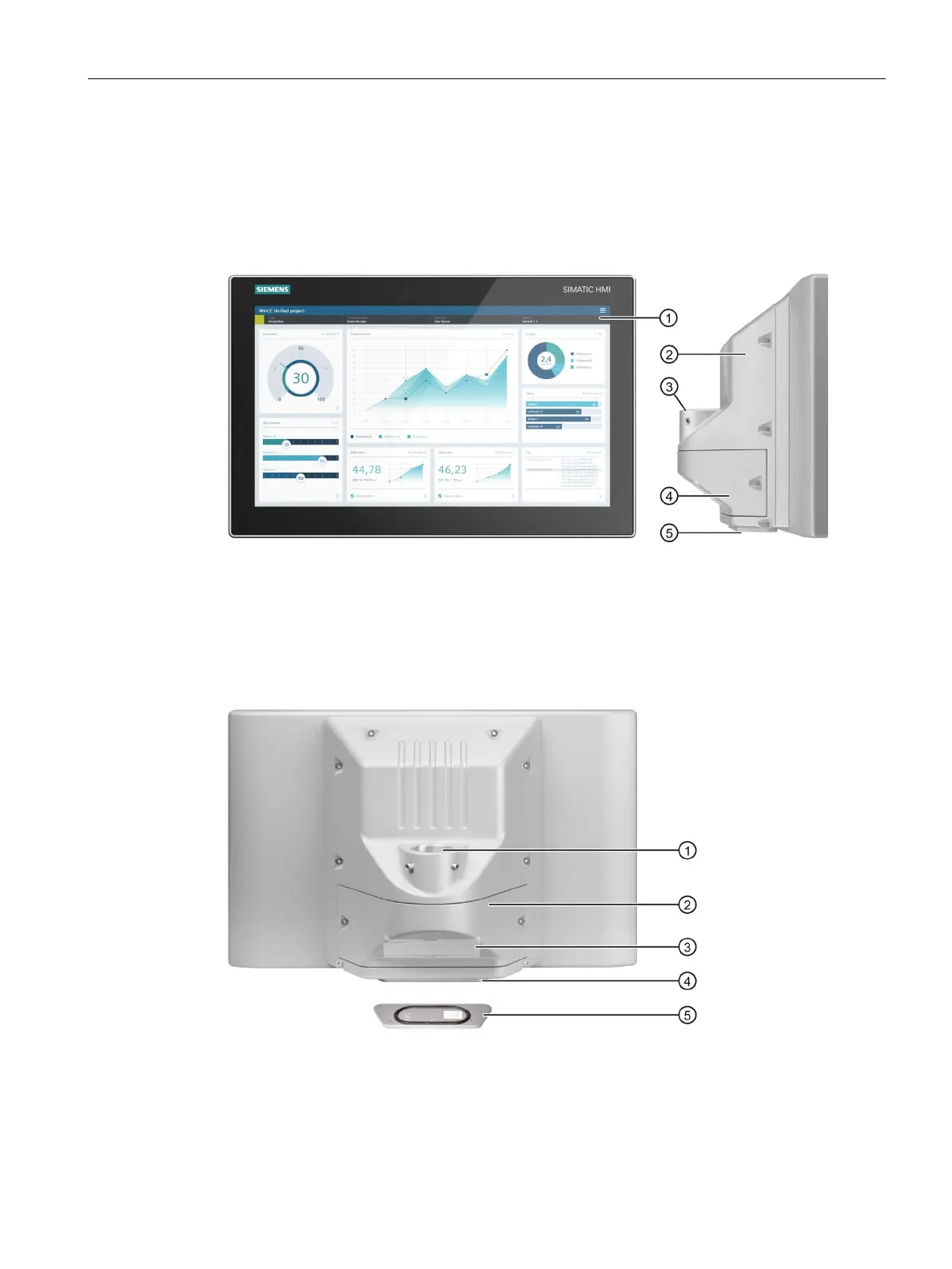

The following figures show the structure of the devices using the example of the
ITC1500 V3 PRO for support arm (extendable, round tube) with Siemens logo.
Front view and side view
①
Display with touch screen
②
Enclosure
③
Mechanical interface for fastening (round tube)
④
Terminal compartment cover
⑤
Mechanical interface below
Rear view
①
Mechanical interface for fastening (round tube)
②
Terminal compartment cover
③
Rating plate
④
Mechanical interface below
⑤
Lower cover, included in the product package
