Installing and connecting the device
3.2 Installing the built-in unit
ITC V3, ITC V3 PRO
48 Operating Instructions, 03/2024, A5E42761061-AF
3.2 Installing the built-in unit
3.2.1 Notes on installation
Use according to IEC 61010-2-201 requires an appropriate enclosure
The rear of the built-in device is classified as "Open Equipment" according to
IEC 61010-2-201 for use in industrial control equipment.
For approval and operation according to IEC 61010-2-
201, the device must be installed in an
enclosure or integrated in a cabinet. The enclosure or the cabinet must provide protection
against electric shock and the spread of fire. The enclosure or the cabinet must meet the
requirements for mechanical strength and the degree of protection for the relevant
application.

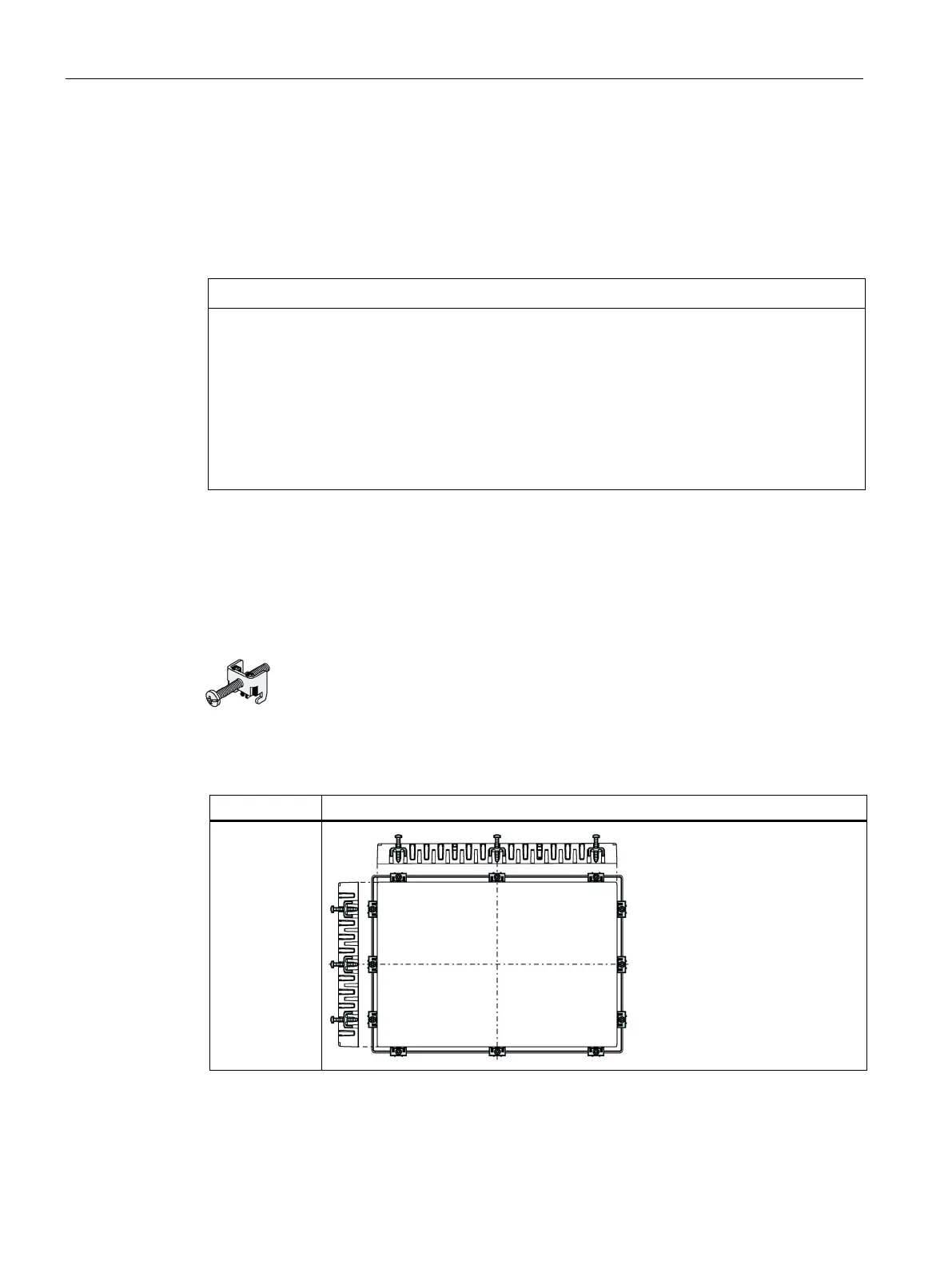

3.2.2 Positions of the mounting clips
You attach the device with 12 mounting clips from the accessory kit, which are also available
as an accessory.
See also section "Accessories (Page 33)".
In order to achieve an IP65 degree of protection for the device, mounting clips must be
installed in the following positions.
Positions of the mounting clips
