Siemens SIMATIC ITC1200 V3 - Description of the Ports; Power Supply; PROFINET (LAN), LAN - 10;100;1000 Mbit

Technical specifications
8.8 Description of the ports
ITC V3, ITC V3 PRO
Operating Instructions, 03/2024, A5E42761061-AF
203

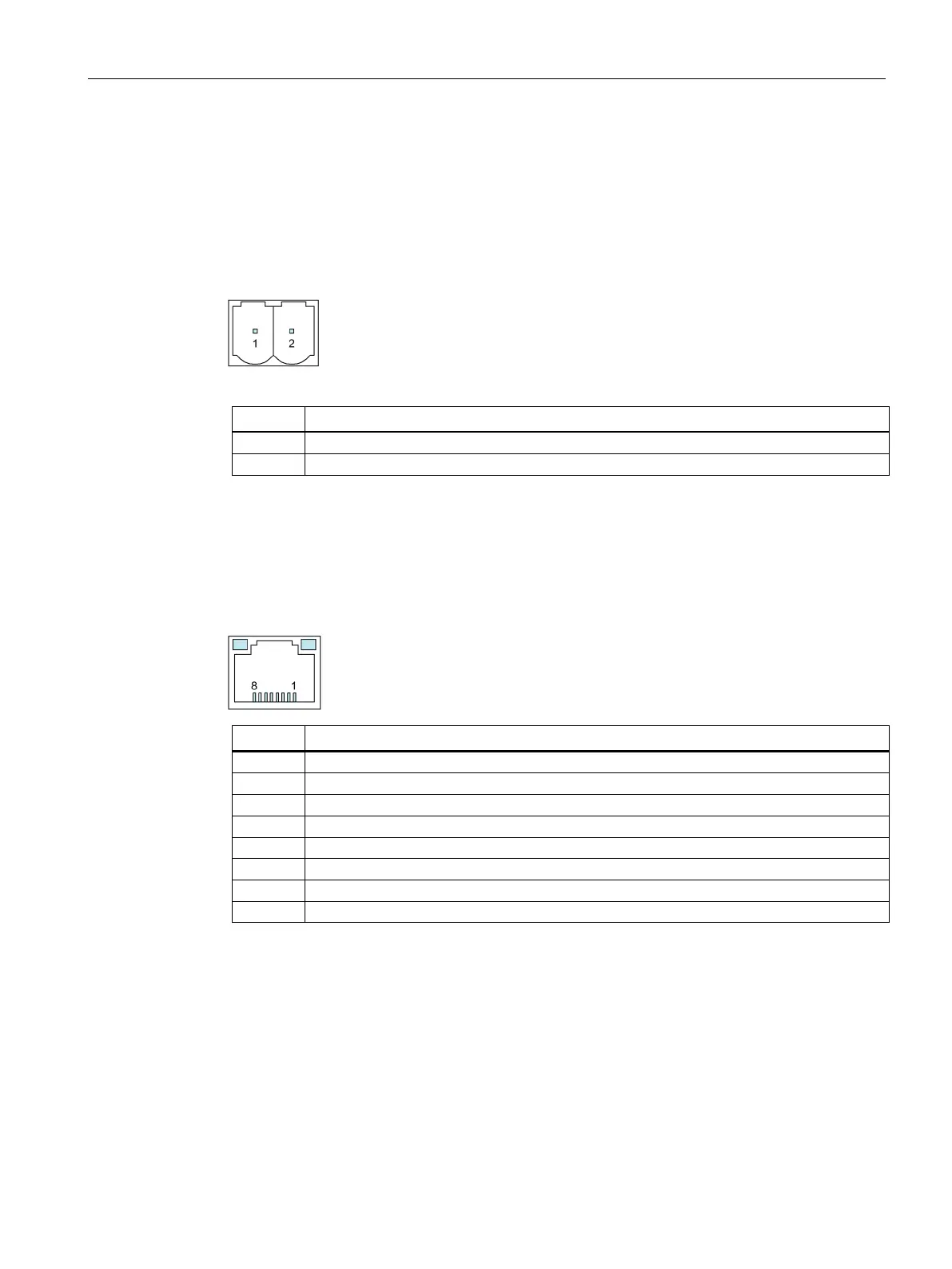

8.8 Description of the ports
8.8.1 Power supply
Plug connector, 2-pin
The following table shows the pin assignment of the power supply.
Pin
Assignment
1
+24 VDC
2
GND 24 V
8.8.2 PROFINET (LAN), LAN - 10/100/1000 MBit
Names of interfaces on HMI device: X1 P1 and X1 P2
RJ45 plug connector
Pin
Assignment
1
D1+
2
D1–
3
D2+
4
D3+
5
D3-
6
D2-
7
D4+
8
D4-
