Installing and connecting the device
3.1 Preparing for installation
ITC V3, ITC V3 PRO
46 Operating Instructions, 03/2024, A5E42761061-AF
3.1.4 PRO devices
3.1.4.1 Permitted mounting positions
The device is intended for mounting on a support arm or stand.

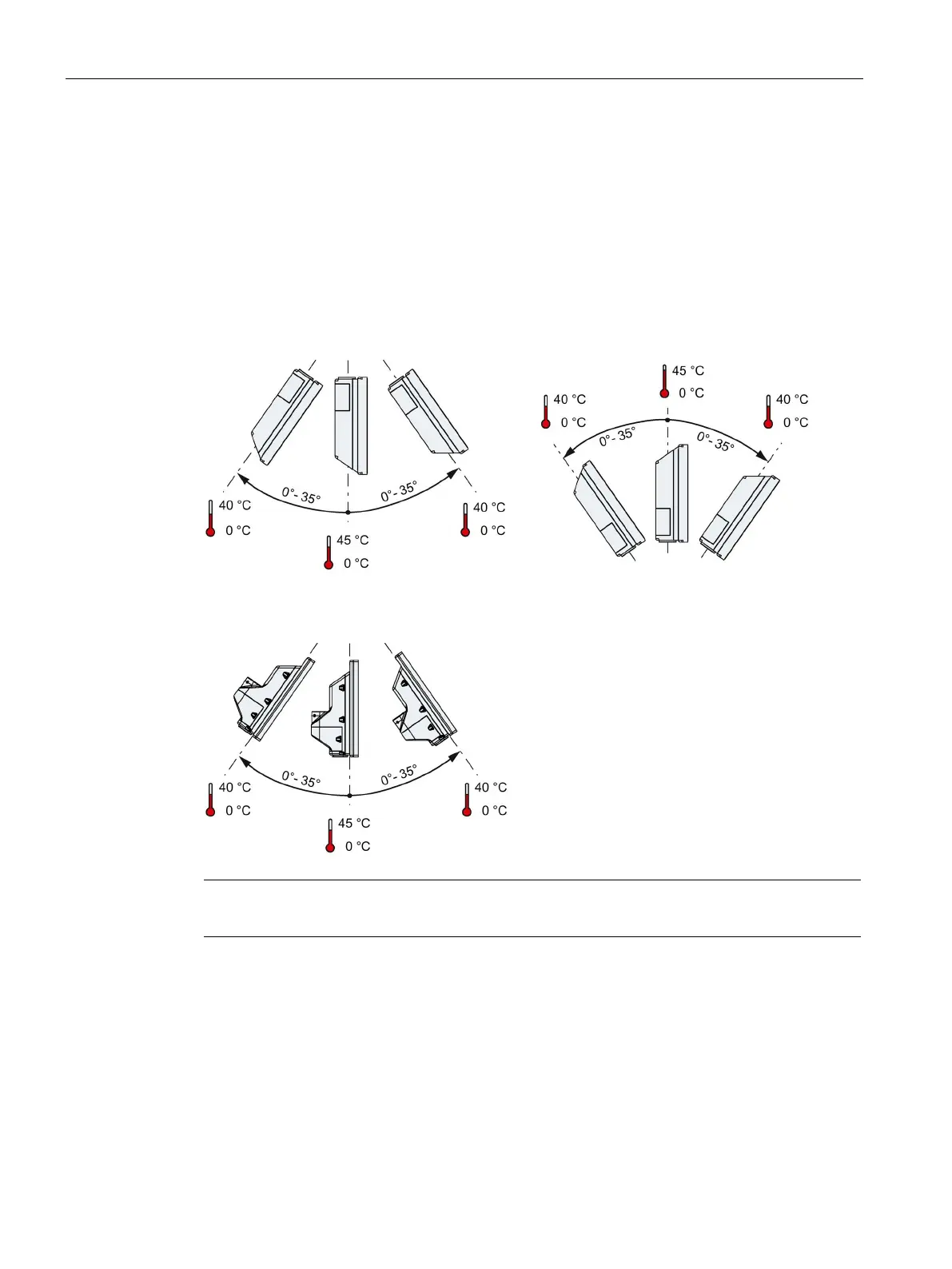

The following figures show the permissible mounting positions of the different PRO devices.
PRO devices for support arm (not extendable, flange top) and for pedestal (extendable,
flange bottom)
PRO devices for support arm (extendable, round tube)
Note
Mounting a PRO device in portrait format is not
permitted.
See also
Climatic ambient conditions (Page 176)
