ITC Operating mode
5.2 Typical applications
ITC V3, ITC V3 PRO
Operating Instructions, 03/2024, A5E42761061-AF
79

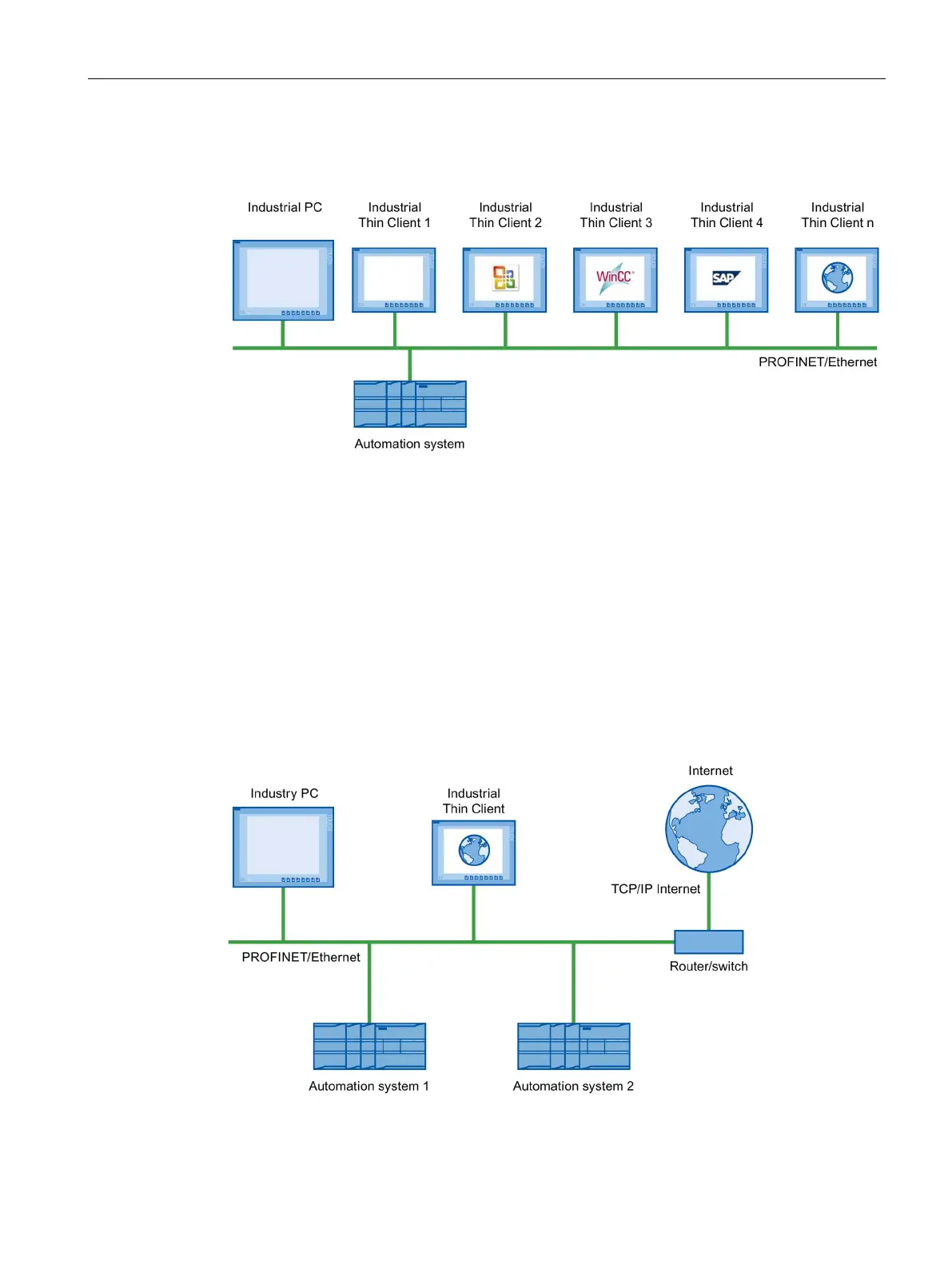

The following figure shows one possible configuration with the Windows Server operating
system on an Industrial PC or a PC.
Access to a server via "VNC"
You use VNC in a similar way as RDP to remotely monitor and run a PC and to monitor its
screen outputs. In contrast to RDP, all clients display the same server screen.
Access to a web server via "Web"
With the integrated web browser functionality, the Industrial Thin Client displays applications
and web server contents. Possible web-based contents include diagnostics web pages and
user-specific web pages of an S7 controller (PROFINET) and contents from the Internet, an
intranet or an IP camera.
