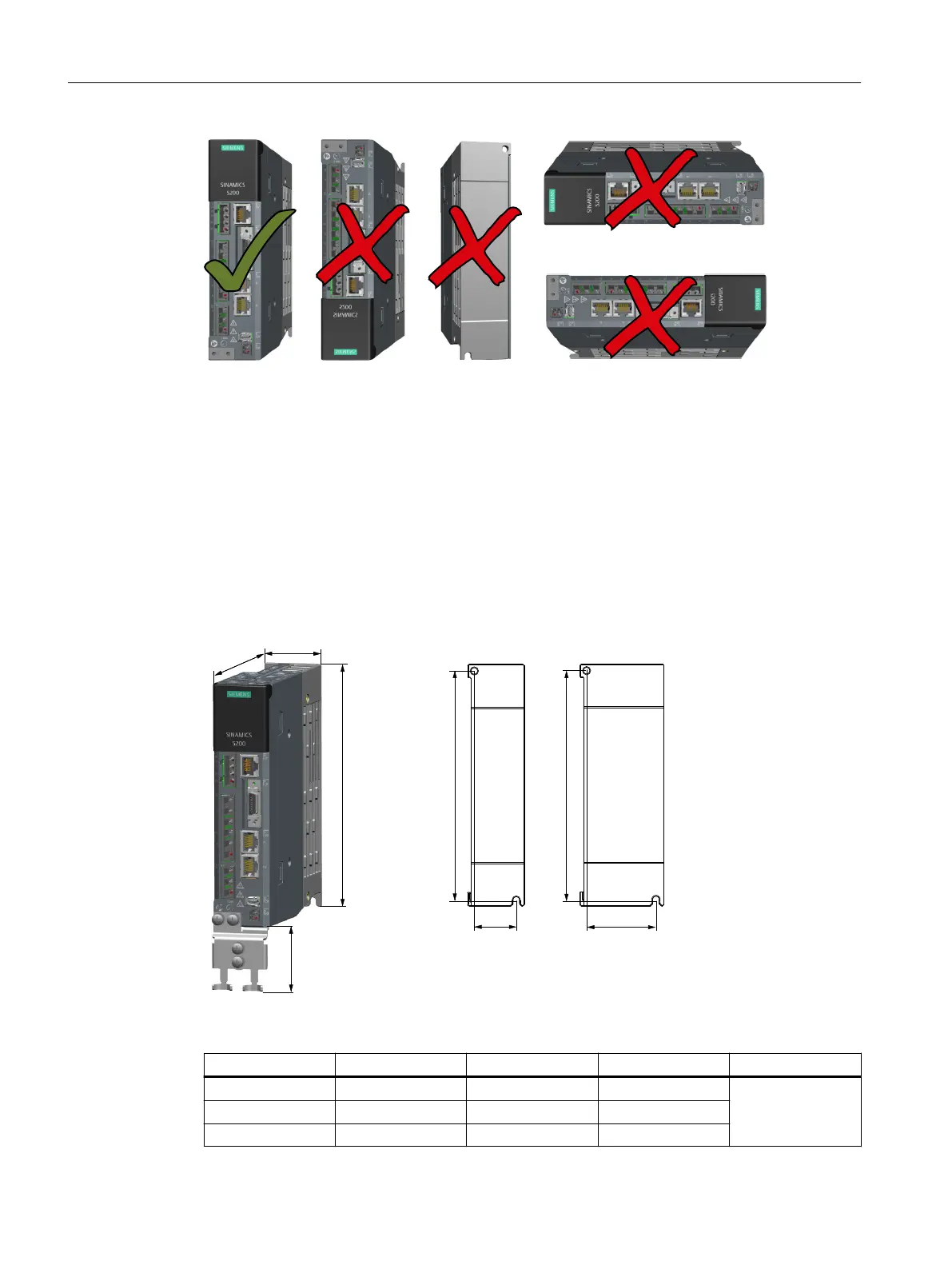

Figure5-1 Converter mounting orientation
5.1.3 Dimension drawings and drilling dimensions
5.1.3.1 Dimension dra
wing and drilling dimensions for the 200 V converter
Dimension drawing
All dimensions are speci󹪝ed in millimeters.
:LGWK
'HSWK
+HLJKW



)6$
)6%
)6&

Table 5-1 Dimensions and mounting, 1AC/3AC200V, FSA...FSC, IP20
Frame size Width Height Depth Fixing
FSA 40 mm 170 mm 135 mm 2 x M4 / 2.5 Nm
FSB 40 mm 170 mm 170 mm
FSC 60 mm 170 mm 195 mm
Mounting
5.1Converter
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
100 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
