6.10.2 Wiring
Overvie
w
The maximum length of cables between stations (L1 to Ln) is 100 m. Siemens recommends that
you 󹪝x the cable on the cabinet to prevent connector damage caused by dragging. If a cable with
a length of more than 3 m is connected to the PROFINET port, electromagnetic interference may
occur. Minimization of the interference emission is possible by the use of ferrite cores, cabinet
feedthrough or 󹪝ber optic transceiver.
Note
When
connecting t
he ports P1 and P2, make sure that the physical input and output connections
are the same with the connections in the topology.
Connection example
&RQWUROOHU
///Q
;3
;3;3;3;3

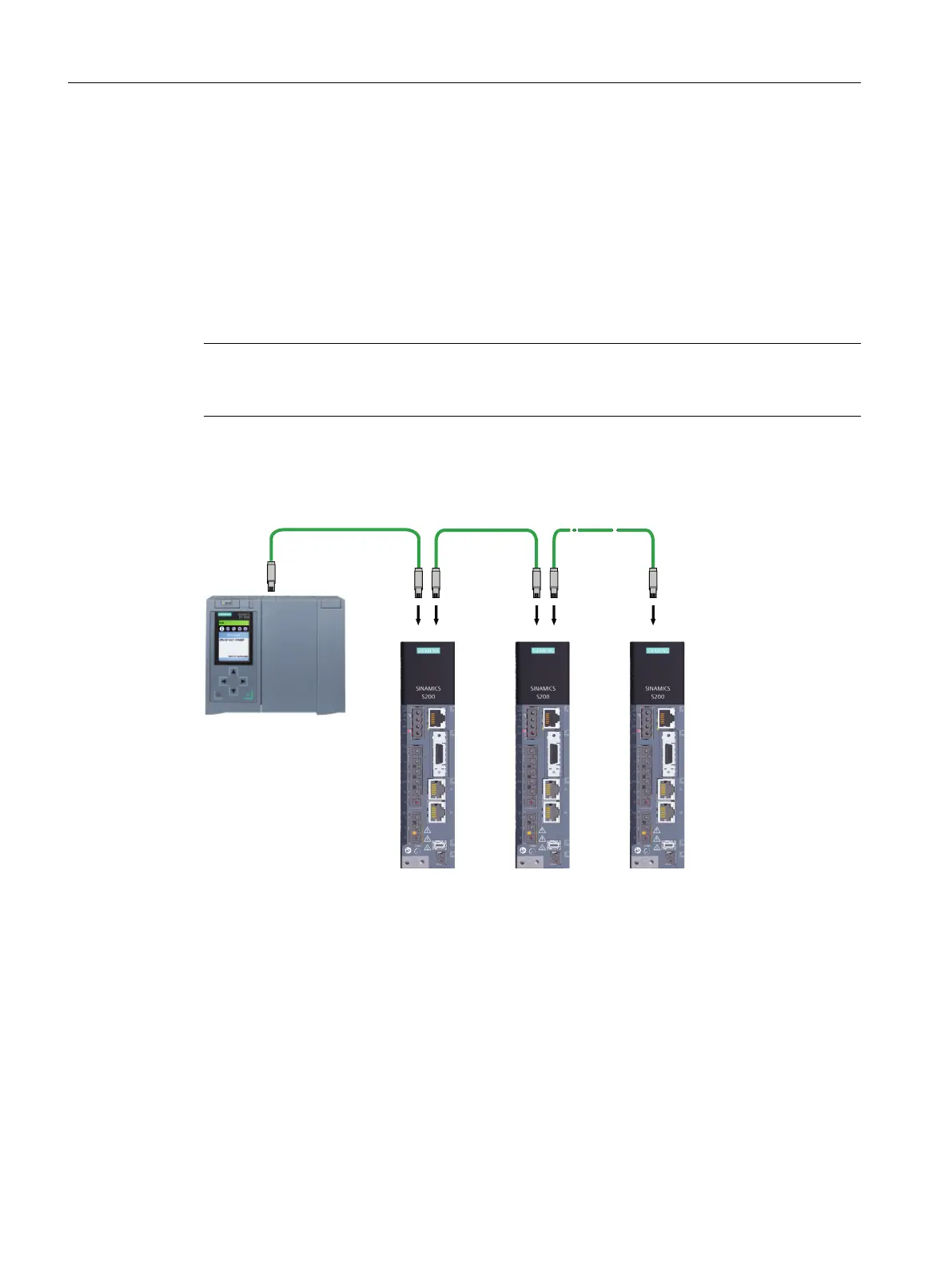

Figure6-14 Connecting to the 󹪝eldbus
More information
For more inf
ormation about cable requirements, see Section "Cables and connectors
(Page130)".
