Description
• 1FL2 shaft heights 20, 30, and 40
The holding brake interface is integrated into the hybrid connector. For more information,
see Section "Interface description - power connector (motor side) (Page136)".
• 1FL2 shaft heights 48 and 52
The holding brake interface is integrated into the M17 power connector. For more
information, see Section "Interface description - power connector (motor side) (Page136)".
• 1FL2 shaft heights 45, 65, and 90

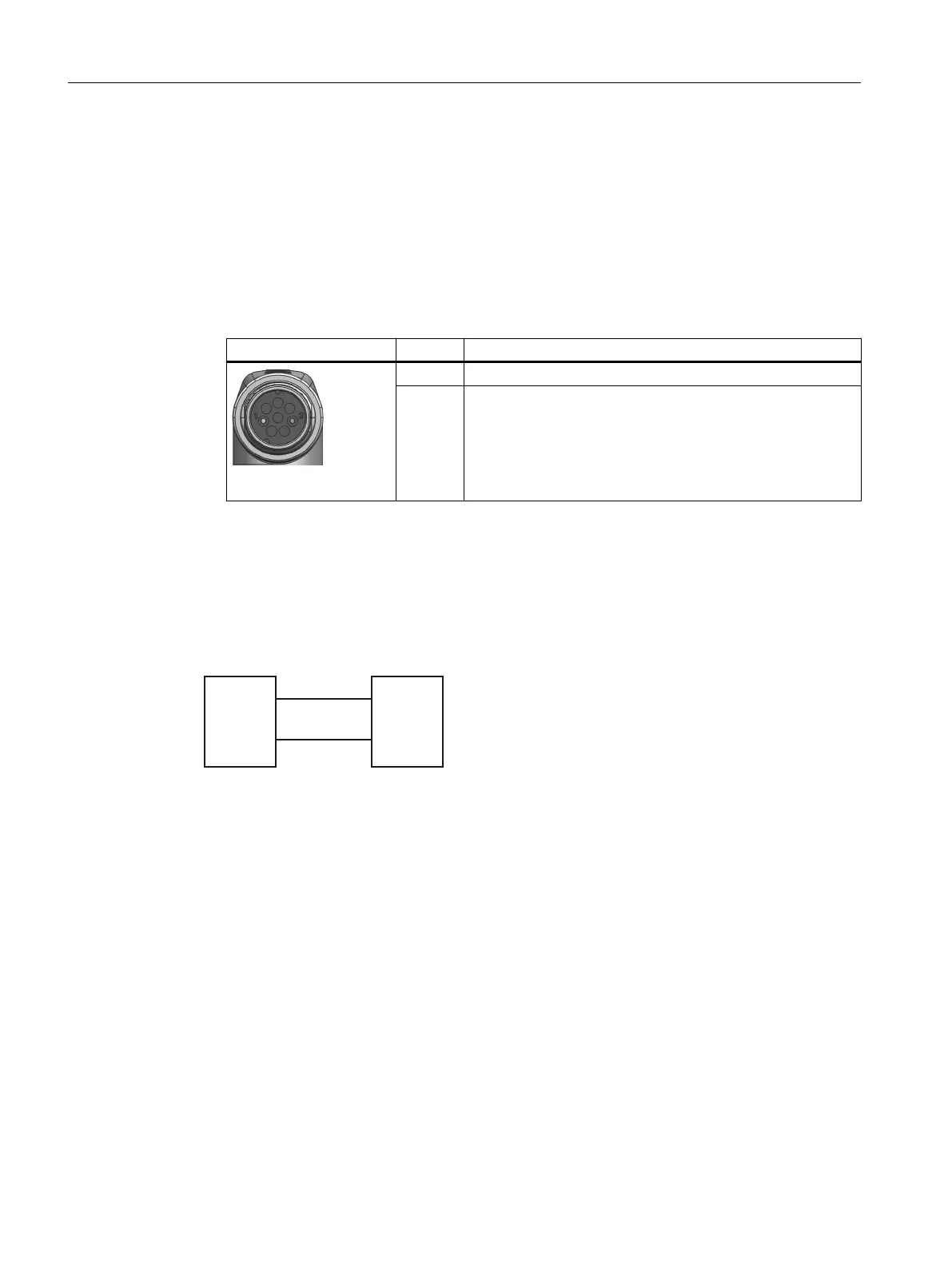

Holding brake interface Pin Designation
M17 angular connector
1 Holding brake, positive
2 Holding brake, negative
6.5.3.3 Wiring
Connection e
x
am
ple
Connecting S200 PN to the motor holding brake
%
%
%
%
:KLWH
%ODFN
&RQYHUWHUVLGH
0RWRUVLGH
Figure6-7 Motor holding brake connection via X108
Connecting
6.5Connecting the motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
140 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
