Table 3-12 Replacement fans
SINAMICS S200 PN Article number
3 AC, 380 V ... 480 V
FSC 6SL5560-0CE00-0AA0
FSD 6SL5560-0DE00-0AA0
3.4.6 Shield plate kit
Description
The shield plat
e kit (article number:6SL5566-0AB00-0AA0) includes a shield plate and four
󹪝xing screws (M4 × 12). The shield plate can establish ground connections to both shielded
cables and protective conductors.
You can use the supplied two M4 screws to 󹪝x the shield plate with a tightening torque of
2.2Nm.

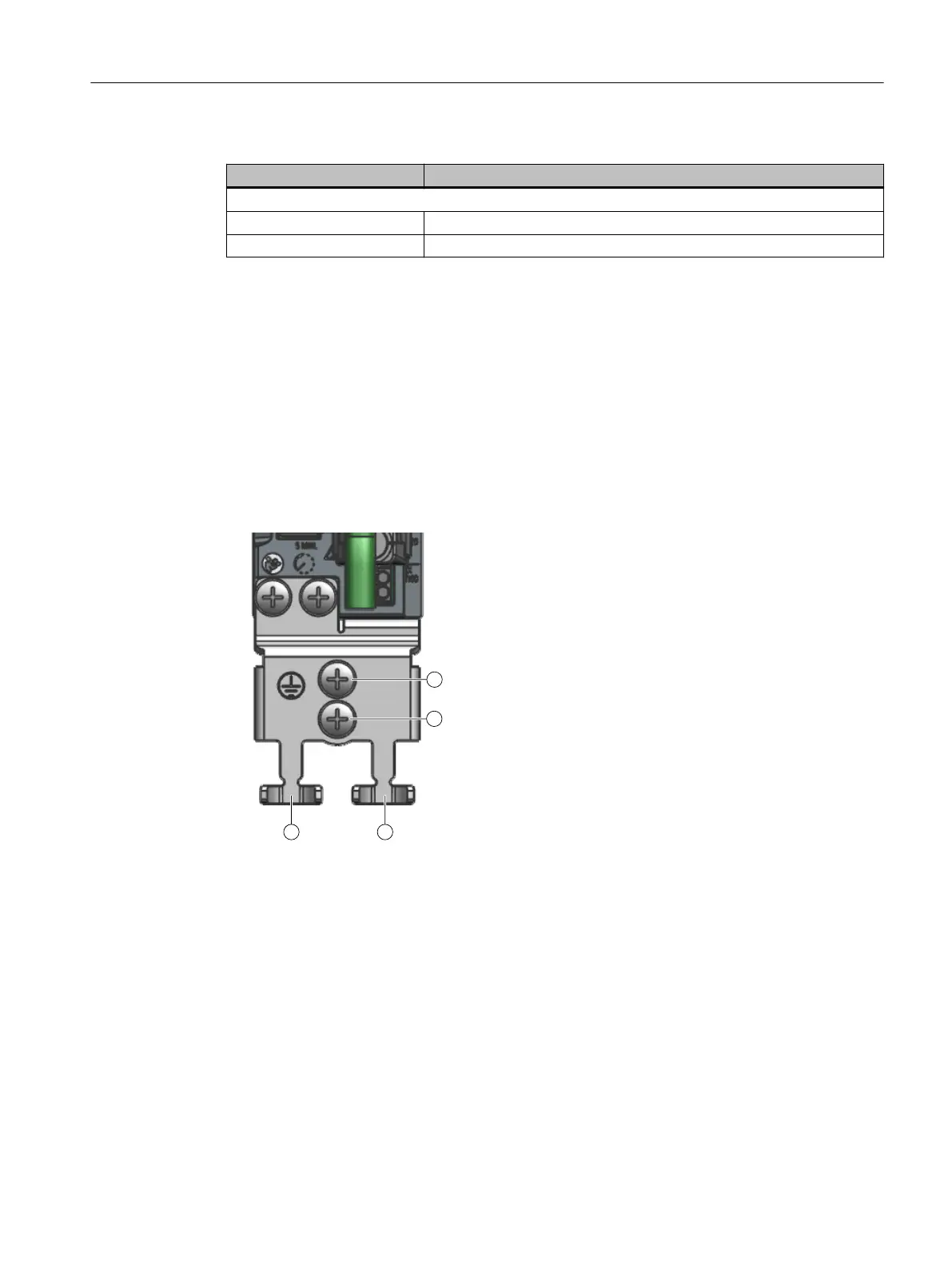

2
3 4
1
① Converter grounding
② Motor cable grounding
③ Fixing motor power cable
④ Reserved (recommended to 󹪝x br
ake cable and encoder cable)
F
igure3-12 Shield plate
For the connection of ① or ②, you can connect the pr
otective conductor with a cable lug
and an M4 screw to the shield plate.
Description
3.4Accessories
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 71
