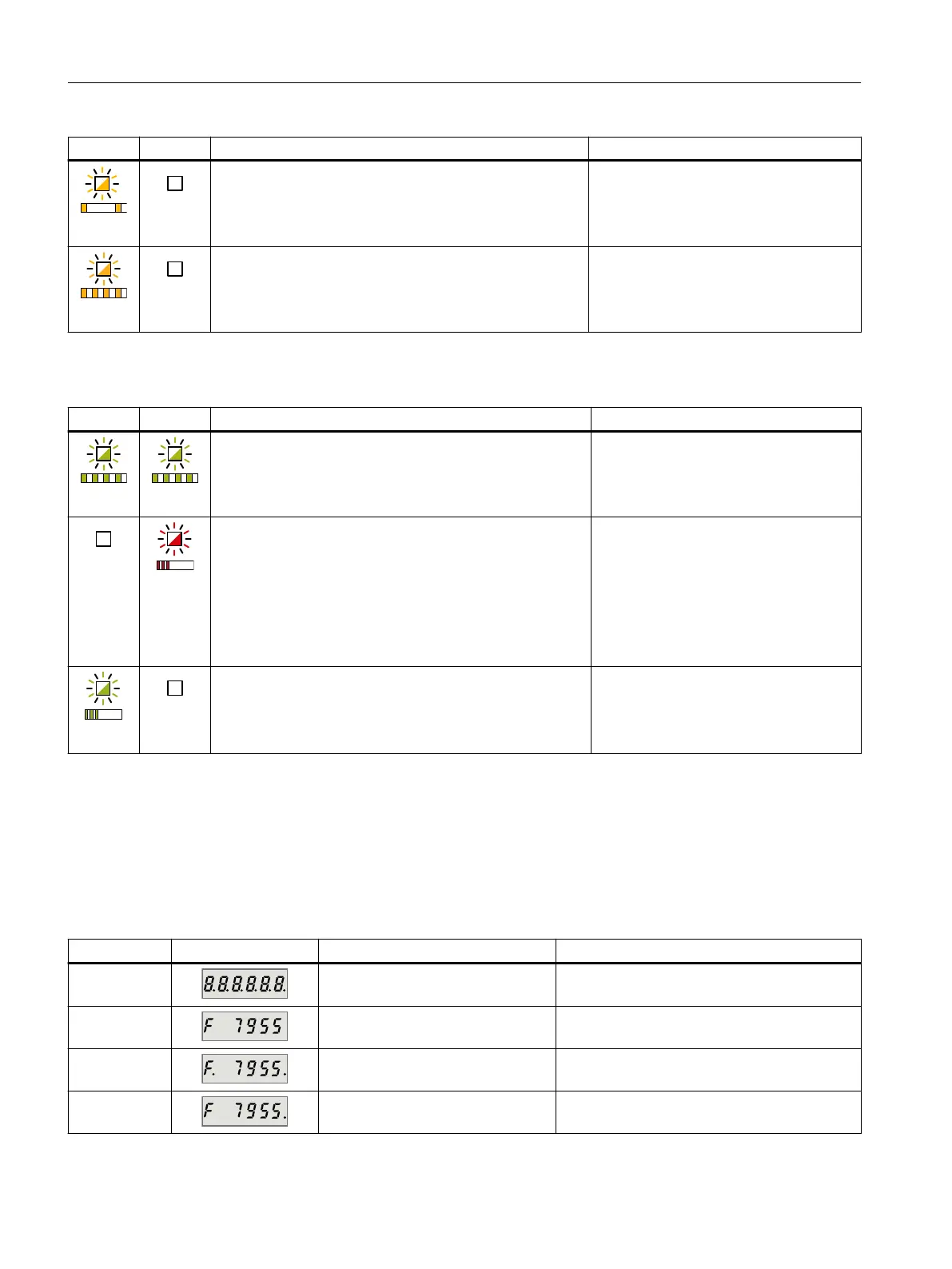

RDY COM Description Remedy
Orange
Converter detection via DCP 󹪞ashing -
Orange
Commissioning or restore factory settings via commission‐
ing tool
-
Table 12-3 Signal states of RDY and COM LEDs during 󹪝rm
w
ar
e update
RDY COM Description Remedy
Green Green
Firmware update in progress -
Red
Firmware update signals an error.
Switch the converter supply voltage
o󹪜 and on, and repeat the
󹪝rmware
update.
Firmware update via memory card:
Replace memory card and repeat 󹪝rm‐
ware update.
Contact Support/Hotline.
Green
Firmware update is completed.
The conver
ter is waiting.
Switch the converter supply voltage o󹪜
and on.
Please contact Technical Support for LED states that are not described above.
12.1.3 SDI St
atus display
Description
Display Example Description Remarks
8.8.8.8.8.8.
Converter is in startup state -
Fxxxxx Fault code In the case of a single fault
F.xxxxx. Fault code of the 󹪝rst fault
In the case of multiple faults
Fxxxxx.
Fault code In the case of multiple faults
System messages
12.1SDI Status
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
424 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
