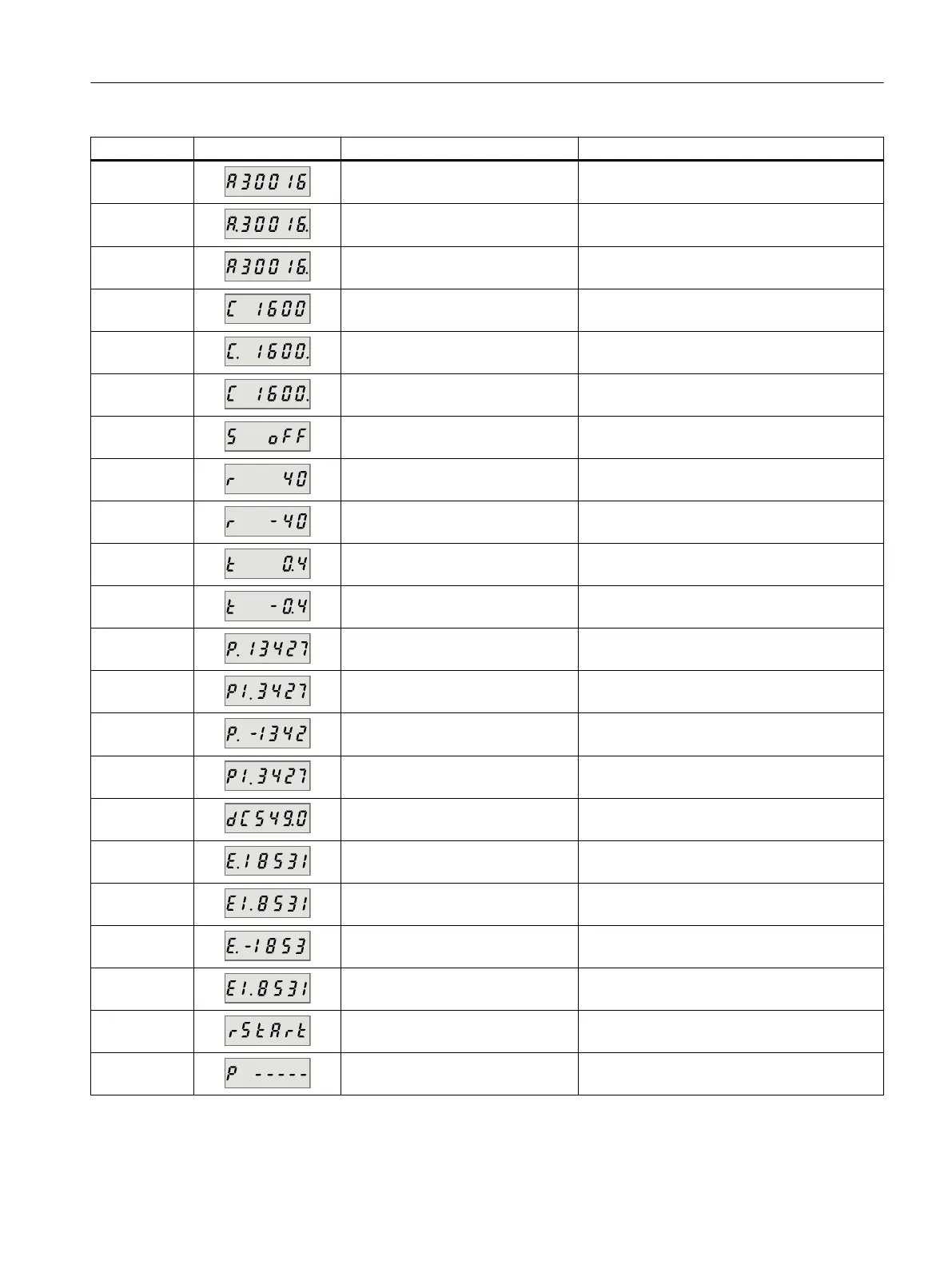

Display Example Description Remarks
Axxxxx
Alarm code In the case of a single alarm
A.xxxxx.
Alarm code of the rst alarm
In the case of multiple alarms
Axxxxx.
Alarm code In the case of multiple alarms
Cxxxxx Safety message code In the case of a single safety message
C.xxxxx. Safety message code of the rst
safe‐
ty message
In the case of multiple safety messages
Cxxxxx.
Safety message code In the case of multiple safety messages
S O
Operating display: servo-o -
r xxx Actual speed (positive direction) -
r -xxx Actual speed (negative direction) -
T x.x
Actual torque (positive direction) -
T -x.x Actual torque (negative direction) -
P.xxxxx Actual position (positive direction) The digits are not fully displayed. Press the
DOWN button t
o scroll to the next page.
Px.xxxx
Actual position (positive direction) The remaining digits have been fully displayed.
P.-xxxx Actual position (negative direction) The digits are not fully displayed. Press the
DOWN button t
o scroll to the next page.
Px.xxxx
Actual position (negative direction) The remaining digits have been fully displayed.
DCxxx.x Actual DC link voltage -
E.xxxxx
Position following error (positive di‐
rection)
The digits are no
t fully displayed. Press the
DOWN button to scroll to the next page.
Ex.xxxx
Position following error (positive di‐
rection)
The remaining digits have been fully displayed.
E.-xxxx Position following error (negative di‐
rection)
The digits are no
t fully displayed. Press the
DOWN button to scroll to the next page.
Ex.xxxx
Position following error (negative di‐
r
ection)
The
r
emaining digits have been fully displayed.
Restart
Restart the converter -
P----- The parameter does not exist. The symbol "P" could be other parameter sym‐
bols, like "T", "E", etc.
System messages
12.1SDI Status
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 425
