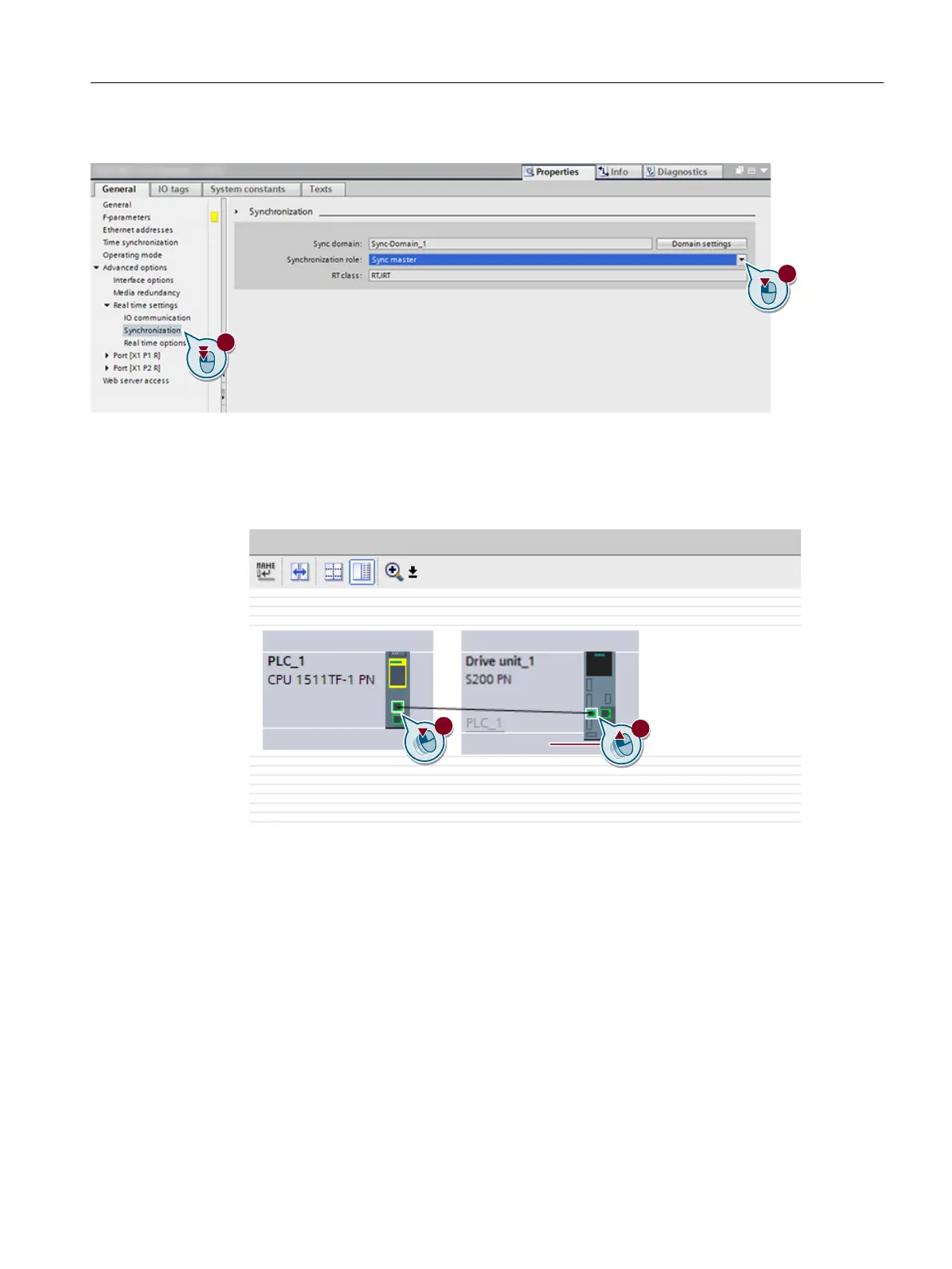

6. Open the "Synchronization" menu with a double-click.


7. Select the "Sync master" setting from the "Synchronization role" drop-down list.
8. Switc
h to the topology view.
9. Draw a connection between Port_1[X1.P1] of the controller and Port_1[X150.P1] of the
converter.


Result
The SIMATIC
S7 controller and the converter are networked with one another in the network and
topology view.
8.5.2.3 Inserting a technology object into the SIMATIC S7 controller
Overview
Through the technology object, Motion Control functions such as positioning and synchronous
axes are available to you. For this reason, insert a new technology object (TO) in the SIMATIC S7
controller. In the "Con󹪝guration" function view, you can directly assign the inserted SINAMICS
drive and go to the drive con󹪝guration.
Commissioning (Startdrive)
8.5Combining and con󹪝guring devices in t
he project
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 247
