Description
• 1FL2 shaft heights 20, 30, and 40

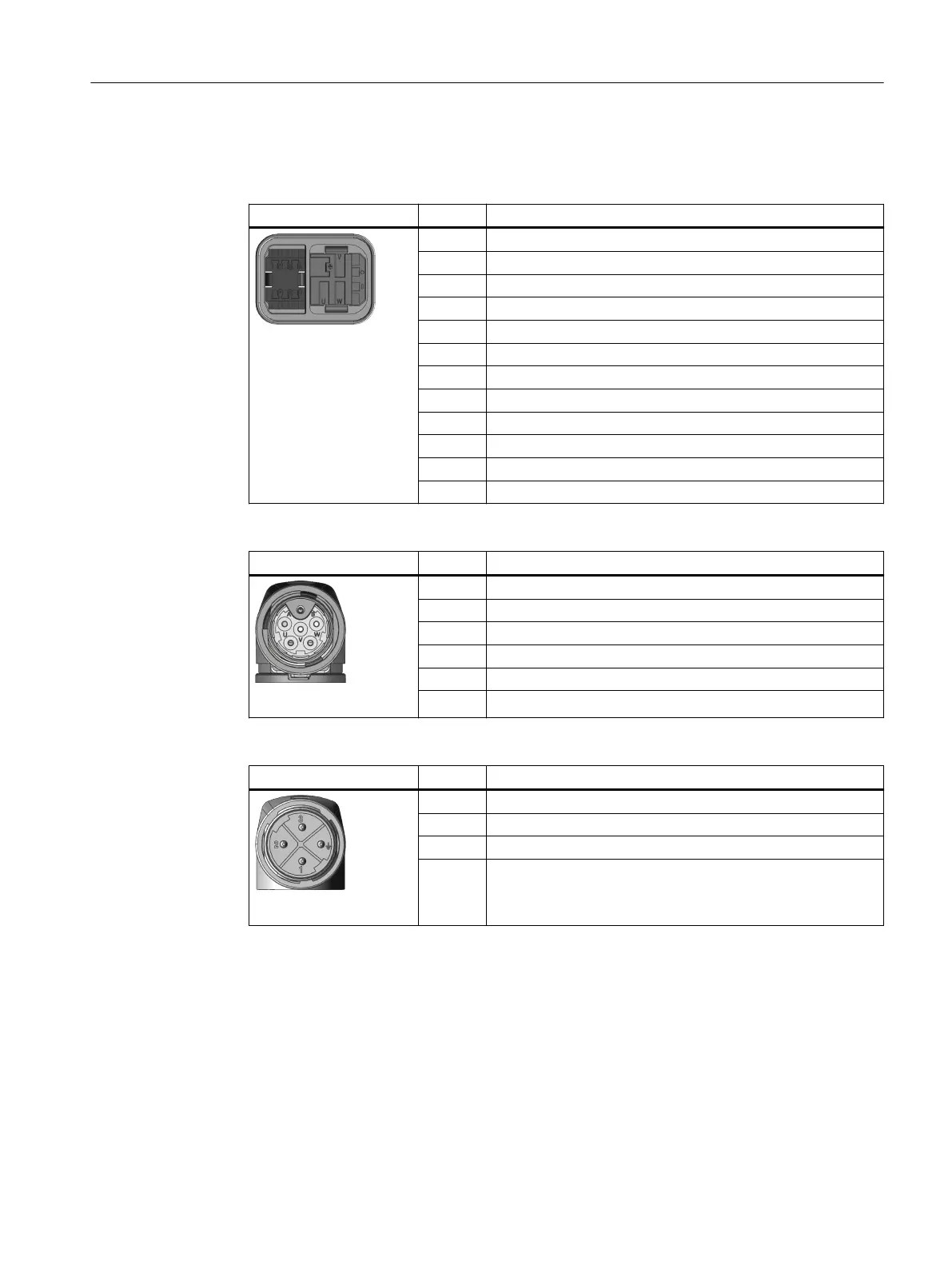

Motor power interface Pin Designation
Hybrid connector
U Phase U
V Phase V
W Phase W
PE Protective grounding
+ Holding brake, positive
- Holding brake, negative
A Encoder power supply, 5V
B Encoder power supply, reference ground
C Absolute encoder clock signal, positive
D Absolute encoder clock signal, negative
E Absolute encoder data signal, positive
F Absolute encoder data signal, negative
• 1FL2 shaft heights 48 and 52
Motor power interface Pin Designation
M17 angular connector
U Phase U
V Phase V
W Phase W
PE Protective grounding
A Holding brake, positive
B Holding brake, negative
• 1FL2 shaft heights 45, 65, and 90
Motor power interface Pin Designation
M23 angular connector
1 Phase U
2 Phase V
3 Phase W
PE Protective grounding
Connecting
6.5Connecting the motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 137
