Description of function
â‘ Display general information about the function of the current view
Click or tap on the header or on the expand icon to show general information about the function of the current
view.
Click or tap again on the header or on the collapse icon to hide the general information about the function of
the current view.
â‘¡ Display detailed information in a context-sensitive help window
Point with the mouse pointer or tap on the setting you need information about.
The setting is highlighted and t
he assigned info icon appears.
When you move the mouse pointer to the info icon, the icon and the mouse pointer change their appearance.
If you now clic
k or tap on the info icon, a context-sensitive help window appears with detailed information.
â‘¢ Display a tooltip with context-sensitive short information about a setting
Point with the mouse pointer or tap on the setting you need information about.
If
you
hold the mouse pointer or keep the tap pressed on the setting for longer, a tooltip with the context-sensitive short
information is displayed.

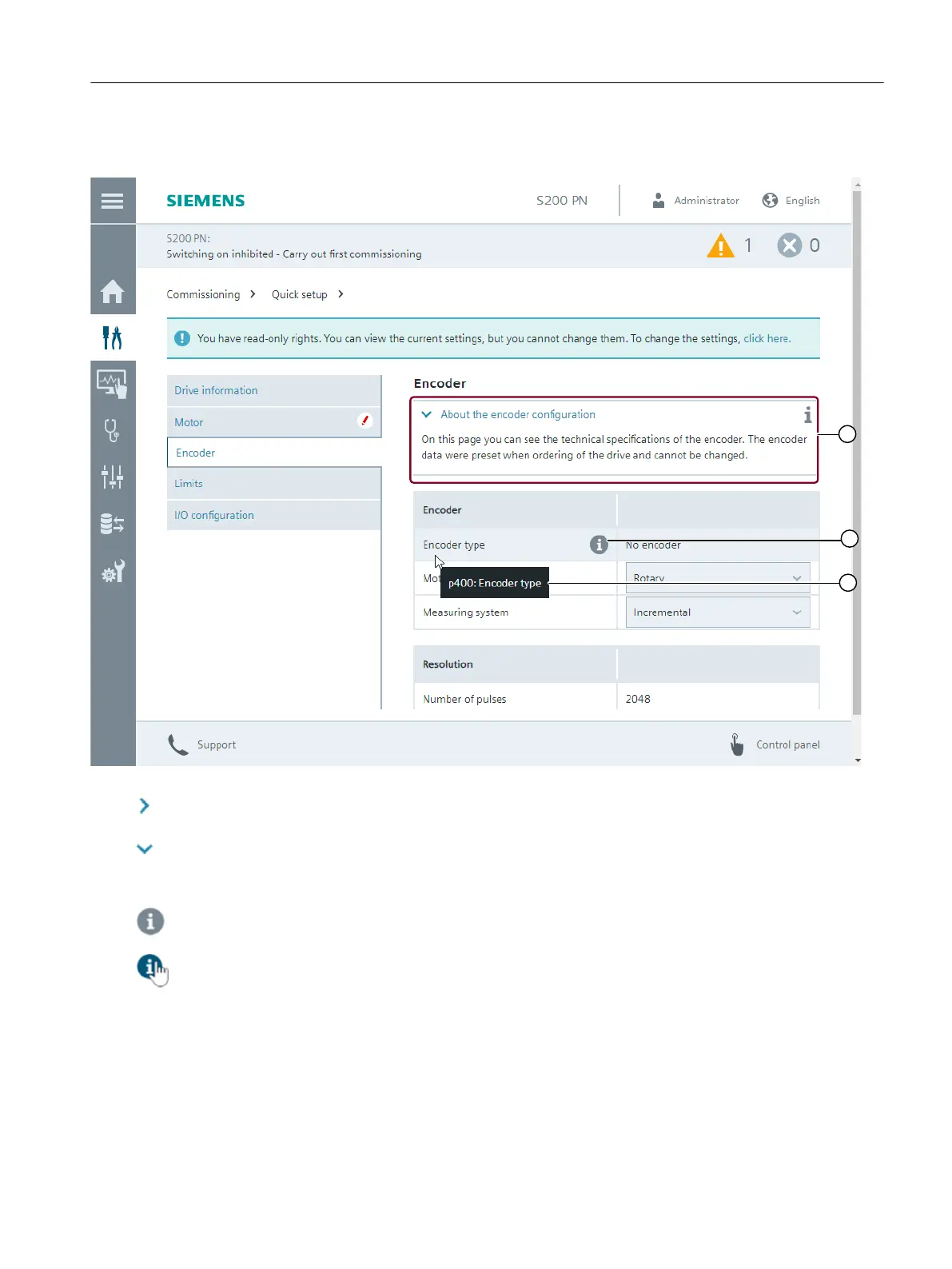

Figureî™ 7-1 Information displayed in the current view
Commissioning (web server)
7.2î™ Fundamentals
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 169
