Description of function

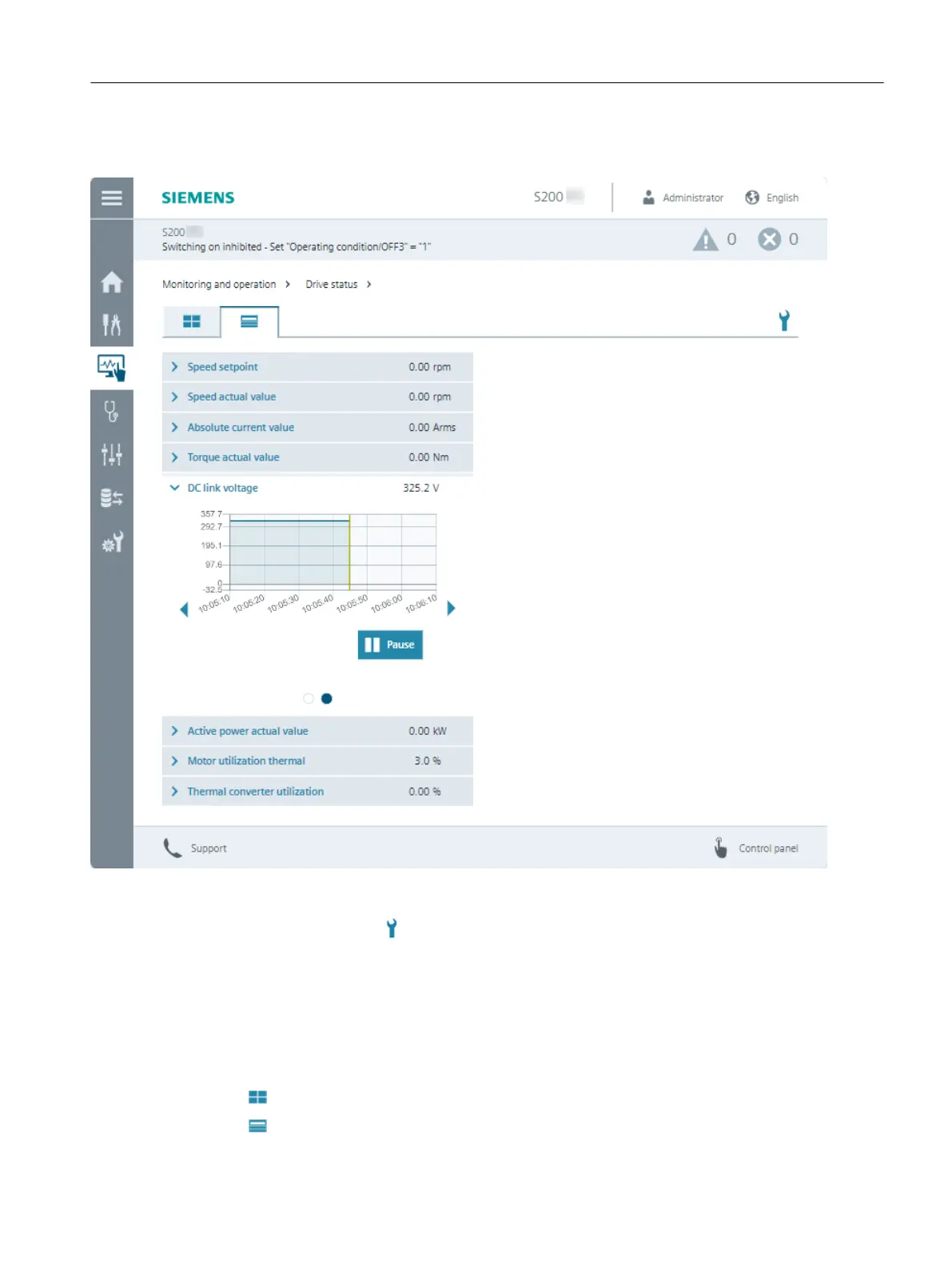

Figure7-7 Drive status
The drive information displayed is preset in the factory setting, and when required, can be
adap
ted using symbol . If user management is active, the "Edit web server con󹪝guration"
right is r
equired in order to make changes.
Values are indicated as follows:
• Factory setting: 8 values are displayed
• It is possible to display all values completely
The drive status is displayed as follows:
•
: Individual values are continuously displayed
• : Individual values and trend diagrams are continuously displayed
Commissioning (web server)
7.4Functions and menus
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
