1 Motor type 15 Rated current I
N
2 Article number 16 Cooling method according to EN 60034-6
3 Serial number 17 Motor ID
4 Rated torque M
N
18 Weight
5 Static torque M
0
19 Country of origin
6 Rated voltage U
N
20 Standard for all rotating electrical machines
7 Rated power P
N
21 Certications
8 Encoder type and resolution 22 Maximum speed n
max
9 Holding brake 23 Rated speed n
N
10 Manufacturer's address 24 QR code
11 Thermal class 25 Function release/version
12 Degree of protection 26 UK importer address
13 Stall current I
0
27 Note on disposal
14 Motor operating mode

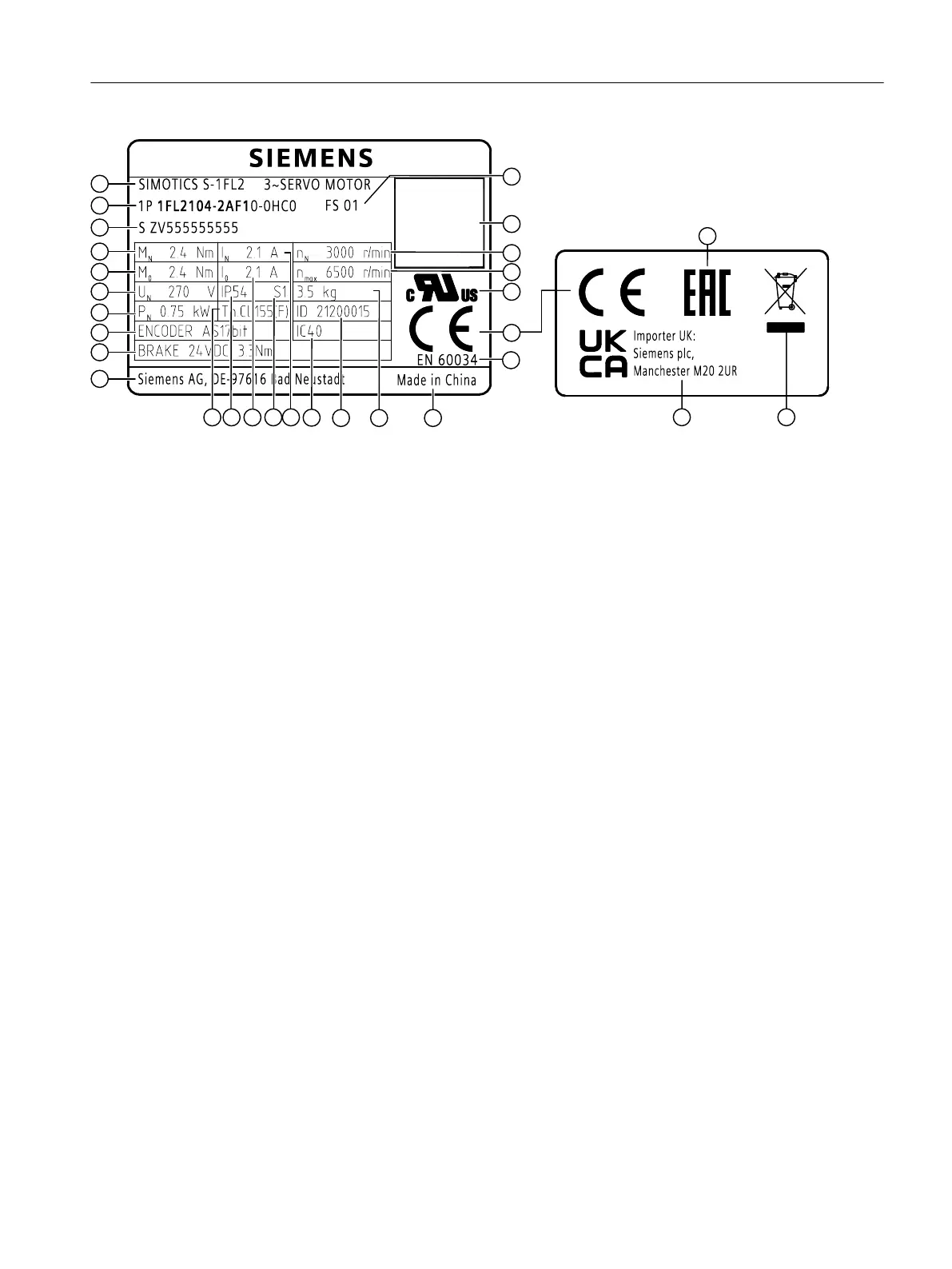

Figure3-8 Rating plate example for 1FL2 SH40 and above
Description
3.2Scope of delivery
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 51
