CONF
600 PLUS - User’s Manual

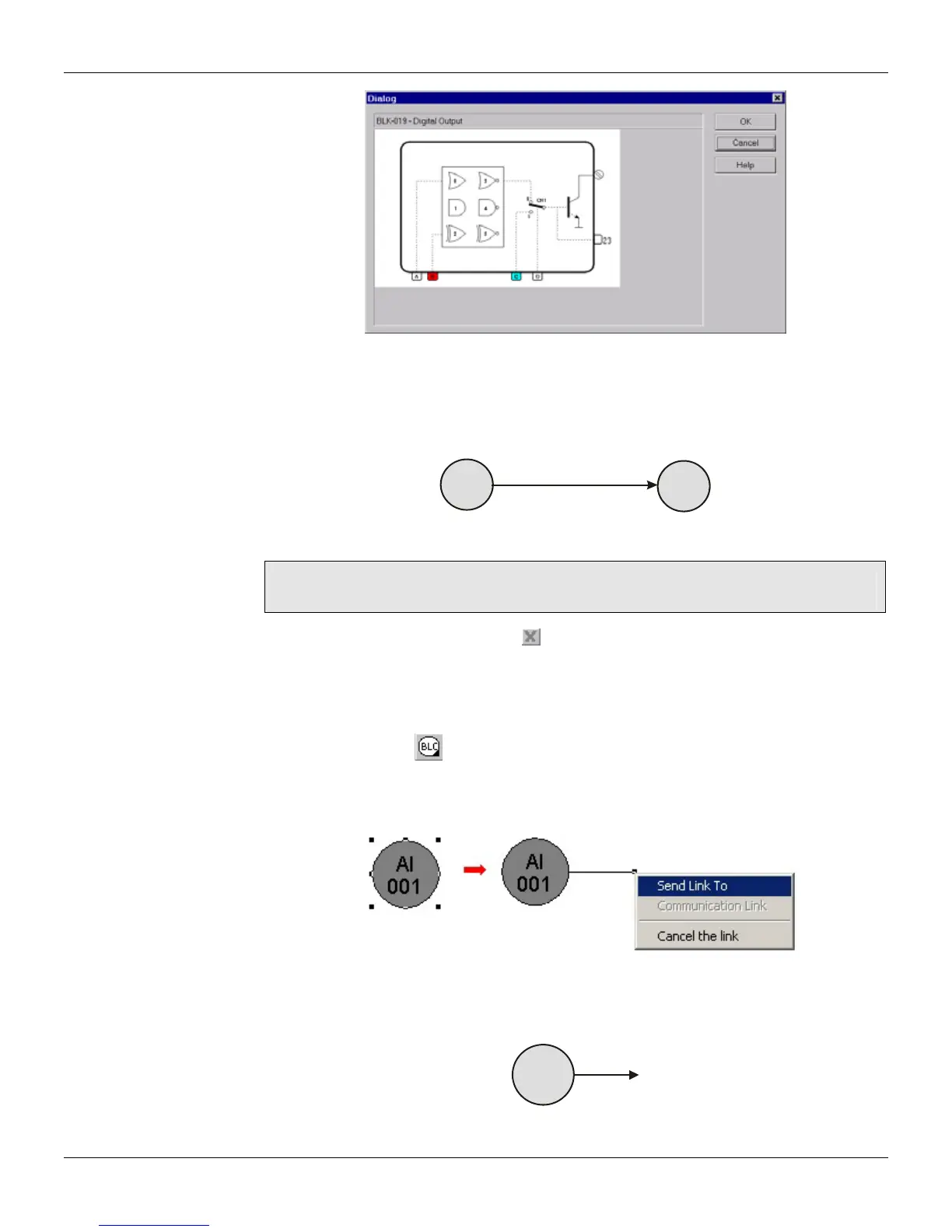

Figure 15.4 - Select the Input Parameter Graphically
If the block already has a link to one of its input parameters, this parameter will be signed in red and
will not be available for another link, as the figure above shows.
Once the input and output parameters are selected, the link will be drawn as in the figure below.
Al
001
CO
009
001 A
Figure 15.5 - Linking Blocks
If the user clicks on a block that has no output/input parameter during the linking
procedure, the link will be canceled.
To cancel the link, click the Close button, , at the right upper corner of the Link menu.
Creating a link with interruption
A link with interruption connects blocks from different loops in the same configuration project, or
blocks in the same loop but there is an interruption on the line draw.
Select the Node tool,
, click on the block to open the Link menu and select the output
parameter, as described in the previous section.
Once the output parameter has been selected, drag the mouse onto the drawing area and right-click
the area to open the popup menu, as the following diagram shows:
Figure 15.6 - Creating a Link with Interruption
Select the option Link To from the menu. The link line will be interrupted and an arrow will be drawn
at the end to indicate that the link line continues in another position.
Al
001
001
Figure 15.7 - Link with Interruption
15.2
