CD600 Plus - User's Manual
4.68

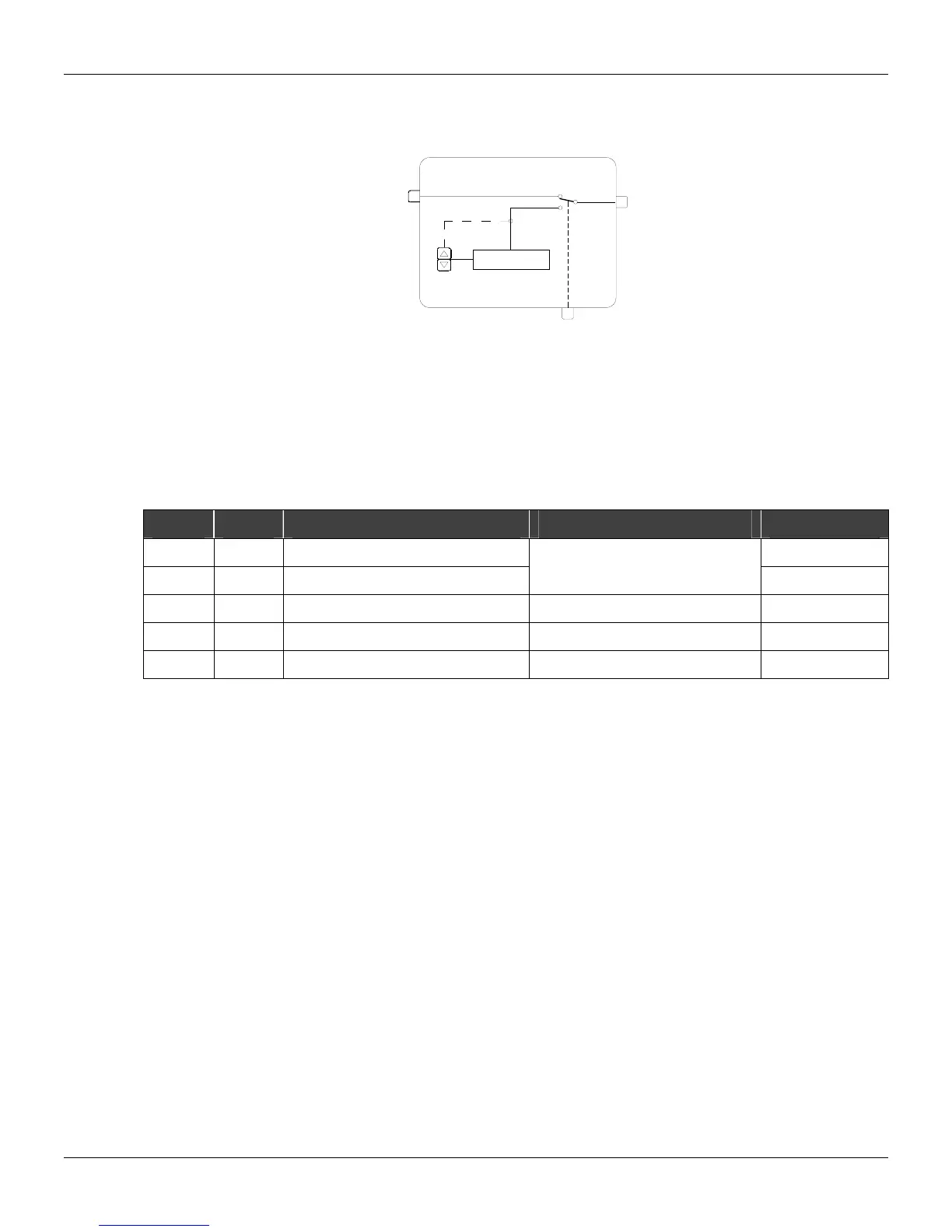

Function 27 - Internal/External Selector (SSEL)
Operation
BLK 097
098
A
B
231/232
REGISTER
DSP
0
1
CH1
When the switch CH1 is at the position "0", the signal from input
A goes directly to the output. When
CH1 is switched to position "1" through a high logic level signal at input
B. This switching is
balanced, i.e., the last value of input
A goes to the register, which takes over the output of the block.
The output can then be activated by the <
Δ> and <∇> keys, as long as the output of this block is
selected to be indicated on the front panel display.
The input and output of this block may range from -102.00 to +102.00%.
TYPE MNEM DESCRIPTION RANGE DEFAULT
I LIA Input A 0
I LIB Input B - Switches CH1
Addresses
0 to 170/225 to 240
0
P ASPD Register Actuation Speed 0.00%/s to 200.00%/s 10.00%/s
P ALOW Lower Register Limit -102.00% to 102.00% 0.00%
P AUPP Upper Register Limit -102.00% to 102.00% 100.00%
Number of Bytes per parameter: A = 6 C = 0 L = 4
