CD600 Plus - User's Manual
4.80

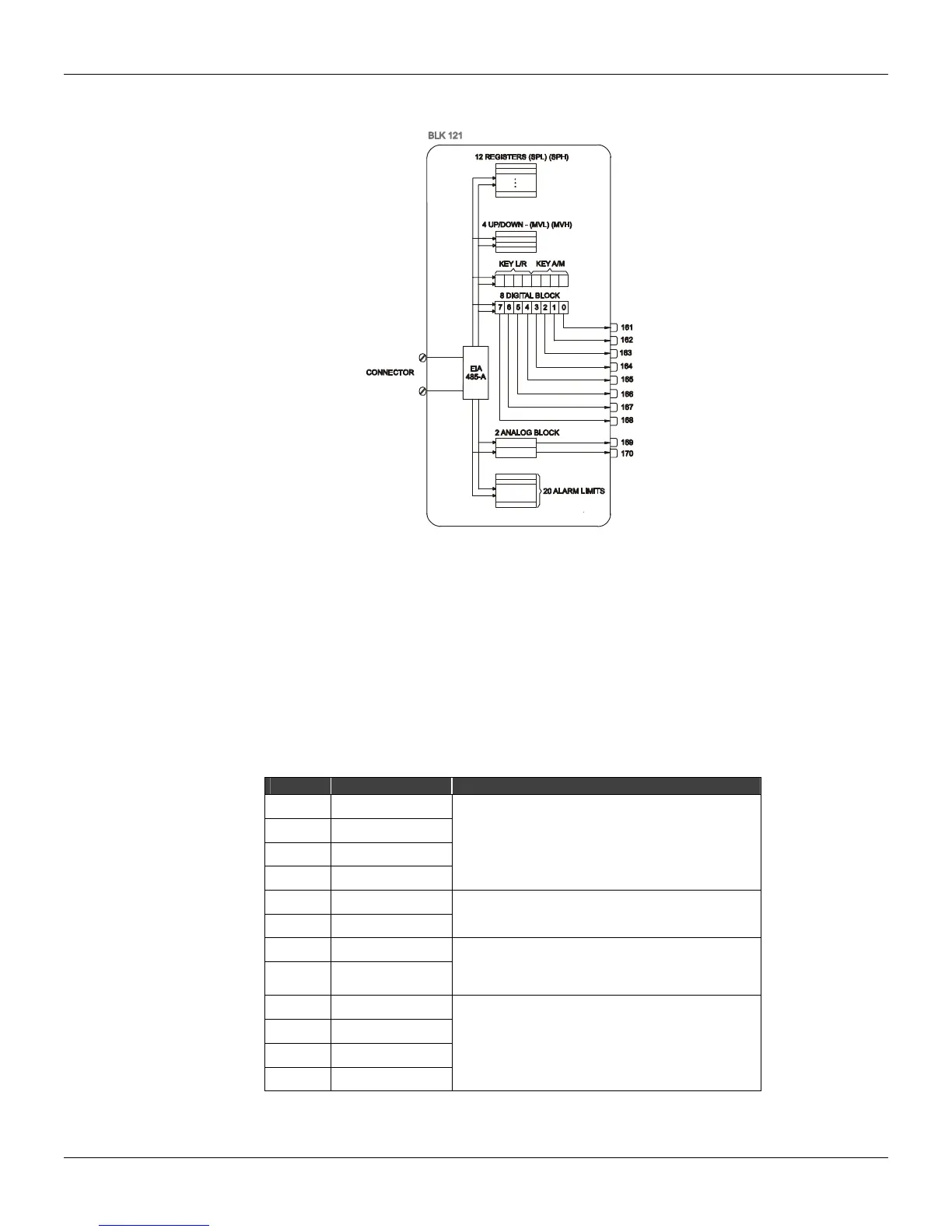

Function 36 - Actuation (ATU)
Operation
This block allows actuation of digital and analog variables of the CD600 blocks by the commands
received via the communication bus.
These variables are classified into 6 groups:
I. REGISTER ACTUATORS
The register actuators correspond to the keys <Δ> and <∇ > on the CD600 front panel.
The twelve analog registers contained in the Constant Adjuster, Internal/External Signal Selector,
Local/Remote SP and Setpoint Generator blocks are defined by the parameters
CR01 through
CR12. In order to establish the actuation sequence, the CRxx parameters must be set with the
numbers corresponding to the blocks as shown in Table 4.36.1.
CR BLOCK No. BLOCK NAME
0 BLK031
1 BLK032
2 BLK033
Function 07
Local/Remote SP Selector
3 BLK034
4 BLK075
Function 21
Setpoint Generator
5 BLK076
6 BLK097
7 BLK098
Function 27
Internal/External Signal
Selector
8 BLK099
9 BLK100
10 BLK101
11 BLK102
Function 28
Constant Adjuster
Table 4.36.1 - Block Corresponding numbers for CR Parameters
