Library of Function Blocks
4.5

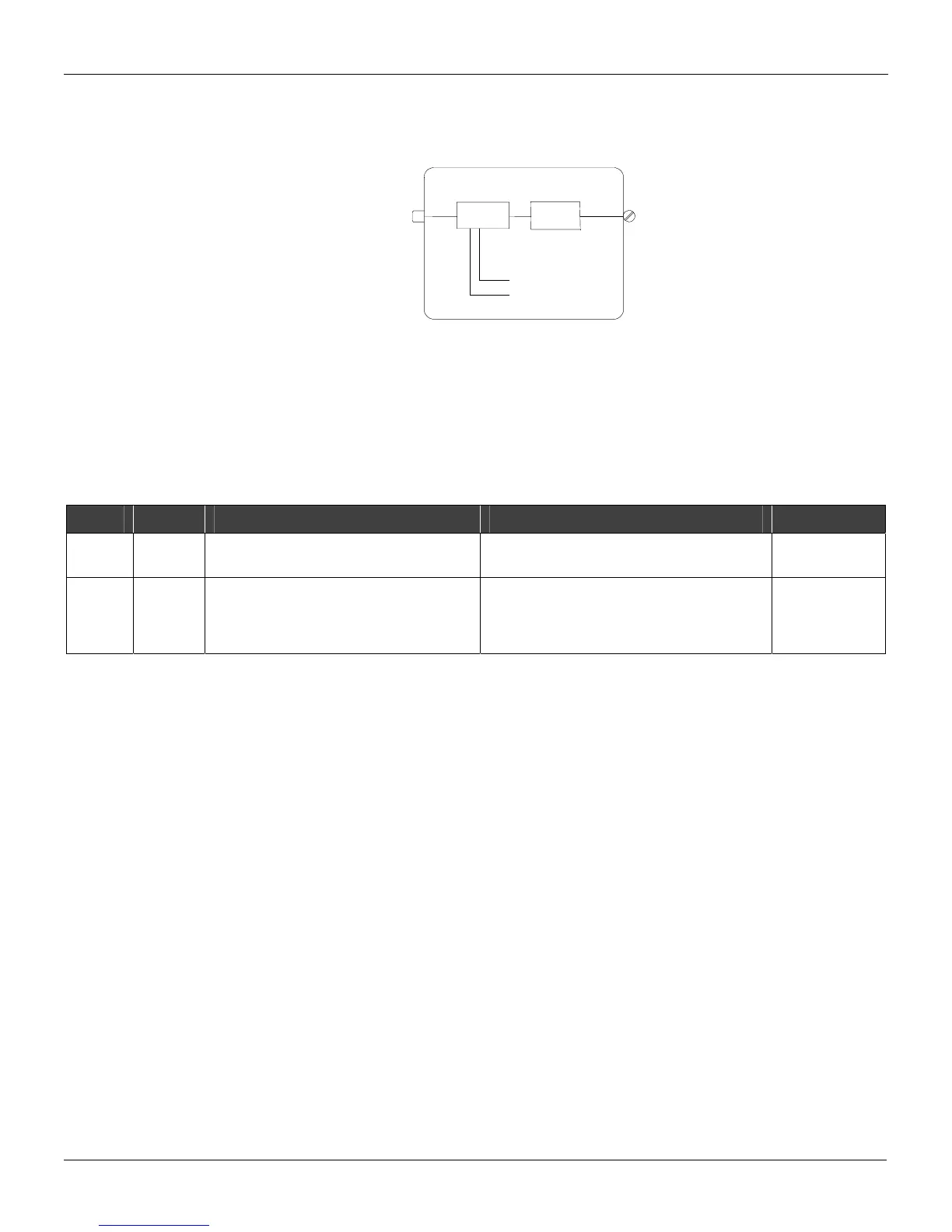

Function 03 - Voltage Output (VO)
A
0 %
BLK 013/014/015/016
6 /7/8/9
VOLTAGE
DRIVER
CALIBRATION
100 %
Operation
The block input in percentage is calibrated and converted into an analog voltage signal sent to the
terminal block.
This block includes a parameter, which allows signal type selection, i.e., it makes 0-100%
correspond to 1-5 Vdc/0-5 Vdc (direct type) or to 5-1 Vdc/ 5-0 vdc (reverse type).
The corresponding output shall be calibrated as per the specifications to 1-5 Vdc or to 0-5 Vdc (see
Calibration Section for further details).
TYPE MNEM DESCRIPTION RANGE DEFAULT
I LIA Input A - output signal
Address
0 to 170/225 to 240
0
I CVTP Type of output
0 - Direct (1 to 5V)
1 - Reverse (5 to 1V)
2 - Direct (0 to 5V)
3 - Reverse (5 to 0V)
0
Number of Bytes per Type of Parameter: A = 0 C = 2 L = 2
