Library of Function Blocks
4.75

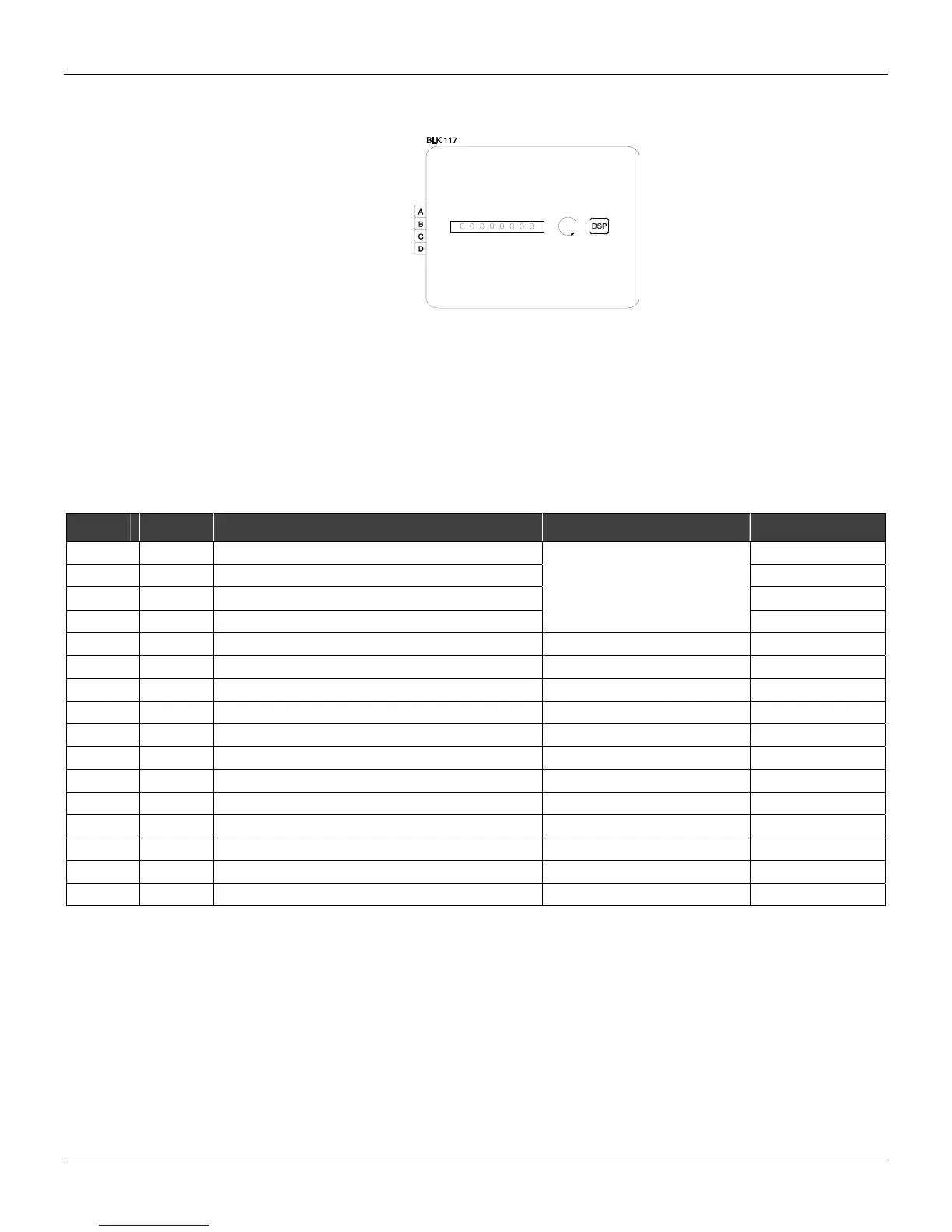

Function 32 - General Visualization (GV)
Operation
This block is used to display variables common to all loops configured. The variables connected to
A, B, C and D of this block will be on the display of any loop, in the scroll sequence after the
variables of that particular loop. Therefore this block must always work associated to a loop
visualization block.
As it is common to more than one loop, it must be configured in the General Loop (Loop G).
The variables are shown on the display, in engineering units, and with a programmable 3-character
mnemonic.
TYPE MNEM DESCRIPTION RANGE DEFAULT
I LIA Input A 0
I LIB Input B 0
I LIC Input C
Addresses
0
0 to 170 / 225 to 240
I LID Input D 0
M AMNA Mnemonic for A *** VGA
R A-AZ 0% for input A in engineering units -10000 to +10000 0
R A-AM 100% for input A in engineering units -10000 to +10000 100.00
M AMNB Mnemonic for B *** VGB
R A-BZ 0% for input B in engineering units -10000 to +10000 0
R A-BM 100% for input B in engineering units -10000 to +10000 100.00
M AMNC Mnemonic for C *** VGC
R A-CZ 0% for input C in engineering units -10000 to +10000 0
R A-CM 100% for input C in engineering units -10000 to +10000 100.00
M AMND Mnemonic for D *** VGD
R A-DZ 0% for input D in engineering units -10000 to +10000 0
R A-DM 100% for input D in engineering units -10000 to +10000 100.00
Number of Bytes per Type of Parameter: A = 48 C = 0 L = 8
