Installation
9.7

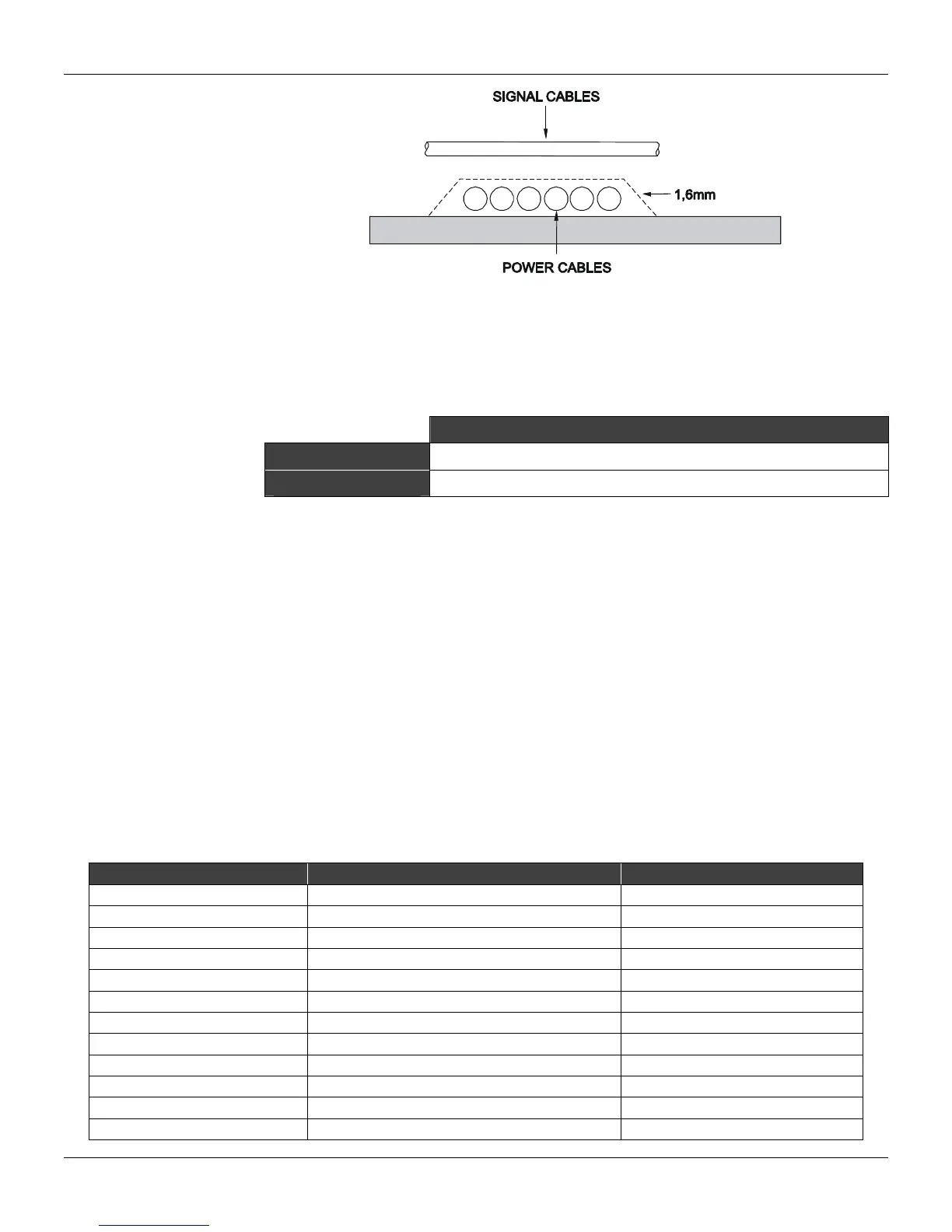

Fig. 9.10 – Arrangements of the non-shielded cables on the tray
TRANSPORTATION AND STORAGE
Requirements for Transportation and Storage
The transportation, storage and temporary stop of the controllers should follow certain environment
conditions described below:
Transportation and storage in packages supplied by Smar
Environment Temperature
-25 to 70° C
Environment Humidity 5 to 95% RH
Table 9.2 – Environment Conditions for Transportation and Storage
Caution in the Transportation
• Always carry the controllers on the packages supplied by Smar according to the position indicated
on the box;
• Always protect the product from sunlight, moisture, shocks and vibration when transporting;
• If the boxes need to be opened for some reason, be sure to re-package, according to what was
previously packaged by Smar.
Storage Precautions
• Always keep the packages indoors, away from direct sunlight, corrosive gases, shocks and
vibrations;
• Be sure to place the packages in the indicated position;
• If a package is opened for re-packing, it should follow the same Smar packing pattern;
• When storing the controllers out of the package, make sure they are in the same installation
position (protected from dust).
CD600 Versus CD600 Plus
The CD600 Plus’s main differences from the CD600 (which should help on the installation) are:
Item CD600Plus CD600
Power Supply Universal 85 to 264 Vac 50/60 Hz / 24 Vdc 110 or 220 Vac / 24 Vdc
Alphanumeric Display Matrix 5x7 Dots 16 segments
Digital Inputs 8 galvanically isolated (needs an external power supply) 4 non isolated
PC Configurator Windows NT,2000, XP DOS
Function Blocks 4 New Blocks -
Backup - Available with an extra PC board
Compatibility Imports configurations from the CD600 Does not apply
Length 250cm 480cm
Weight 1600g 3600g
Front color Brown Black
Housing Galvanized with transparent protection Block with Epoxi
Rear terminal blocks (see diagrams) Detachable in 5 parts 1 Block screwed to the panel
