Section 1
1.1
OPERATION
CD600 Plus Front Panel
The CD600 Plus front panel has 3 bargraphs, an alphanumeric display, a group of keys for adjustment
and control and LEDs for signaling.

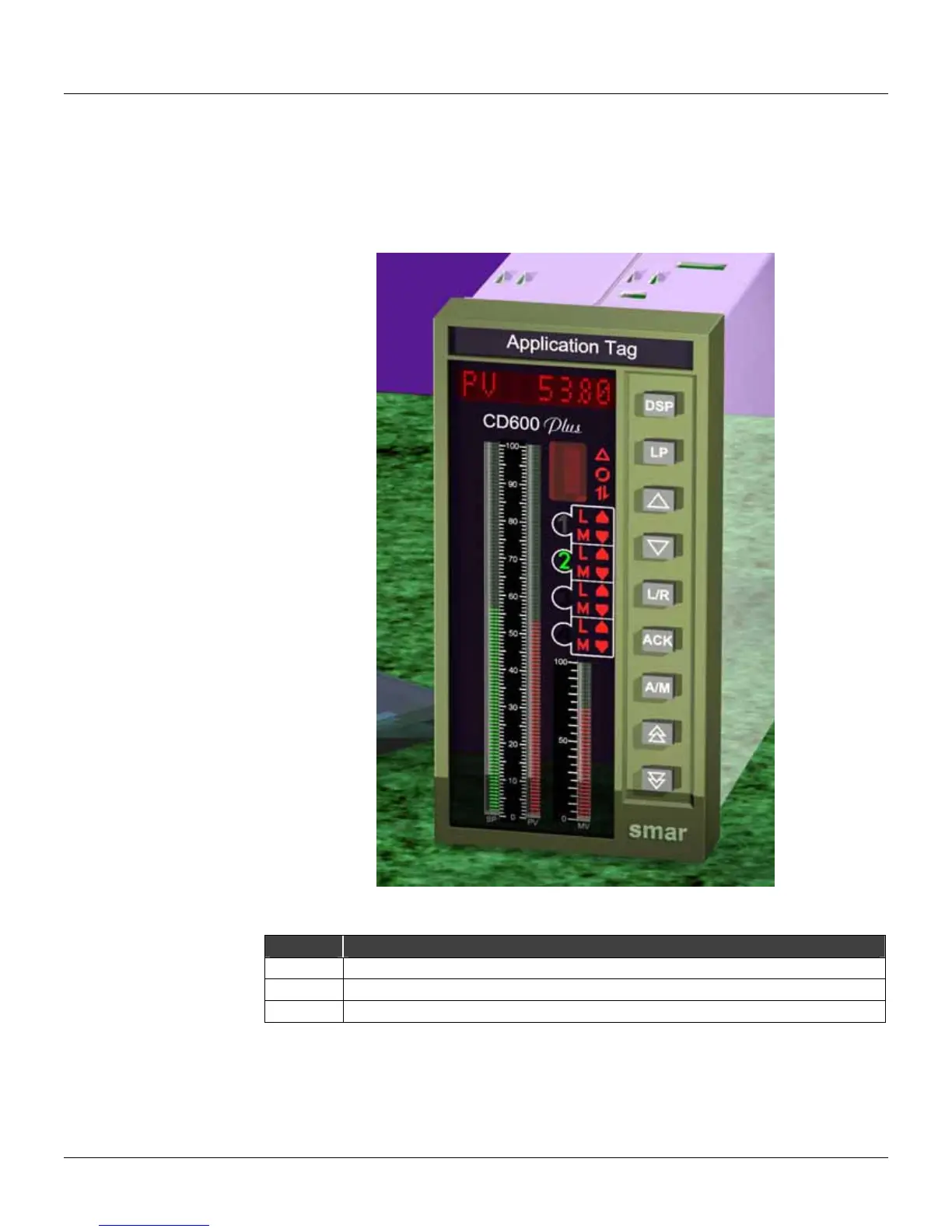

Fig 1.1 - Front Panel
Bargraph Description
SP
Indication of monitored loop's Setpoint it is indicated on the green 101 LEDs bargraph.
PV
Indication of the monitored loop's Process Variable. It is indicated on the red 101 LED's bargraph.
MV
Indication of the monitored loop's Manipulated Variable. It is indicated on the red 41 LEDs bargraph.
Since the visualization of each loop can be freely configured by the user. The 3 bargraphs may also be
used for other purposes.
