Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 118 P/N 79000035_SM, Version 1.5
2 Mount the
extension spring.
Hook the extension
spring in to the leaver
(A), see Fig. 5-83 on
page 5-111 andsee Fig.
5-84 on page 5-113 .
The open loop of the
spring shows away
from Tilt sensor.
3 Preparation for
adjustment.
A. Screw in the bolt
screw.
B. Turn the adjusting
screw clockwise till
the screw head of
the bolt screw
A
contacts the holder.
The screw head limits
the adjustment range
of the Coarse drive
Hz.
The gap between
screw head and holder
disappears, see red
arrow.
The pinion of
Course drive is far
from the Tension
gear position.

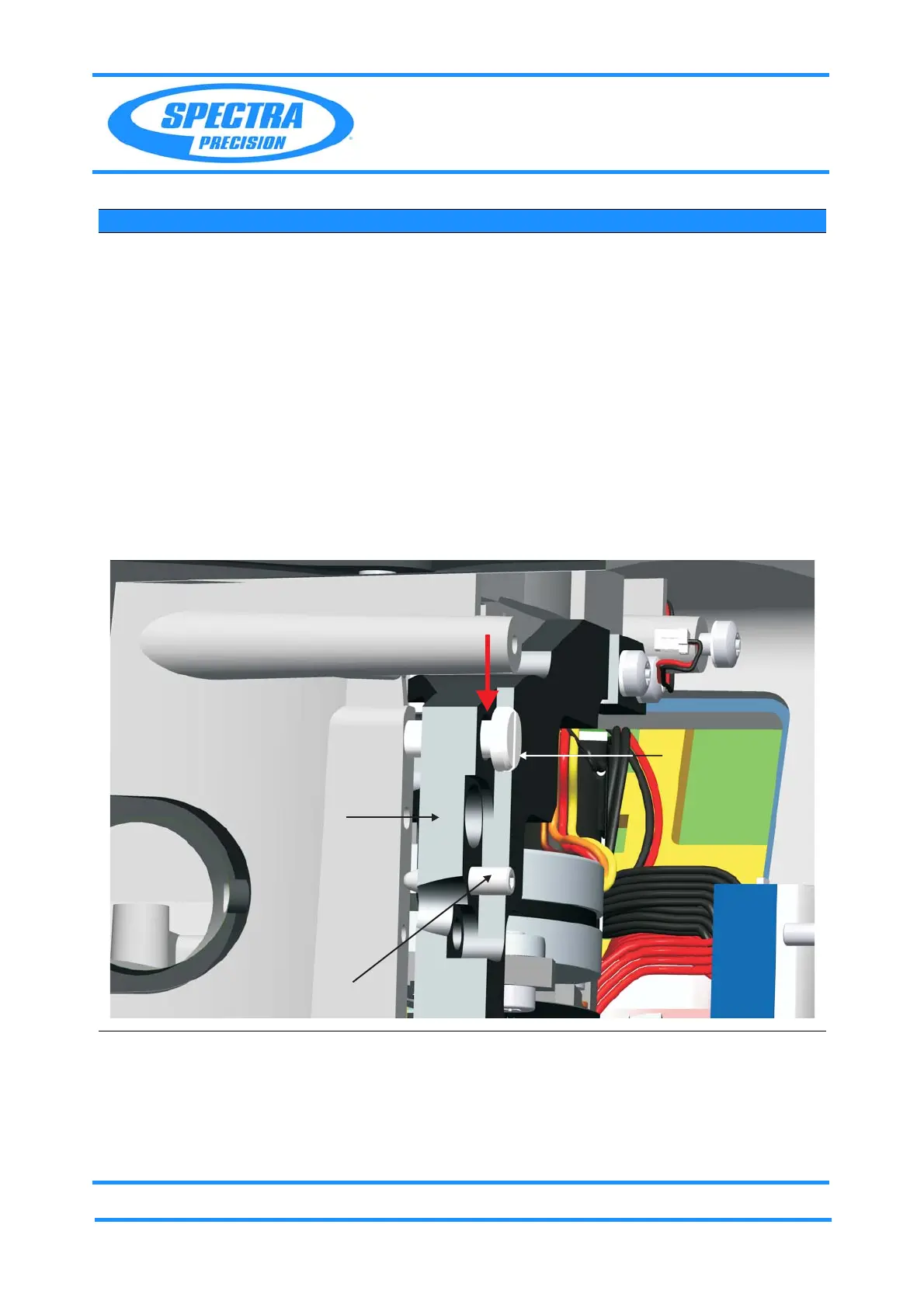

Fig. 5-88 Preparation for adjustment
Item Performance Action Result Notes
A
Adjusting screw
B
Holder
