Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 119 Focus 30/35 Service Manual
4 Preparation for
adjustment.
A. Screw in the bolt
screw with the
compression
spring.
B. Screw in the fixing
screw till the screw
head contacts the
holder.
The spring pressures
the holder in direction
of the alhidade.
Do not tight the screw
now.The fixing screw
locks the adjusted
position of the holder
after adjustment
routine.
Screw driver flat
Torque wrench T8
60 Ncm/5,31bfn

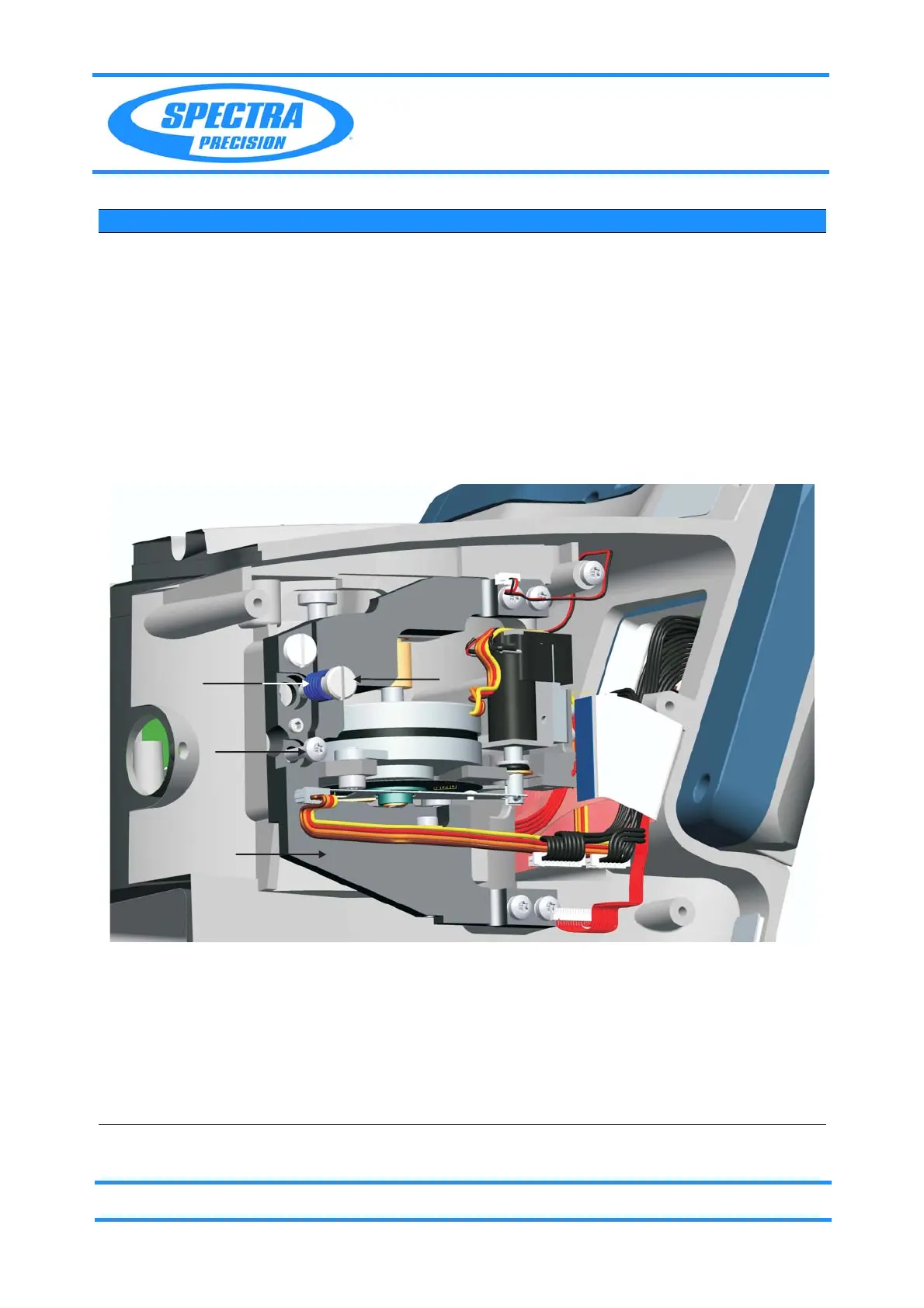

Fig. 5-89 Preparation for adjustment
5 Remount Slip
contacts Hz board.
see page 5-72 After remounting the
Slip contacts Hz
board the adjustment
of the Hz Coarse drive
lever has to be done,
see page 6-125
6 Remount the Base
part F30.
see page 5-47
Item Performance Action Result Notes
A
Compression
spring
B
Holder
