Communication Ports - Spectralink IP-DECT Server
200
The Spectralink IP-DECT Server utilizes a number of different protocols and ports on the network
(see illustration below).
These ports MUST not be blocked by firewalls or other network equipment.

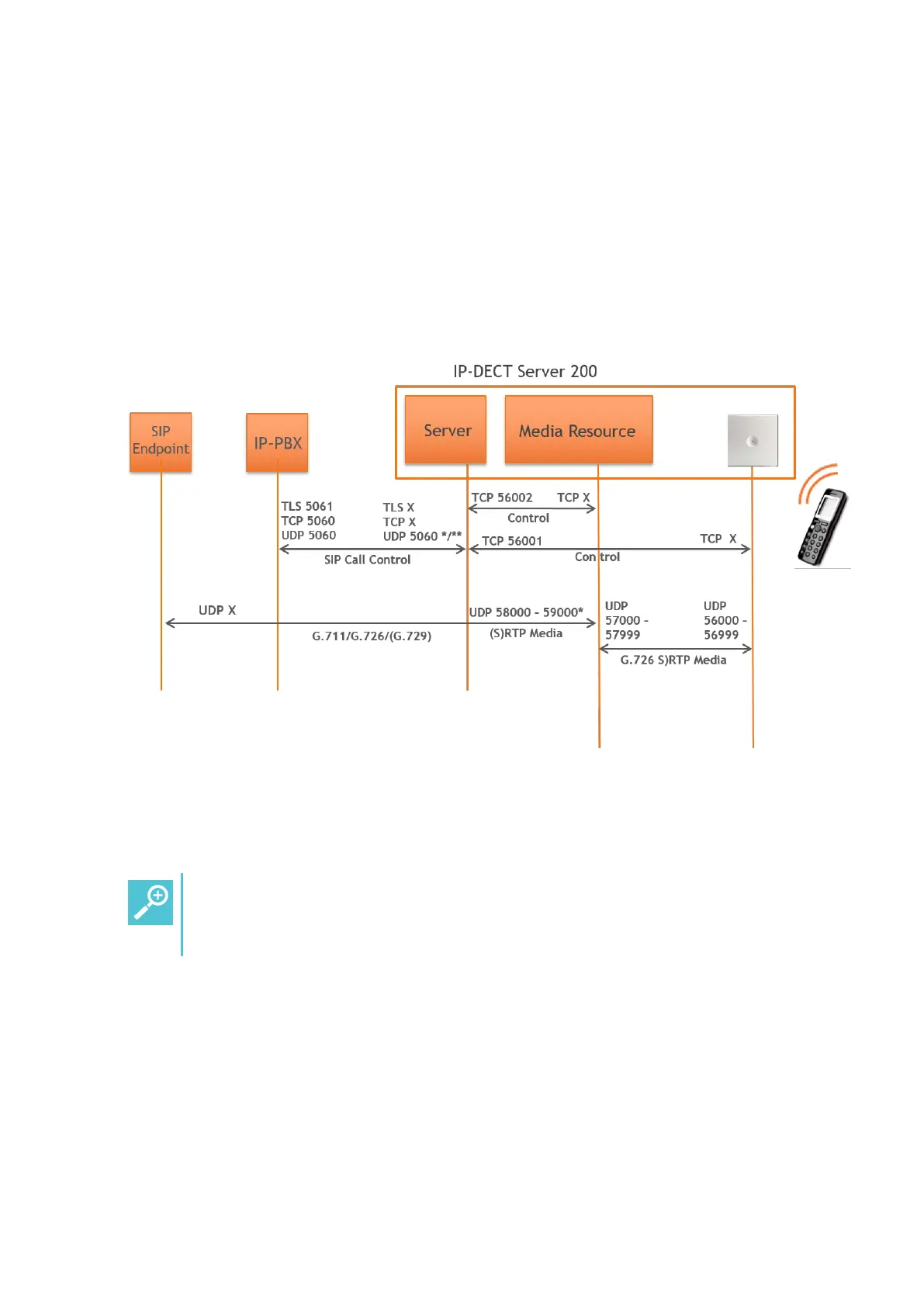

Example of protocols and ports for a Spectralink IP-DECT Server 200:
*) Default configurable
**) If SIP per port registration is checked = 5060 + X (Number of SIP Registrations)
Spectralink IP-DECT Server 200 system can utilize the following protocols:HTTP/HTTPS,
FTP/TFTP, UPnP, MSF (TCP port 56003), syslog (UDP port 514), NTP, LDAP and SNMP.
Tip:
Use the communication port illustration as a reference when configuring your network for
a Spectralink IP-DECT Server 200 solution.
