SpectraLink IP-DECT 200 - Adding Aditional Spectralink DECT Media Resources

14215700-IG, Edition 8.0
April 2018, Original document
58
Adding Aditional Spectralink DECTMedia Resources
The Spectralink IP-DECT Server 6500 can be upgraded with up to two additional Spectralink
DECTMedia Resources to increase speech capacity. Each Spectralink DECTMedia Resource
provides 32 speech channels and is purchased seperately.

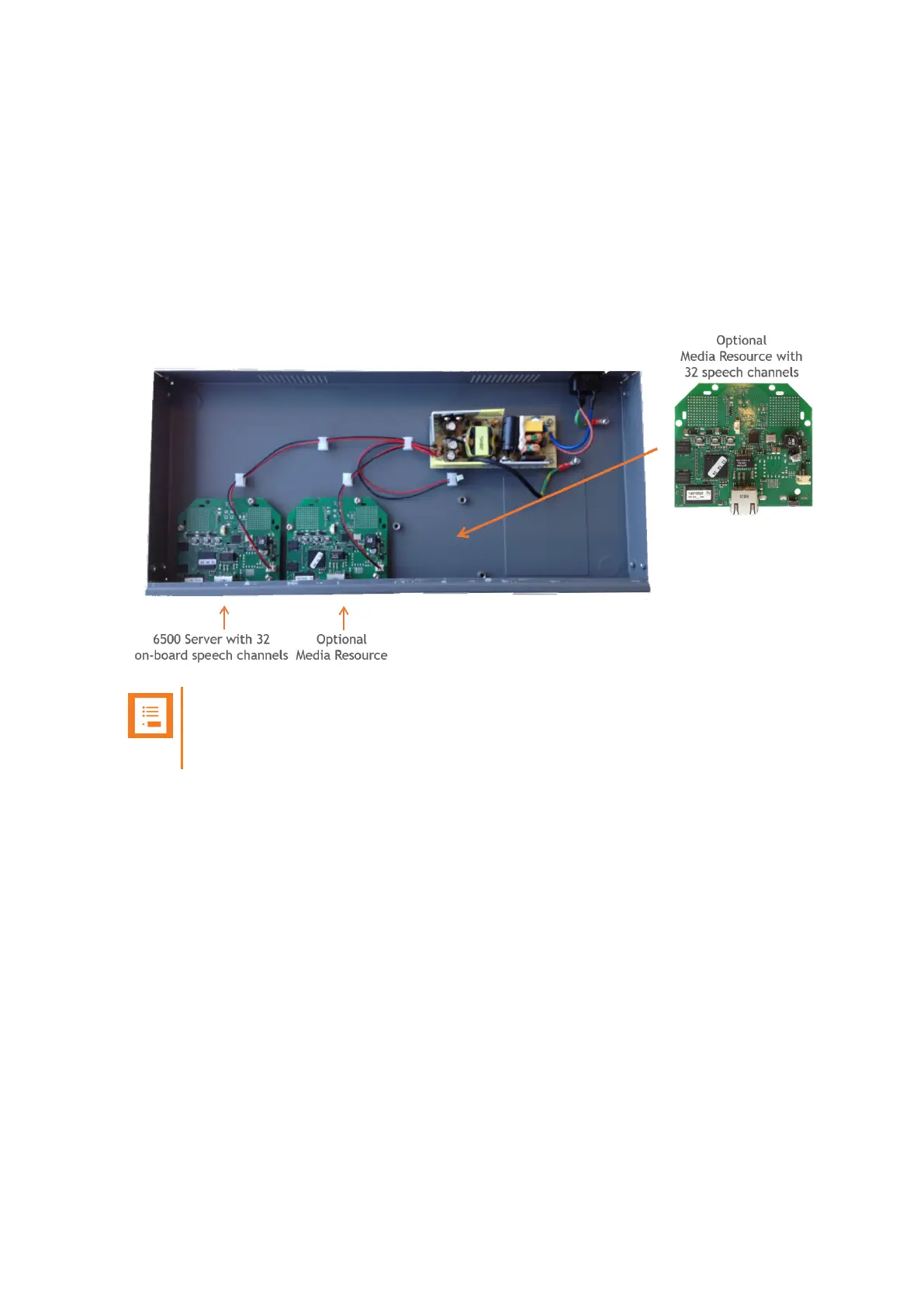

Below is an image of the Spectralink IP-DECT Server 6500 cabinet. The Spectralink IP-DECT
Server 6500 itself resides to the far left, which is standard, and the two optional Spectralink
DECTMedia Resources reside in the middle and to the far right.
Note:
It is possible to have cabinets with Spectralink DECTMedia Resources only, but they can
only be used in conjunction with a Spectralink IP-DECT Server 6500.
Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide
