14215700-IG, Edition 8.0
April 2018, Original document
35
Communication Ports - Spectralink IP-DECT Server
400/6500
The Spectralink IP-DECT Server utilizes a number of different protocols and ports on the network
(see illustration below).
These ports MUST not be blocked by firewalls or other network equipment.

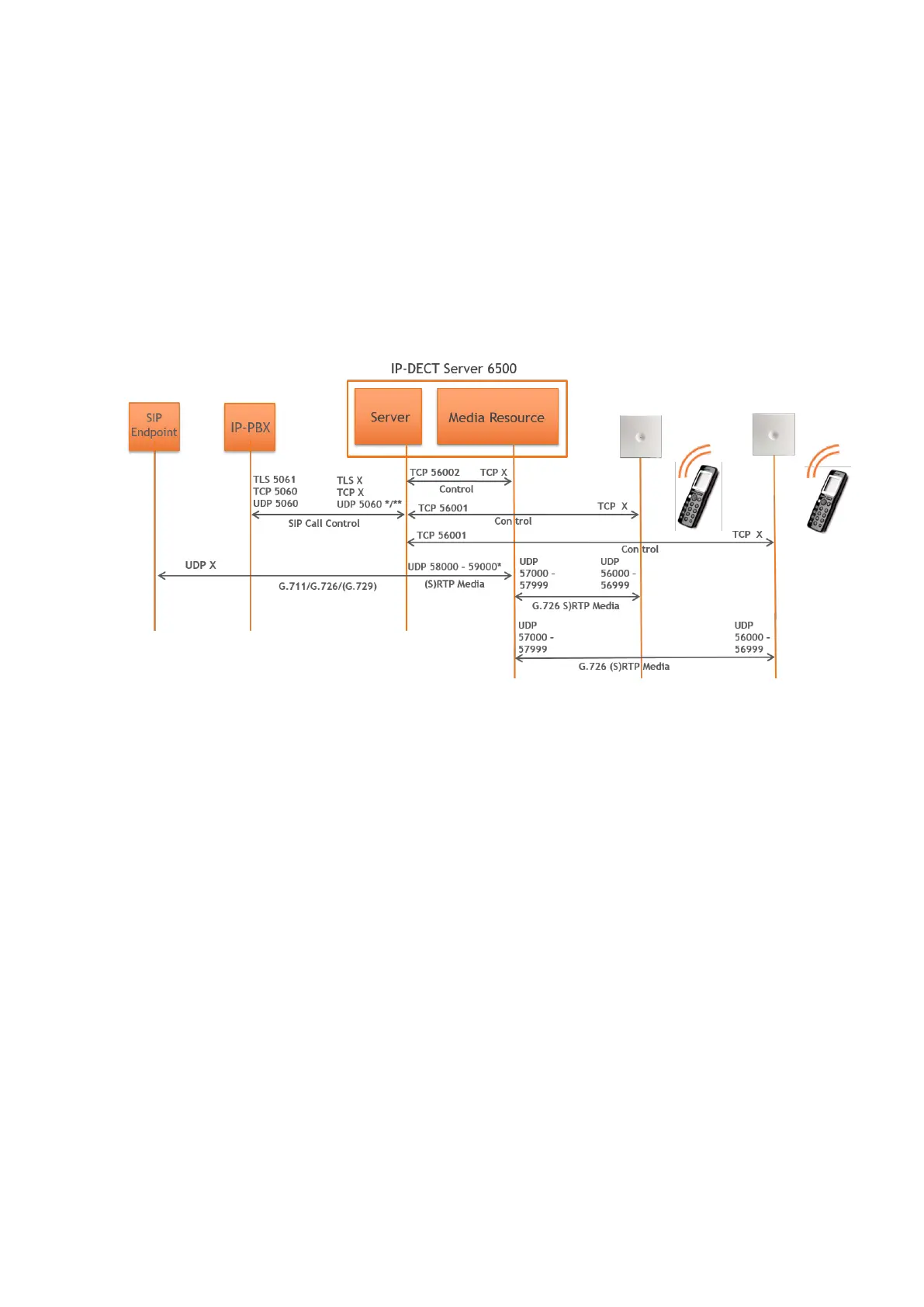

Example of protocols and ports for a Spectralink IP-DECT Server 6500:
*) Default configurable
**) If SIP per port registration is checked = 5060 + X (Number of SIP Registrations)
Spectralink IP-DECT Server 6500 system can utilize the following protocols:HTTP/HTTPS,
FTP/TFTP, UPnP, MSF (TCP port 56003), syslog (UDP port 514), NTP, LDAP and SNMP.
Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide
