14215700-IG, Edition 8.0
April 2018, Original document
36

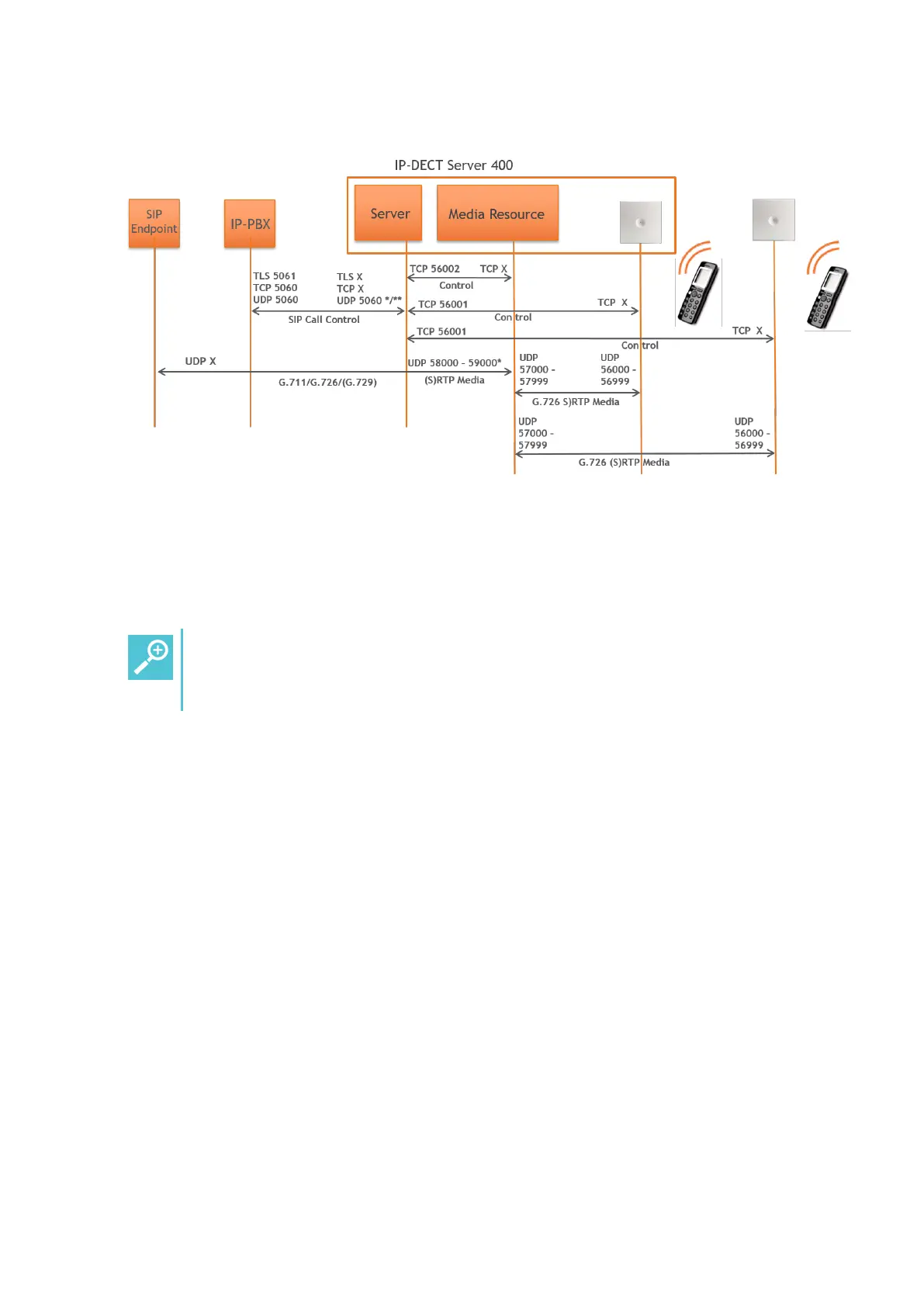

Example of protocols and ports for a Spectralink IP-DECT Server 400:
*) Default configurable
**) If SIP per port registration is checked = 5060 + X (Number of SIP Registrations)
Spectralink IP-DECT Server 400 system can utilize the following protocols:HTTP/HTTPS,
FTP/TFTP, UPnP, MSF (TCP port 56003), syslog (UDP port 514), NTP, LDAP and SNMP.
Tip:
Use the communication port illustration as a reference when configuring your network for
a Spectralink IP-DECT Server 400/6500 solution.
Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide
