How to Connect External Antenna to Device
Connect the external antenna cable to the antenna connector on the rear side of the Spectralink IP-
DECT Base Stations and Spectralink IP-DECT Server 200/400 and in the same way on the external
antenna.

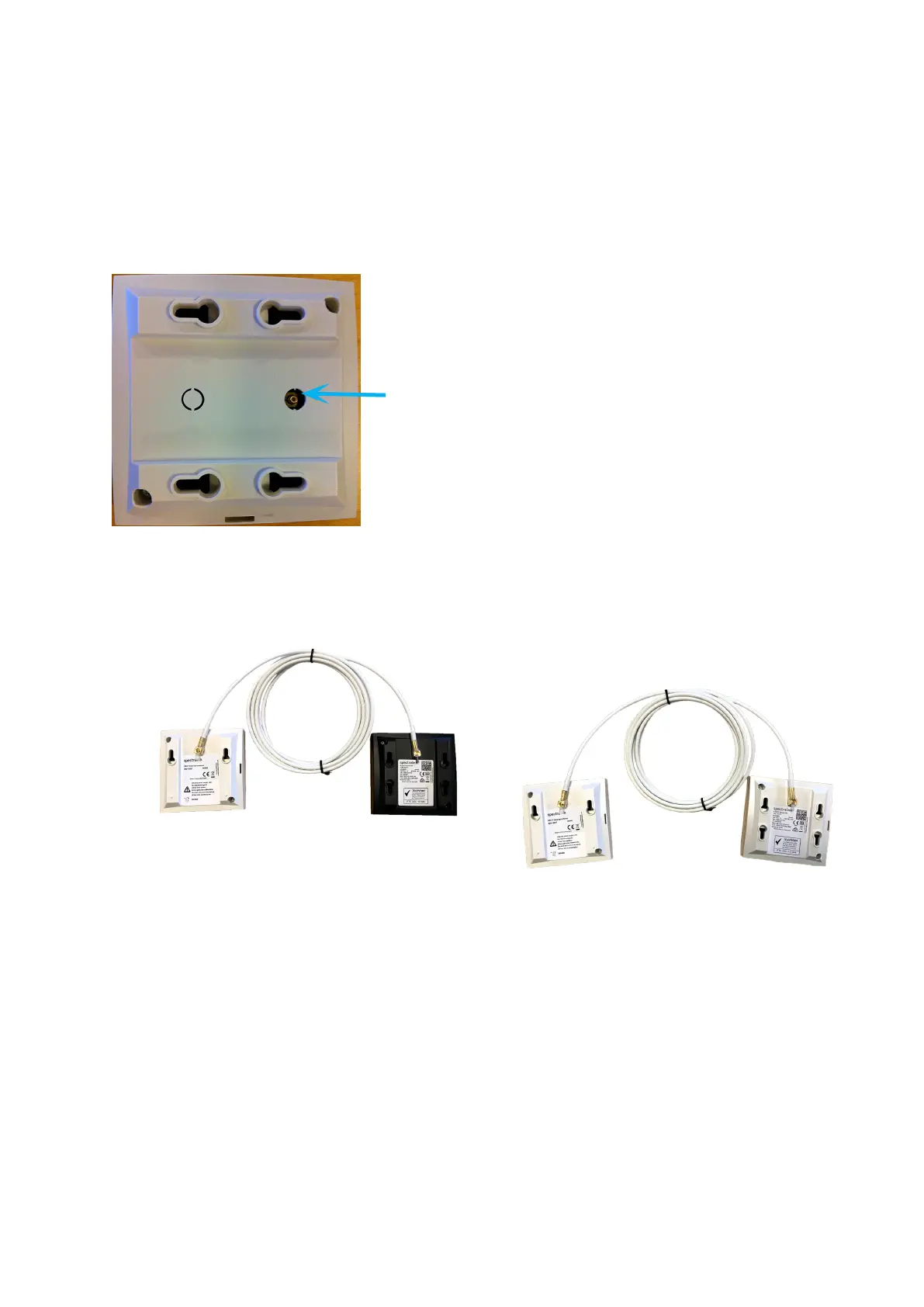

Below is an illustration of the antenna connector. Use a screwdriver to remove the plastic carefully.
Below are illustrations of a Spectralink IP-DECT Server 200 and Spectralink IP-DECT Server 400
with external antenna.
