SpectraLink IP-DECT 200

To Next Page

To Previous Page

14215700-IG, Edition 8.0

April 2018, Original document

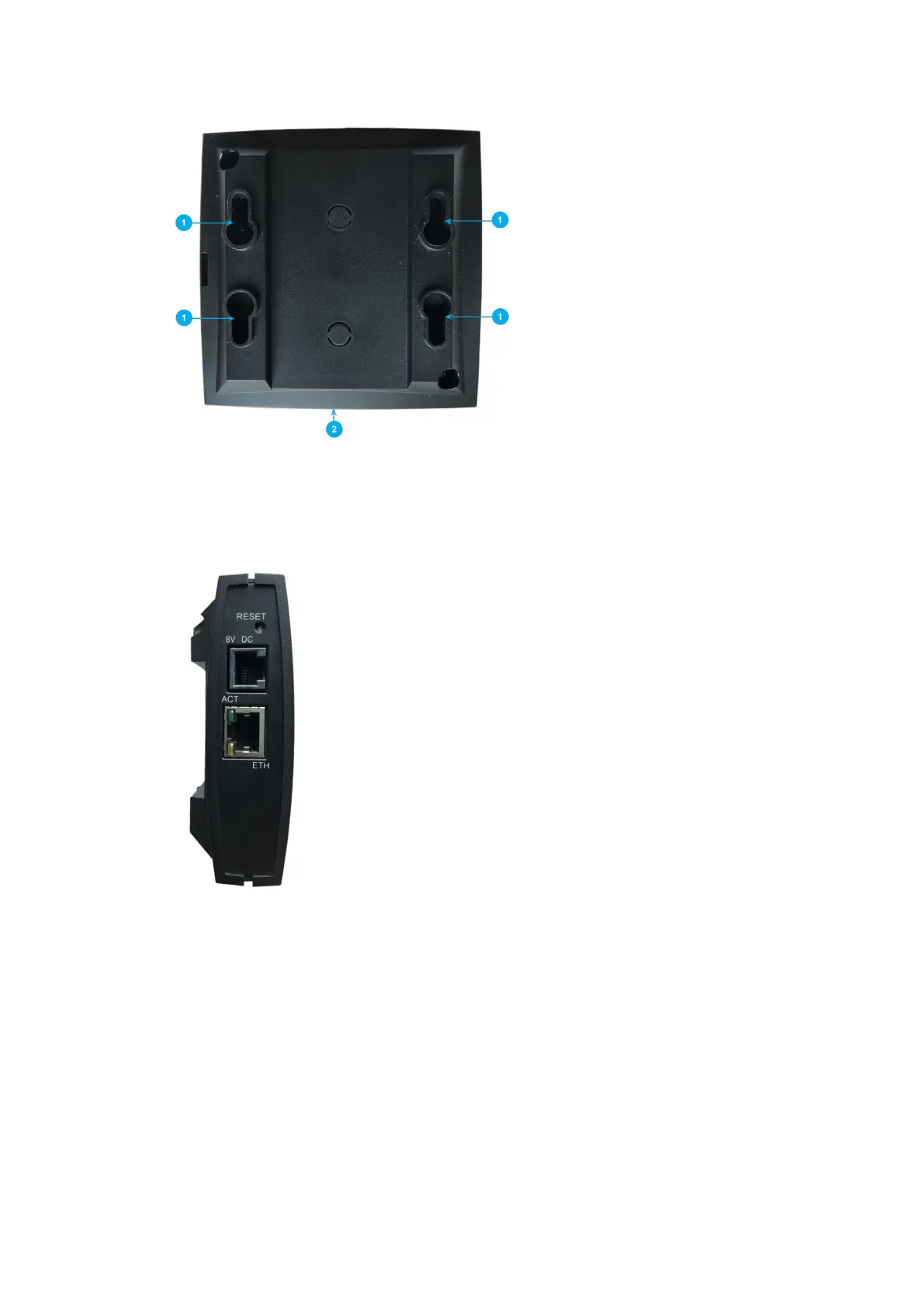

1. Holesfor wall mounted screws

2. RJ45 port

2. Connect the RJ45 plug to the ethernet connector at the bottom of the Spectralink IP-DECT

Server 200.

3. After installing the Spectralink IP-DECT Server 200 you need to power it up.

Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide
