SpectraLink IP-DECT 200

To Next Page

To Previous Page

14215700-IG, Edition 8.0

April 2018, Original document

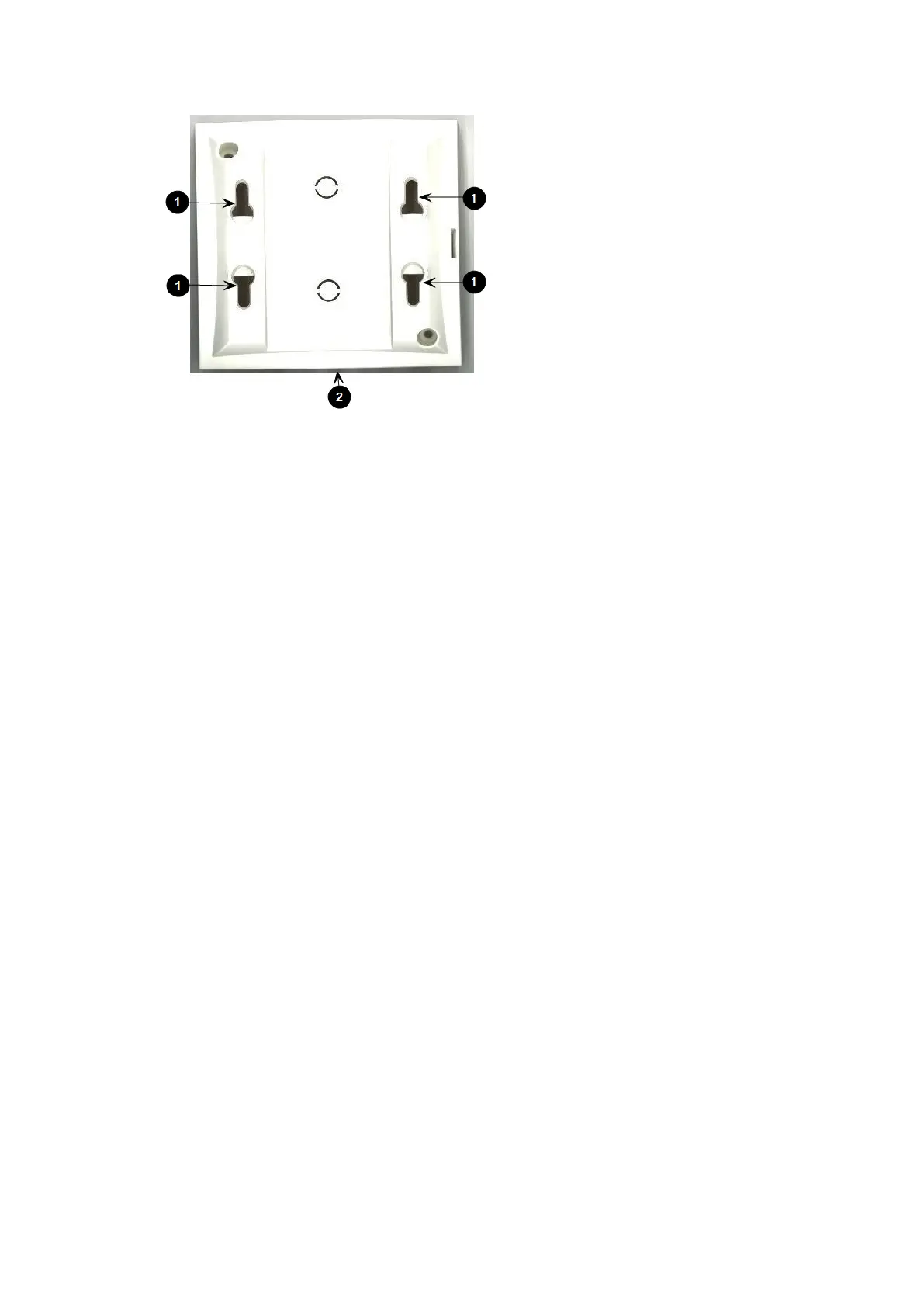

1. Holesfor wall mounted screws

2. RJ45 port

3. Connect the network cable to the RJ45 port.

4. After installing the base station you need to power it up. For more information, see "Power

Requirements for the Base Station" on page62.

Spectralink IP-DECT Server 200/400/6500 Installation and Configuration Guide
