Symbol DS7708 - Convert Unknown to Code 39

666 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

IBM 468X/469X INTERFACE 8 - 7

Convert Unknown to Code 39

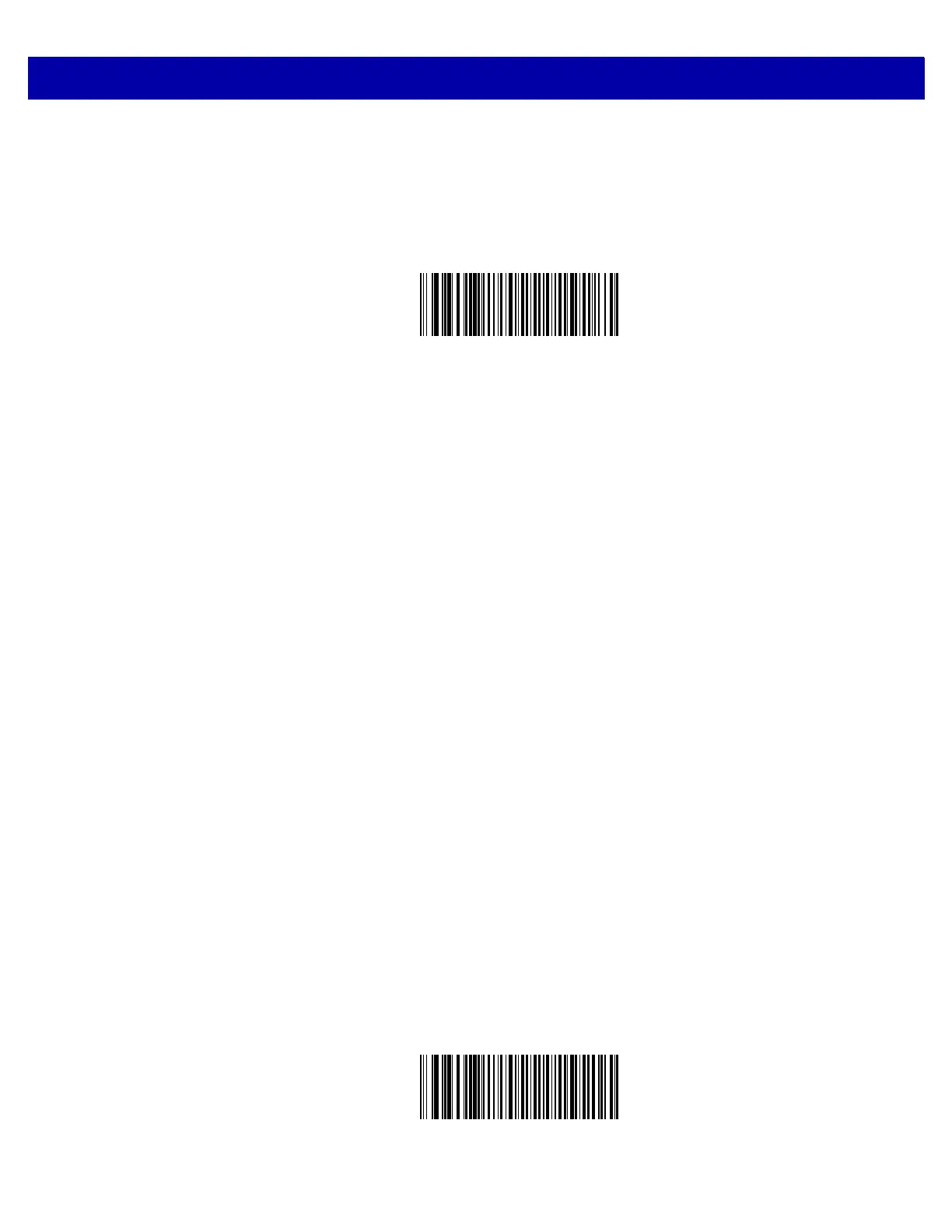

Scan a bar code below to enable or disable the conversion of unknown bar code type data to Code 39.

Options:

•

Enable Convert Unknown to Code 39

•

*Disable Convert Unknown to Code 39.

Enable Convert Unknown to Code 39

* Disable Convert Unknown to Code 39
