12 - 130 DS7708 2D Vertical Slot Scanner Product Reference Guide

Netherlands KIX Code

SSI # F0h, 46h

Parameter # 326

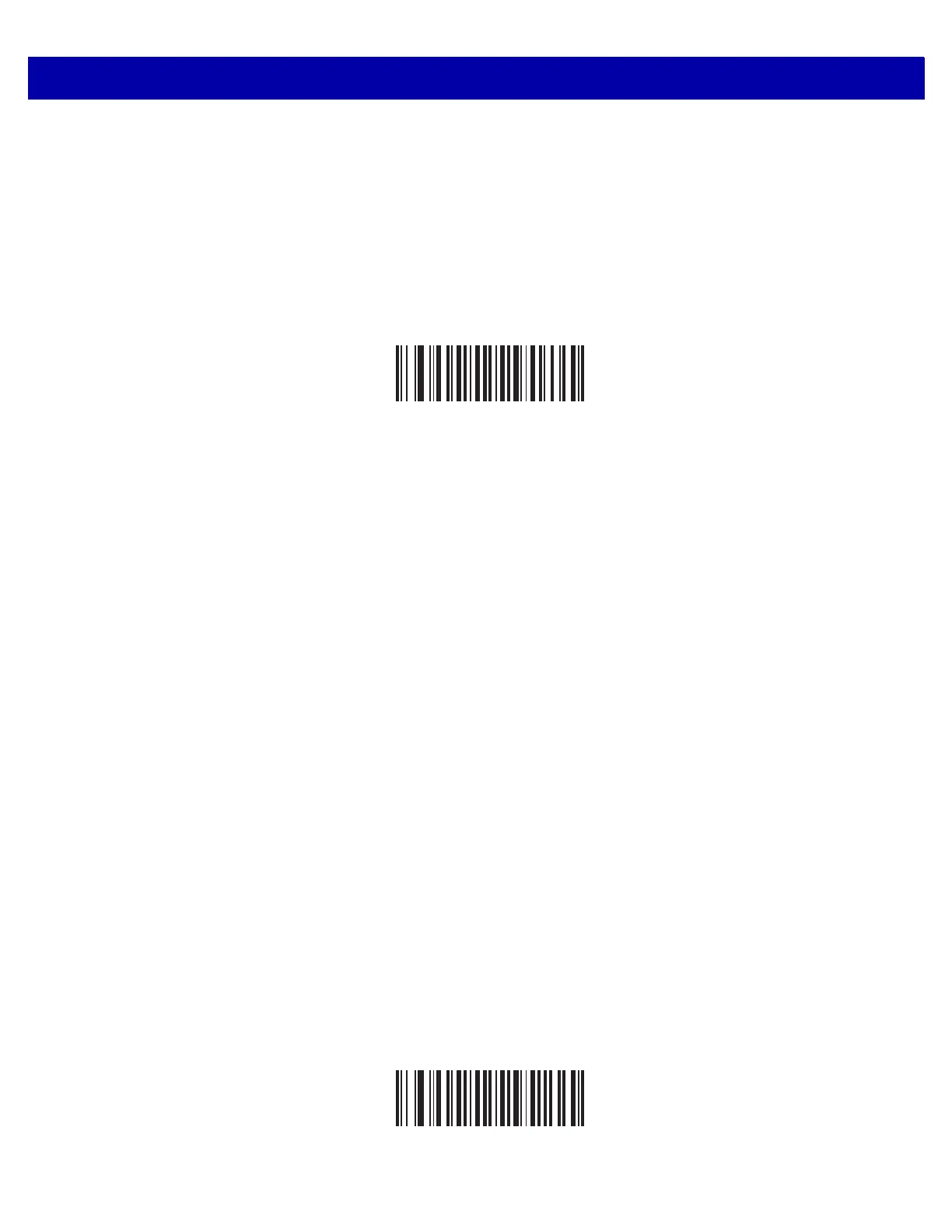

To enable or disable Netherlands KIX Code, scan the appropriate bar code below.

Options:

•

Enable Netherlands KIX Code

•

*Enable Netherlands KIX Code.

Enable Netherlands KIX Code

(01h)

*Disable Netherlands KIX Code

(00h)
