Connecting to an IBM 468X/469X Host
The DS7708 connects directly to an IBM host interface. This configuration requires an external power supply
regardless of whether peripherals are attached.

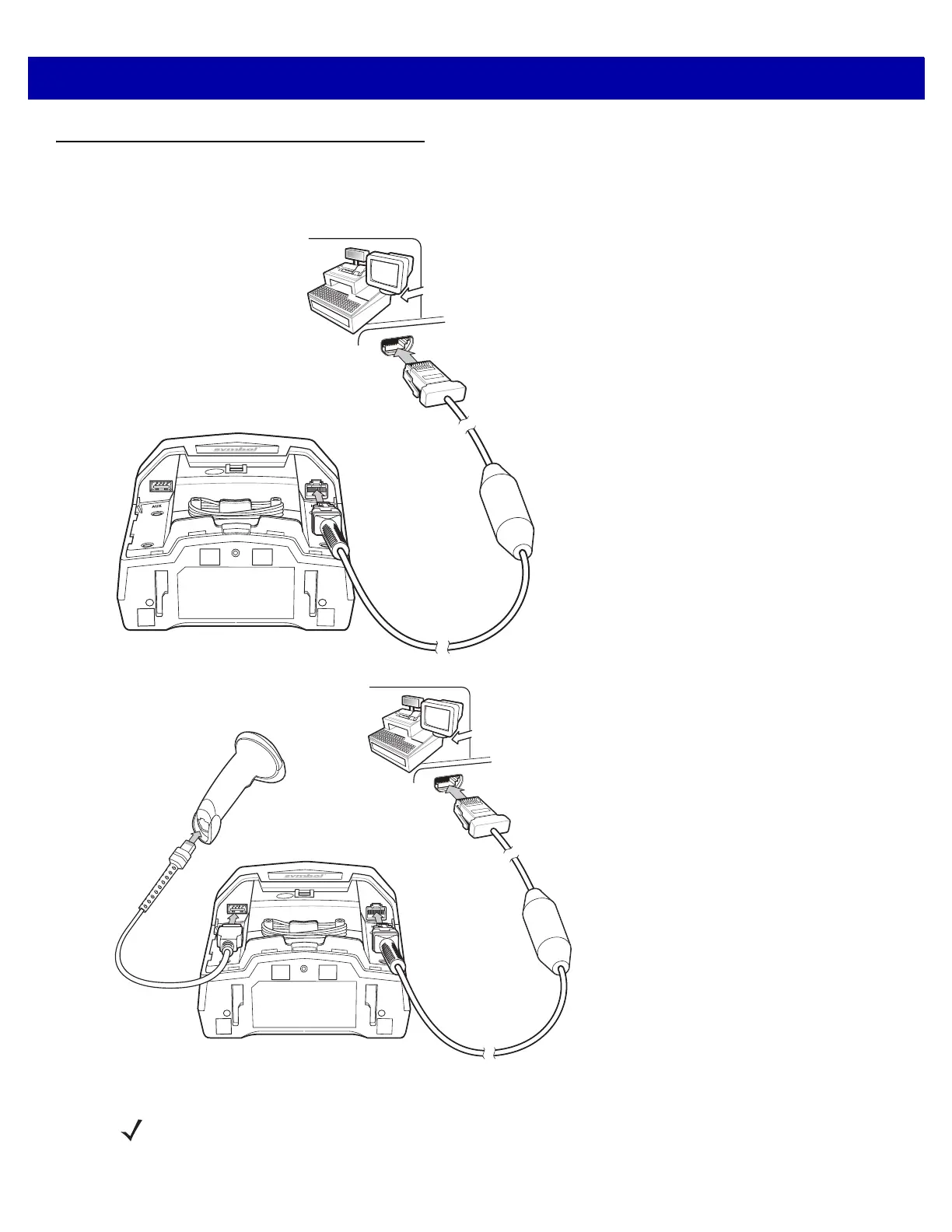

Figure 8-1 IBM Connection - Host Supplies Power
Figure 8-2 IBM Connection with Optional Auxiliary Scanner
NOTE Interface cables vary depending on configuration. The connectors may be different from the examples
illustrated, but the steps to connect the scanner are the same. See IBM Cables on page viii for cable
information and part numbers.
