12 - 114 DS7708 2D Vertical Slot Scanner Product Reference Guide
Set Lengths for Matrix 2 of 5
SSI # L1 = F1h 6Bh, L2 = F1h 6Ch
Parameter # L1 = 619, L2 = 620
The length of a code refers to the number of characters (i.e., human readable characters), including check
digit(s) the code contains. Set lengths for Matrix 2 of 5 to any length, one or two discrete lengths, or lengths
within a specific range. The range for Matrix 2 of 5 lengths is 4 - 55
Options:
•
One Discrete Length - Select this option to decode only Matrix 2 of 5 symbols containing a selected
length. Select the length using the numeric bar codes in Appendix G, NUMERIC BAR CODES. For
example, to decode only Matrix 2 of 5 symbols with 14 characters, scan Matrix 2 of 5 - One
Discrete
Length, then scan 1 followed by 4. To correct an error or to change the selection, scan Cancel on
page G-10.
•
Two Discrete Lengths - Select this option to decode only Matrix 2 of 5 symbols containing either of
two selected lengths. Select lengths using the numeric bar codes in Appendix G, NUMERIC BAR
CODES. For example, to decode only Matrix 2 of 5 symbols containing
either 2 or 14 characters, select
Matrix 2 of 5 - Two Discrete Lengths, then scan
0, 2, 1, and then 4. To correct an error or to
change the selection, scan Cancel on page G-10.
•
*Length Within Range - Select this option to decode a Matrix 2 of 5 symbol with a specific length
range. Select lengths using the numeric bar codes in Appendix G, NUMERIC BAR CODES. For
exa
mple, to decode Matrix 2 of 5 symbols containing between 4 and 12 characters, first scan Matrix 2
of
5 - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To
correct an error or change the selection, scan Cancel on page G-10.
•
Any Length - Scan this option to decode Matrix 2 of 5 symbols containing any number of characters
within the decoder’s capability.

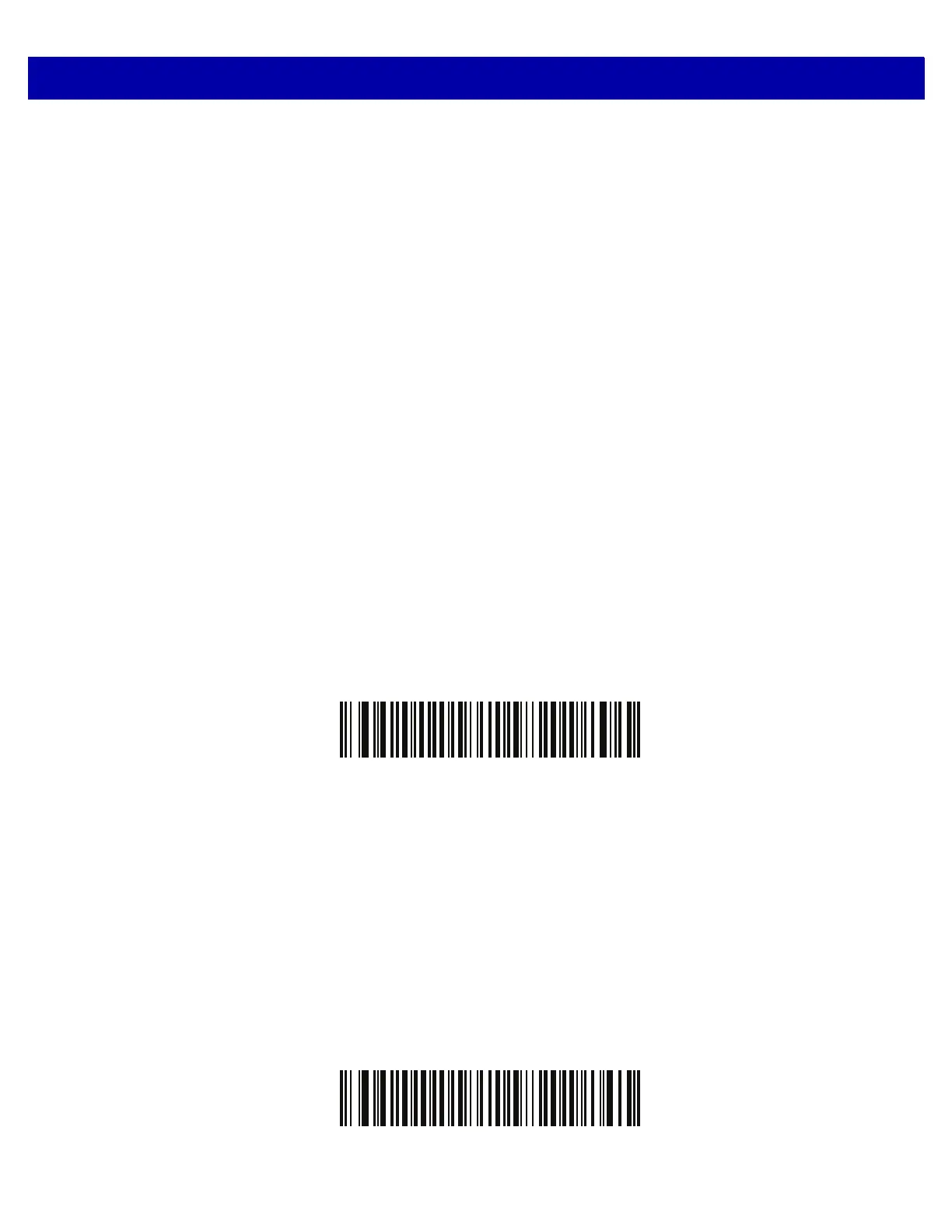

Matrix 2 of 5 - One Discrete Length
Matrix 2 of 5 - Two Discrete Lengths
To Next Page
