10 - 20 DS7708 2D Vertical Slot Scanner Product Reference Guide
Host RTS Line State
SSI # 9Ah
Parameter # 154
This parameter sets the expected idle state of the Serial Host RTS line.
The SSI Interface is used with host applications which also implement the SSI pr
otocol. However, you can use
the decoder in a "scan-and-transmit" mode to communicate with any standard serial communication software
on a host PC (see Decode Data Packet Format on page 10-21). If transmission errors occur in this mode, the
h
ost PC may be asserting hardware handshaking lines which
interfere with the SSI protocol. Scan the Host:
RTS High bar code to address this problem.
Options:
• *Host: Low RTS
• Host: High RTS.

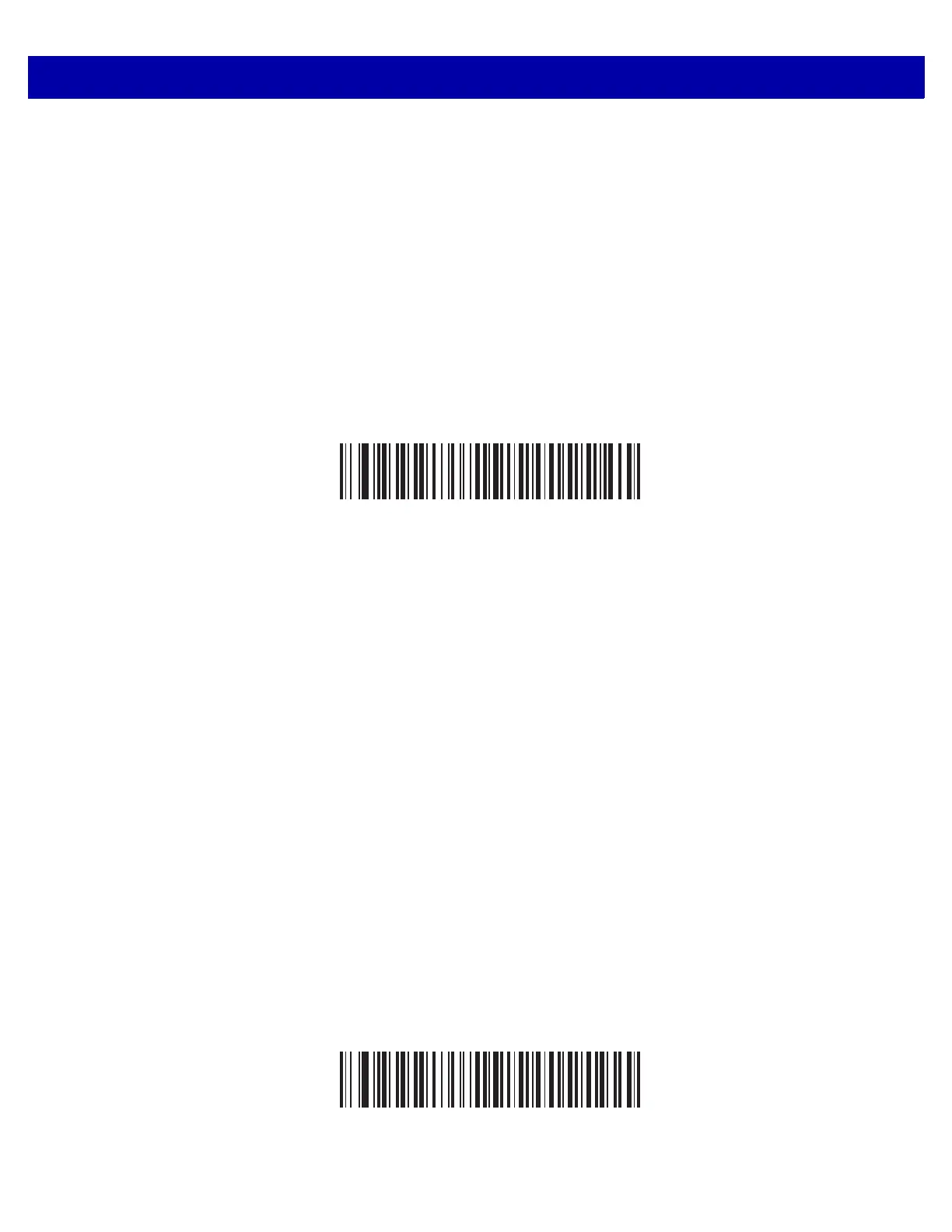

*Host: RTS Low
(00h)
Host: RTS High
(
01h)
