12 - 72 DS7708 2D Vertical Slot Scanner Product Reference Guide

Code 93

Enable/Disable Code 93

SSI # 09h

Parameter # 9

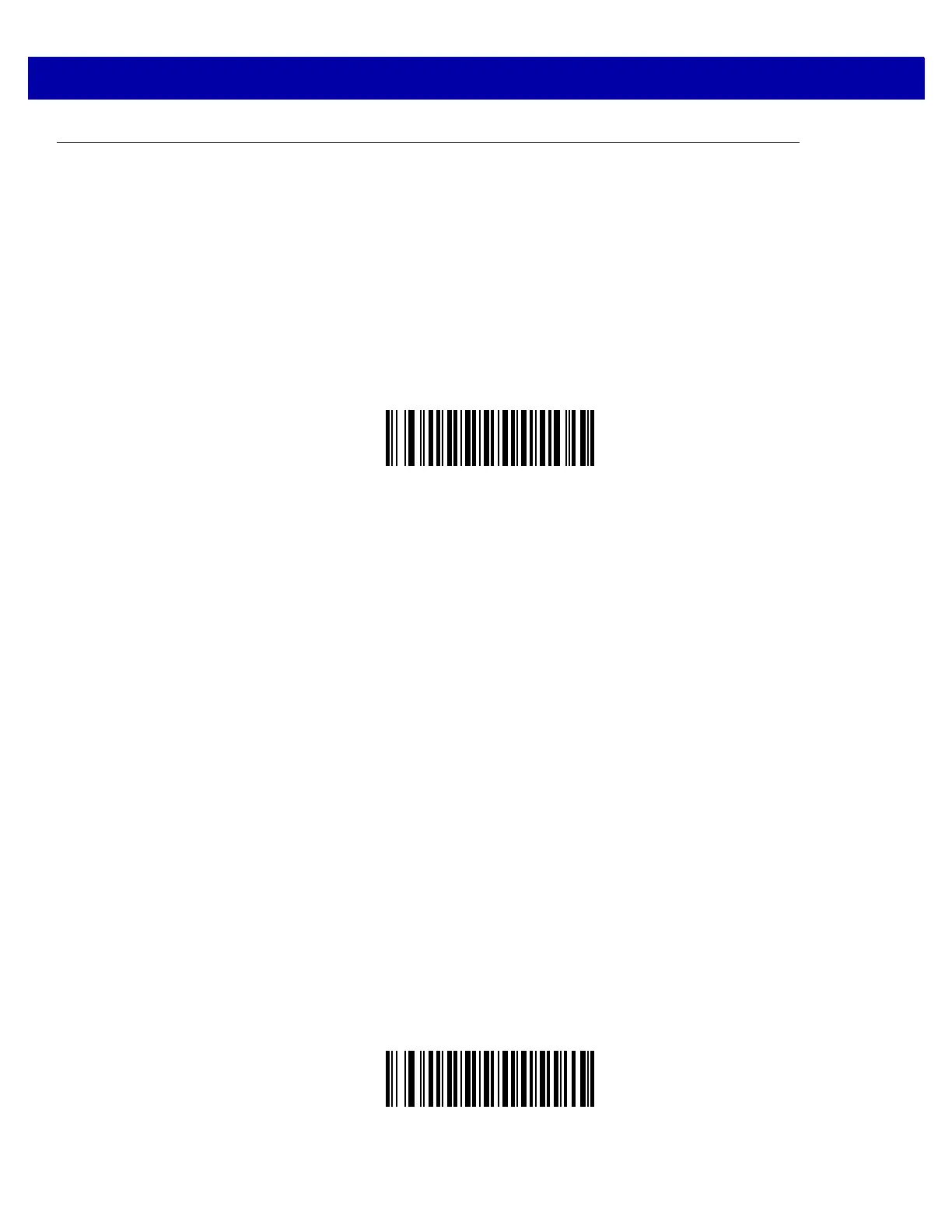

To enable or disable Code 93, scan the appropriate bar code below.

Options:

•

Enable Code 93

•

*Disable Code 93.

Enable Code 93

(01h)

*Disable Code 93

(00h)
