Symbol DS7708 - OCR Orientation

OCR PROGRAMMING 13 - 17
OCR Orientation
SSI # F1 AFh
Parameter # 687
Select one of five options to specify the orientation of an OCR string to be read:
• 0
o
to the imaging engine (default)
• 270
o
clockwise (or 90
o
clockwise) to the imaging engine
• 180
o
(upside down) to the imaging engine
• 90
o
clockwise to the imaging engine
• Omnidirectional
Setting an incorrect orientation can cause misdecodes.

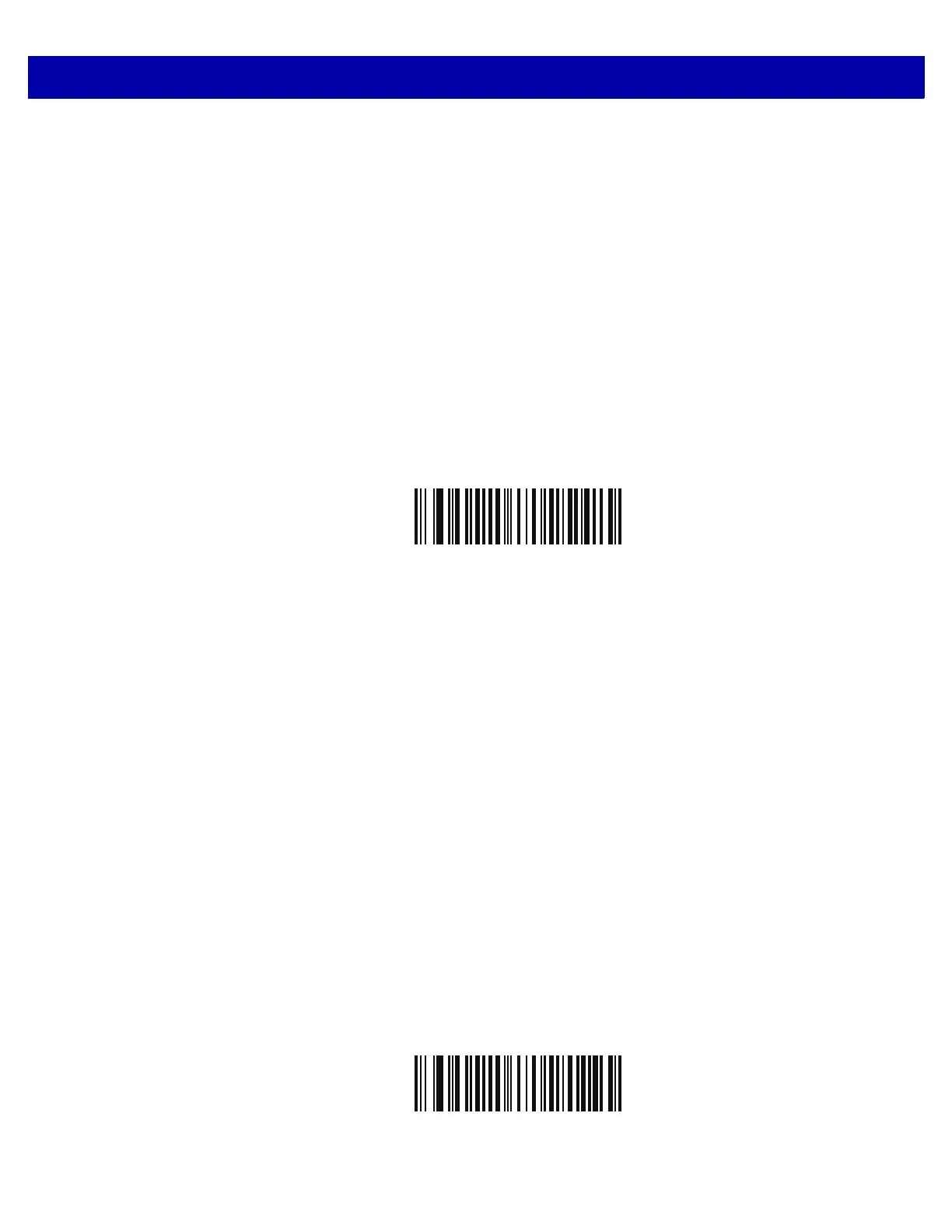

*OCR Orientation 0
o
(00h)
OCR Orientation 270
o
Clockwise
(01h)
