Symbol DS7708 - UPC;EAN;JAN Supplemental AIM ID Format

12 - 26 DS7708 2D Vertical Slot Scanner Product Reference Guide
UPC/EAN/JAN Supplemental AIM ID Format
SSI # F1h A0h
Parameter # 672
Select an output format when reporting UPC/EAN/JAN bar codes with Supplementals with Transmit Code ID
Character on page 4-27 set to
AIM Code ID Character:
• Separate - transmit UPC/EAN with supplementals with separate AIM IDs but one transmission, i.e.:
]E<0 or 4><data>]E<1 or 2>[supplemental data]
• Combined – transmit UPC/EAN with supplementals with one AIM ID and one transmission, i.e.:
]E3<data+supplemental data>
• Separate Transmissions - transmit UPC/EAN with supplementals with separate AIM IDs and separate
transmissions, i.e.:
]E<0 or 4><data>
]E<1 or 2>[supp
lemental data]

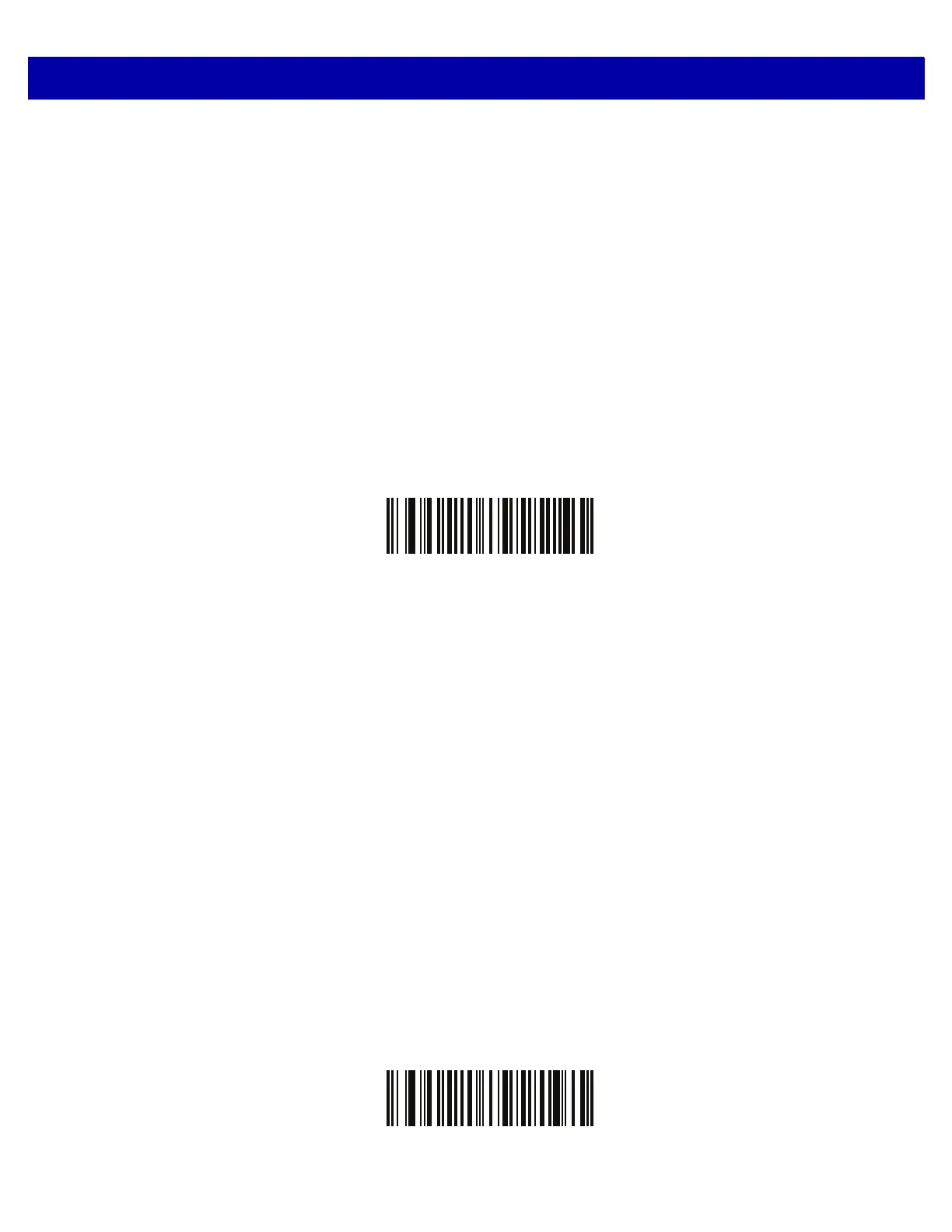

Separate
(00h)
*Combined
(01h)
