SYMBOLOGIES 12 - 59

Enable/Disable Code 39

SSI # 00h

Parameter # 0

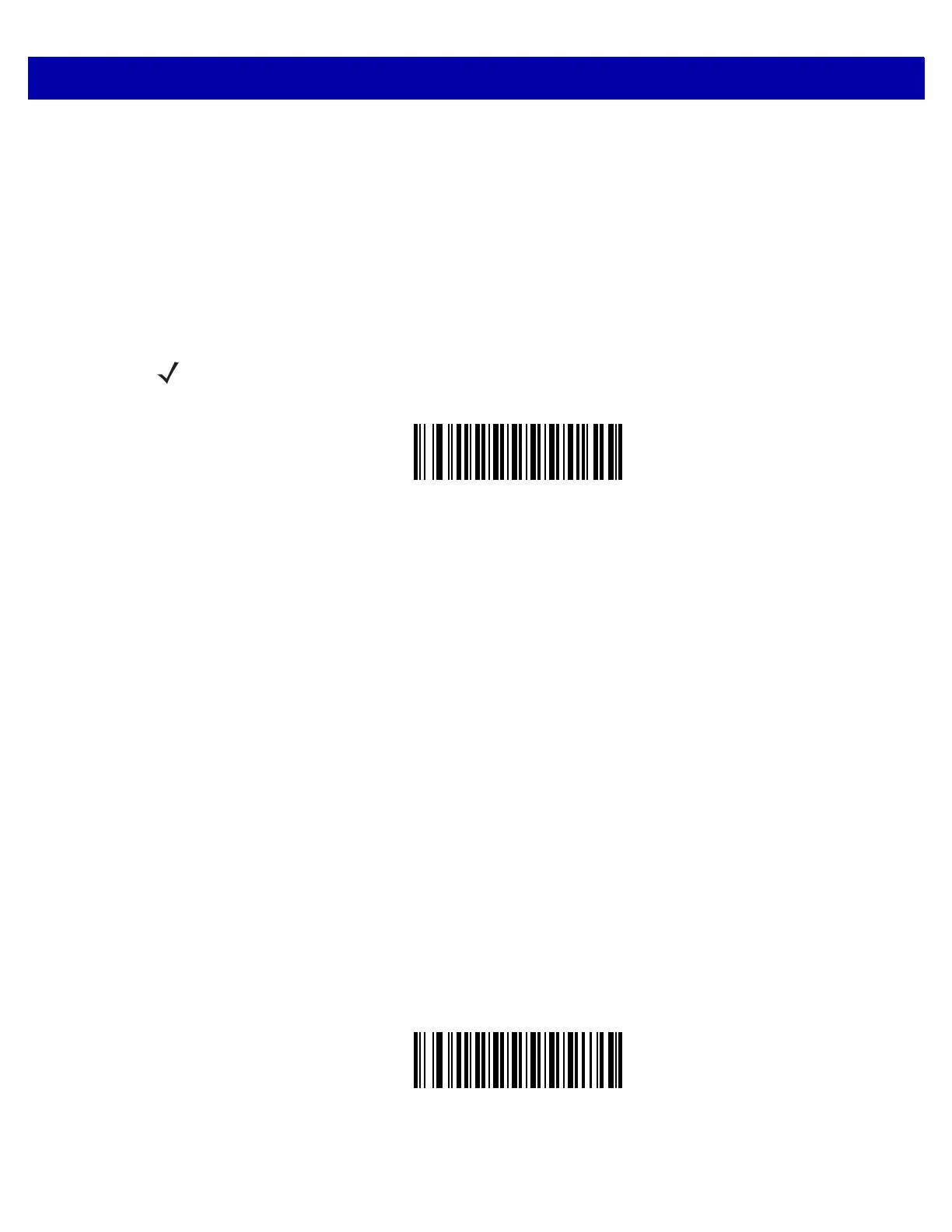

To enable or disable Code 39, scan the appropriate bar code below.

Options:

•

*Enable Code 39

•

Disable Code 39.

*Enable Code 39

(01h)

Disable Code 39

(00h)

NOTE You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously.
