11
910

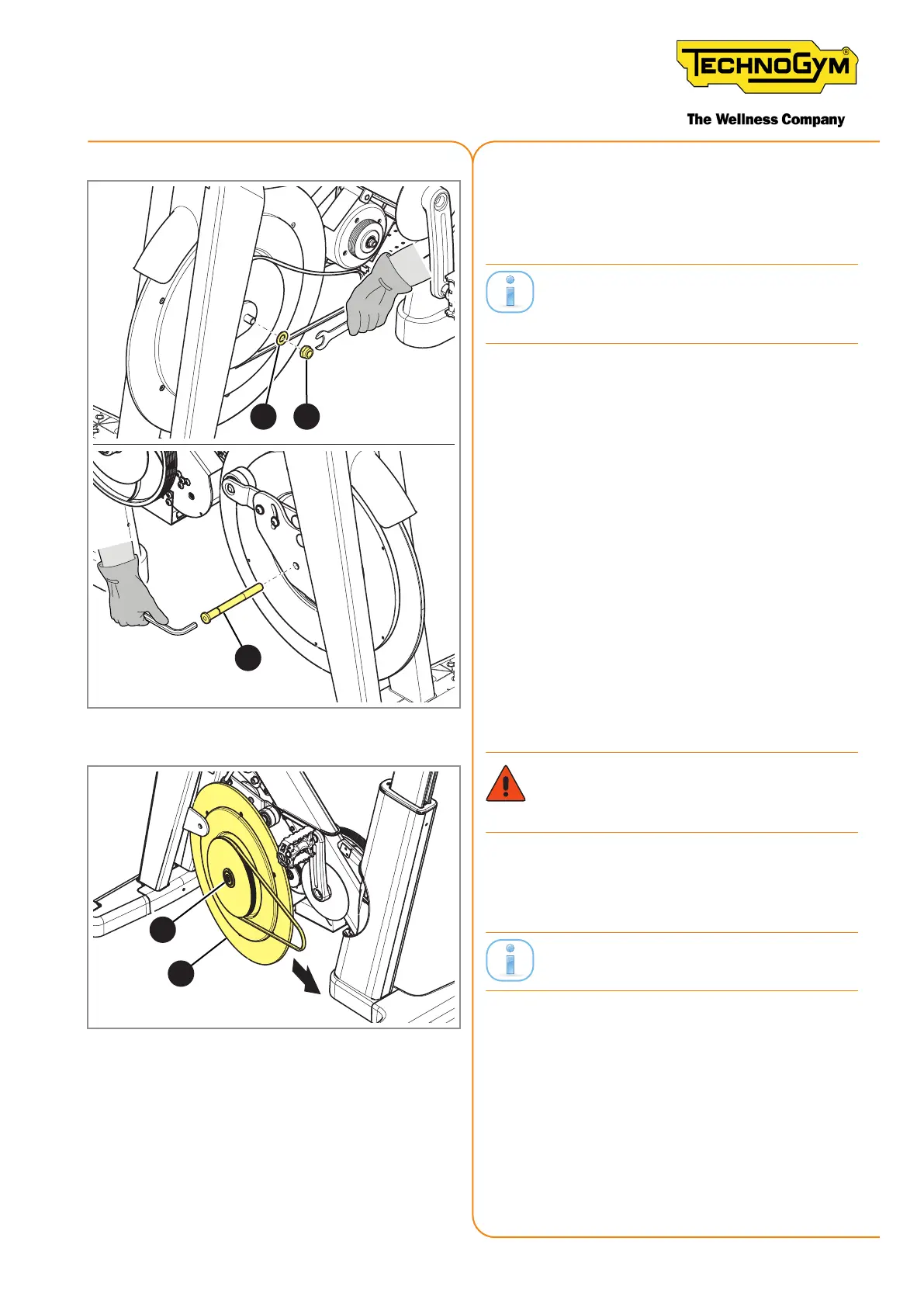

Figure 160
5. Remove the nut (9), the washer (10) and
the screw (11) with a 19 mm wrench and
a 6 mm Allen wrench.
Work from both sides counteracting the
wrenches.
12
13
Figure 161
.
6. Remove the ywheel (12), the transmis-
sion belt and - where applicable - the gen-
erator belt.
Be careful with the spacers (13).
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 163
