Technogym Group Cycle D92 - Page 172

3
3

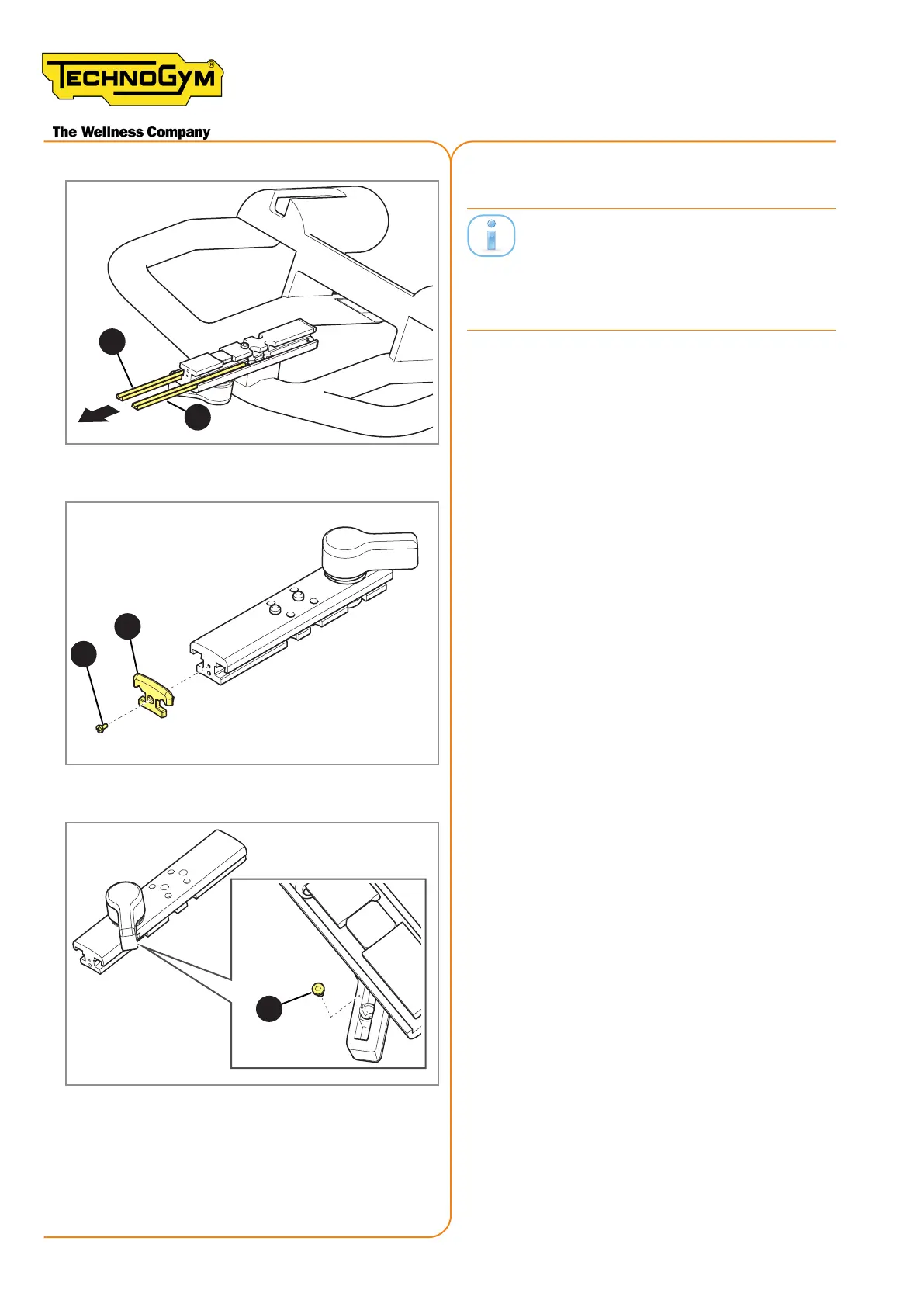

Figure 177
3. Rotate the handlebar.
4. Remove the guides (3).
5
6
Figure 178
5. Remove the screw (5) with a medium
Phillips screwdriver.
6. Remove the other cover (6).
7
Figure 179
7. Remove the screw (7) with a 2.5 mm Allen
wrench.
Use generic grease when re-assembling
the pin of the quick-release lever (10) The
grease must be applied in the lower part of
the screw but not in the thread of the screw.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 172
