Technogym Group Cycle D92 - Page 178

11
10
10

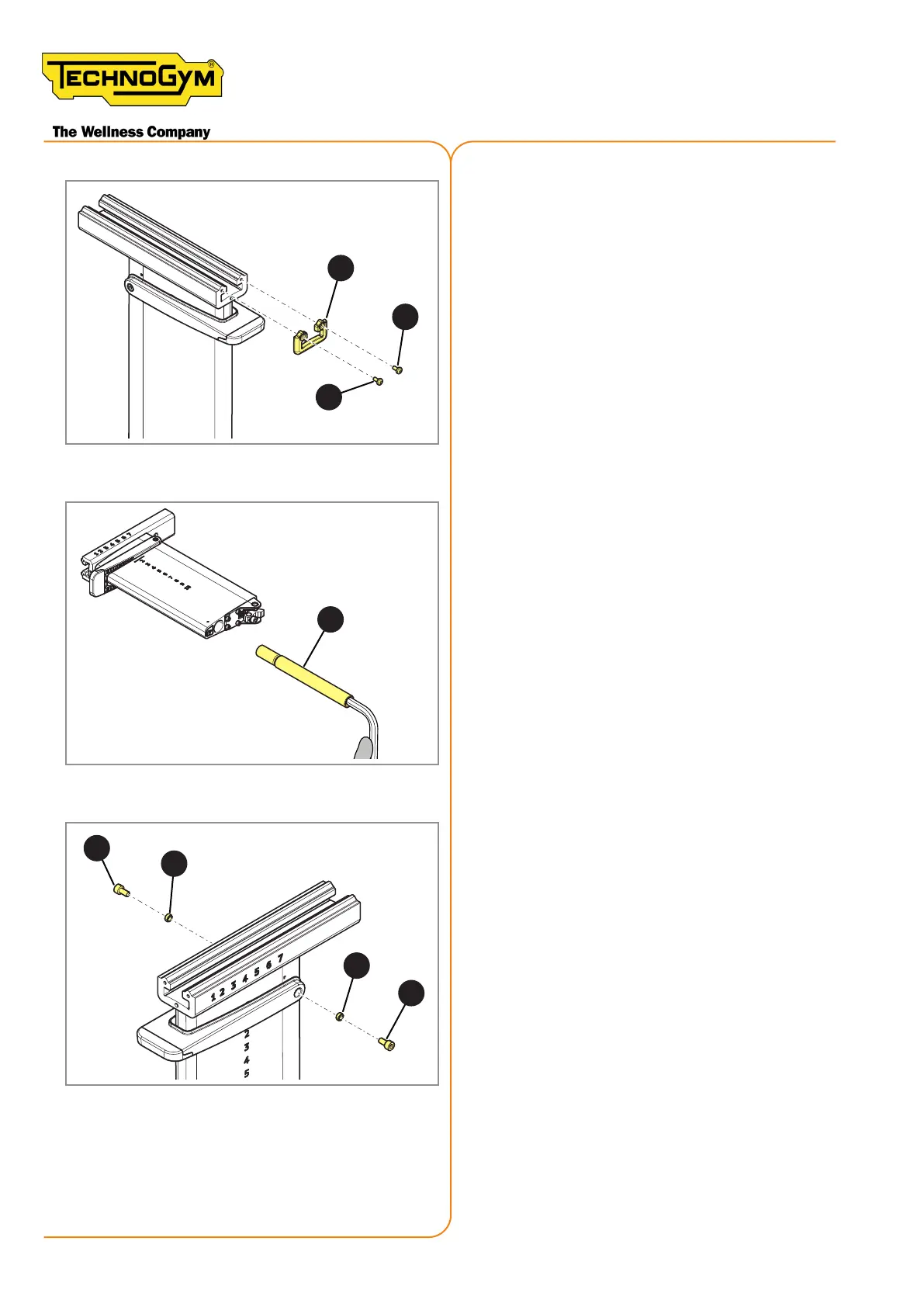

Figure 191
10. Remove the screws (10) using a medium
Phillips screwdriver.
11. Remove the other cover (11).
12
Figure 192
12. Remove the rod (12) with a 12 mm Allen
wrench.
14
13
13
14
Figure 193
13. Remove the screws (13) and spacers (14),
with a 3 mm Allen wrench.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 178
