Technogym Group Cycle D92 - Page 184

1
2

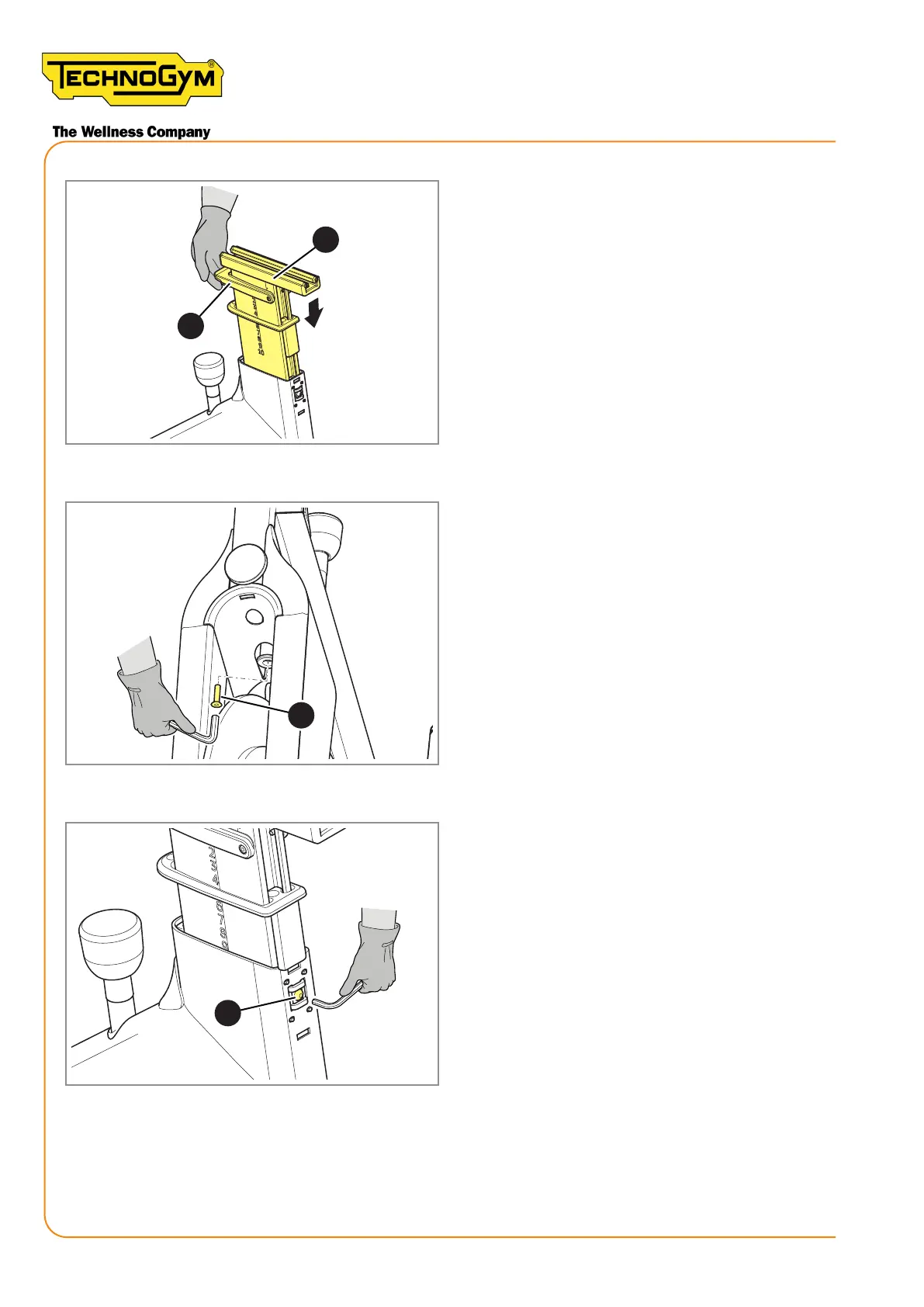

Figure 203
3. Press the lever (1) and adjust the vertical
position of the post (2) until it is in posi-
tion “4”.
3
Figure 204
4. Insert the limit into the rod.
5. Tighten the screw (3) with a 4 mm Allen
wrench.
5
Figure 205
6. Adjust the screw (5) with a 3 mm Allen
wrench, to eliminate any play.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 184
